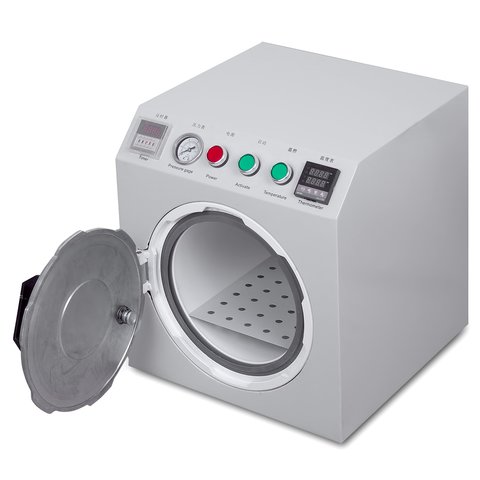

LCD Module Gluing Machine AS 2030, (for LCDs up to11", autoclave )

Technical Specifications

Note! The compressor is not included in the package.

Operating Principles

• Connect the compressor to the device.
• Open the chamber door, put the display module there, close the door.
• Press the red Power button to turn the device on.
• Set the temperature of 40-60 °C. The temperature settings depends on the model of the display module.
• Turn the compressor on and set the pressure of 7 Bar.
• Set the time (approximately 15-30 min) depending on the amount of air bubbles.
• Press the green Start button to launch the gluing process.
• Warning! Do not open the device when it is working under pressure!
• When the gluing process is finished, the device automatically will release pressure. If it didn't happen, then turn the black rotary switch to the right to the Exh mark.
• The display and the glass are bonded. Now the LCD module can be installed in a cell phone, smartphone or tablet.

Package Contents

• Device — 1 pc.
• Power cable — 1 pc.
• Filter for compressor — 1 pc.
• Metal stand — 1 pc.

LCD module gluing machine characteristics:

• For LCDs up to11"

• Autoclave
