Insulation Resistance Tester UNI-T UT512D

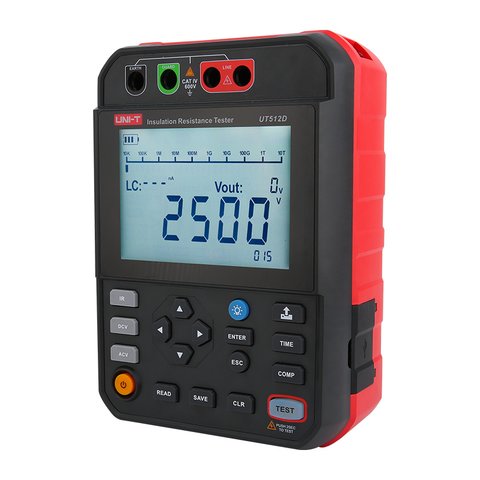

Insulation Resistance Tester UNI-T UT512D Preview 1

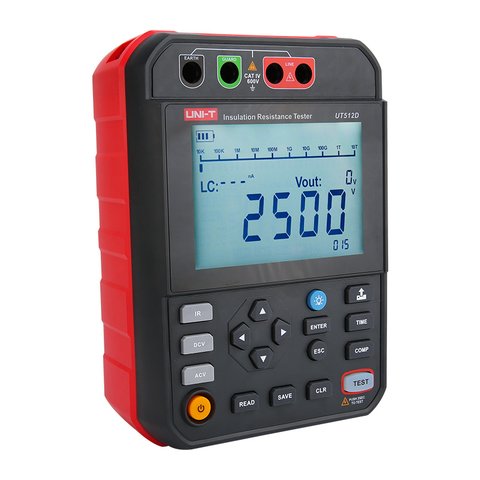

Insulation Resistance Tester UNI-T UT512D Preview 2

4 (2)

4.5 kg Warranty: 24 months

Digital high-voltage insulation resistance tester, designed with multiple ranges including 250V, 500V, 1000V, 2500V. Data storage: 999 sets.

Price coming soon

Impossible to estimate the shipping cost

UNI-T UT512D is a digital high-voltage insulation resistance tester, designed with multiple ranges including 250V, 500V, 1000V and 2500V, each with voltage fine-adjusted at a step of 10%. The tester can store 999 groups of data, which can be transferred to personal computer via USB cable or in real time. This is an easy-to use instrument that is suitable for measuring and servicing power equipment and power supply circuits.

Features

Insulation resistance, load current, DC/AC voltages measurement functions
Data upload function to enable uploading data to computer via USB cable for data analysis
Low battery indication
Data storage: 999 sets
9999-digit backlit LCD
Polarization index measurement function
Over-range indication.
Resistance comparison function (COMP)
Timer testing mode

Technical Specifications

Function		UT512D	UT512E
Function		Range		Accuracy
Insulation Resistance	250 V	<0.25 MΩ	<0,25 MΩ	reference only
		0.25 MΩ ~ 4.99 GΩ	0.25 MΩ ~ 4.99 GΩ	±(5%+5)
		5.00 GΩ ~ 24.9 GΩ	5.00 GΩ ~ 49.9 GΩ	±(20%+10)
		25.0 GΩ ~ 100 GΩ	50.0 GΩ ~ 250 GΩ	reference only
	500 V	<0.50 MΩ	<0.50 MΩ	reference only
		0.50 MΩ ~ 9.99 GΩ	0.50 MΩ ~ 9.99 GΩ	±(5%+5)
		10.0 GΩ ~ 49.9 GΩ	10.0 GΩ ~ 99.9 GΩ	±(20%+10)
		50.0 GΩ ~ 200 GΩ	100 GΩ ~ 500 GΩ	reference only
	1000 V	<1.00 MΩ	<1.00 MΩ	reference only
		1,00 MΩ ~ 19.9 GΩ	1.00 MΩ ~ 19.9 GΩ	±(5%+5)
		20,0 GΩ ~ 99.9 GΩ	20.0 GΩ ~ 199 GΩ	±(20%+10)
		100 GΩ ~ 400 GΩ	200 GΩ ~ 1.00 TΩ	reference only
	2500 V	<2,50 MΩ	<2.50 MΩ	reference only
		2.50 MΩ ~ 49.9 GΩ	2.50 MΩ ~ 49.9 GΩ	±(5%+5)
		50.0 GΩ ~ 249 GΩ	50.0 GΩ ~ 499 GΩ	±(20%+10)
		250 GΩ ~ 1.00 TΩ	500 GΩ ~ 2.50 TΩ	reference only
Output Voltage		Stepping Voltage Range
	250 V	350 / 275 / 300 V		Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range; Display accuracy: ±(10% read+10V) Output accuracy: ±(0%~20%)
	500 V	300 / 350 / 400 / 450 / 500 / 550 / 600 V
	1000 V	500 / 600 / 700 / 800 / 900 / 1000 / 1100 / 1200 V
	2500 V	1250 / 1500 / 1750 / 2000 / 2250 / 2500 V
DC Voltage		30 ~ 1000 VDC		±(3%+5)
AC Voltage		30 ~ 750 VAC, 50 Hz/60 Hz		±(3%+5)
Current		0.01 nA ~ 3.5 mA	0.01 nA ~ 5 mA
Short-circuit Current		about 3.5 mA	about 5 mA
Capacitance Testing		–	0.01 µF ~ 2.0 µF	±(15%+3)
Low Resistance		–	0.1 ~ 600 Ω	±(2%+10)
Features
PI Test		automatic display		√
DAR Test		automatic display		√
Timing Measurement				√
Monitoring Function		Monitor the voltage of measured object and the discharge state after testing		√
Timer Testing		Record testing time automatically Timing range: 0s～99 m and 59 s		√
Storage Function				999 sets
Data Transmission		Upload testing data to computer via USB cable		√
Low Battery Indication				√
Auto Power Off				√
Backlight		√
General Specifications
Power		Alkaline battery LR14 × 8 pcs.	Lithium battery 14.8 V, 5200 mAh
Net Weight		1.8 kg (including batteries)
Dimensions		238 mm × 166 mm × 90.5 mm
CAT Rating		CAT Ⅳ 600V
