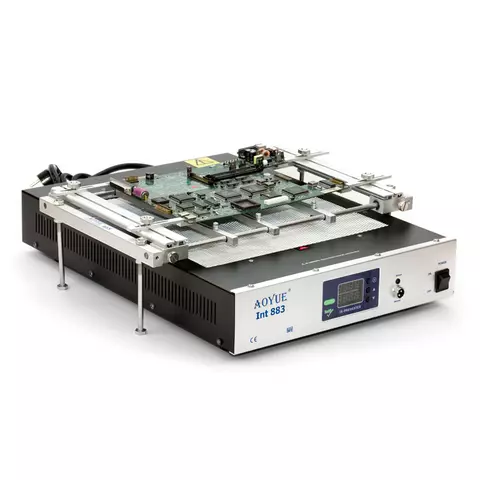

Infrared Preheater AOYUE Int 883
id: 844264
Infrared Preheater AOYUE Int 883
General information
Warranty
USD 315.00
General information
28.2 kg 220 V Warranty: 12 months
This infrared preheater is designed for lead free hot air and infrared soldering ensuring precise and safe soldering process.
USD 315.00
Buy wholesale and save
AOYUE Int 883 Infrared Preheater is designed for lead free hot air and infrared soldering. This infrared preheater uses advanced functions to control temperature and ensure precise and safe soldering process.
Manuals
Download AOYUE Int 883 Infrared Preheater user manual
Features
- Enhanced preheating area prevents warping on larger boards
- High power heating element reduces waiting time for the necessary working temperature
- Closed loop temperature control allows accurate temperature feedback
- The top and bottom pre-heaters are equipped with three sensors for monitoring the temperature
- The advanced board holder fits various types of the boards
- The duration and temperature can be stored in six programmable reworking profiles
- Safe digital control system guarantees maximum performance
- The preheater is hot air and infrared top heating compatible
- Built-in overheat protection
Technical Specifications
| Model | Int 863 | Int 883 |
|---|---|---|
| Voltage input | 220 V | |
| Power consumption | 850 W | 1500 W |
| Heater type | Infrared heating | |
| Effective preheating area | 250 × 200 mm | 310 × 310 mm |
| Temperature setting | 50 ºC – 400 ºC | |
| Dimensions | 450 × 260 × 80 mm | 520 × 370 × 100 mm |
| Weight | 3 kg | 5 kg |
Package Contents
- AOYUE Int 883 infrared preheater
- Temperature sensor
- X-Y table
- Instruction manual
Preheater type:
- Infrared (quartz)
Preheater heating area:
- 310 × 310 mm
