Infrared BGA Rework Station ACHI IR 12000
54 kg 220 V Warranty: 6 months
Multi-function semi automatic infrared soldering system with embedded industrial PC. Power: 3650 W. 3 heating areas.
Discontinued
Discontinued
Impossible to estimate the shipping cost

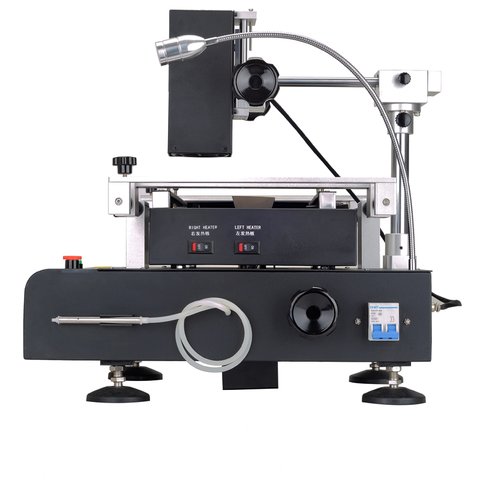

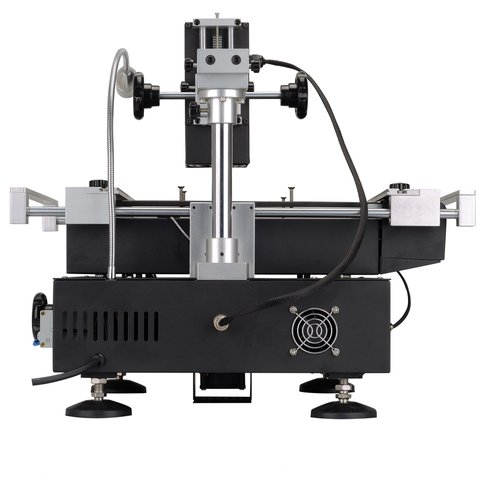

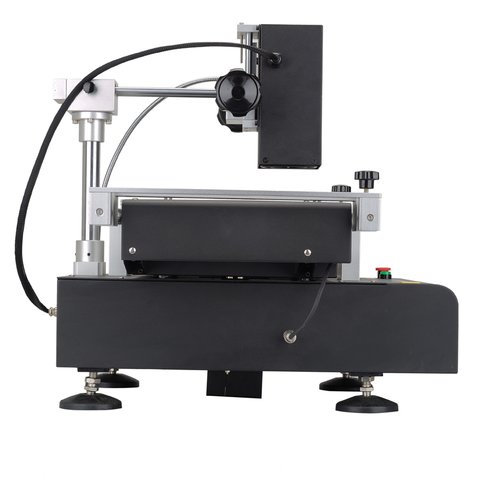

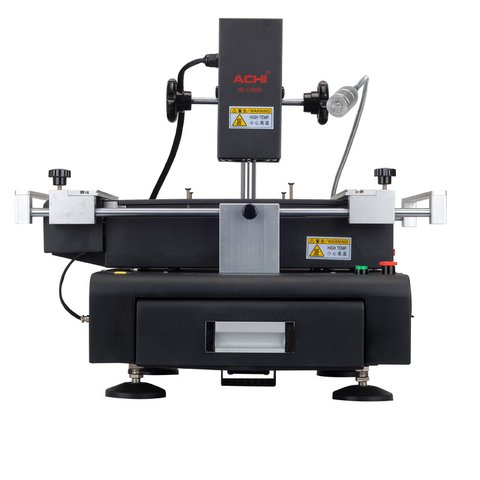

ACHI IR-12000 is a multi-function semi automatic infrared soldering system with embedded industrial PC.

Features

  • IR+Hot Air (2-in-1) combined BGA machine.

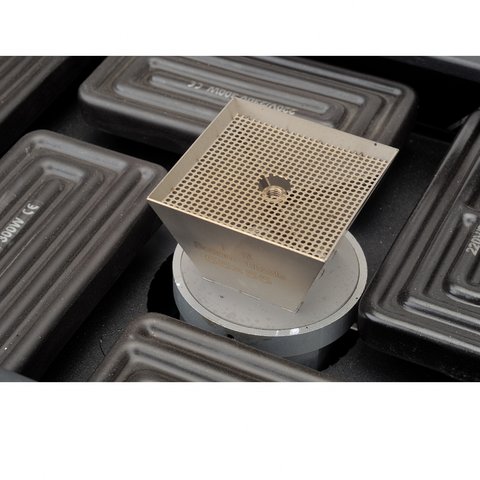

  • 3 heating areas: top IR heater; bottom hot air heater + IR preheater.

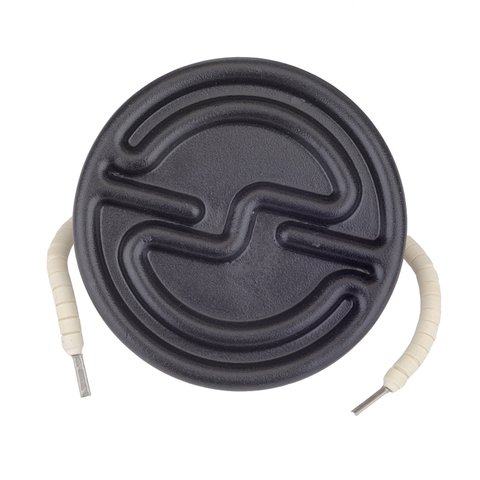

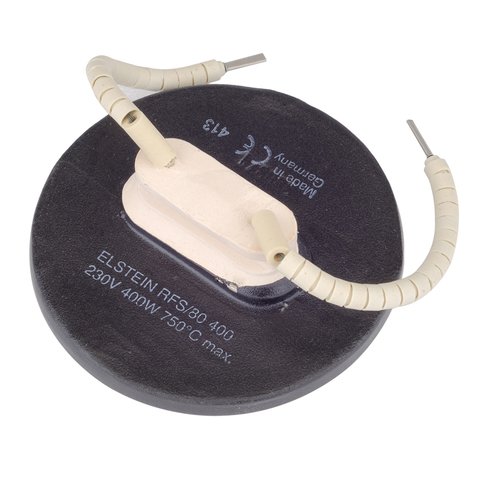

  • Top ceramic heater (Elstein RFS/80-400) imported from Germany.
  • There are 6-8 levels of variable and constant temperature controls.
  • An advanced OMEGA K-type thermocouple.
  • Uses high technology of closedloop temperature control and automatic temperature adjustment system with PLC and temperature module to enable precision temperature control of ±2 deg C.

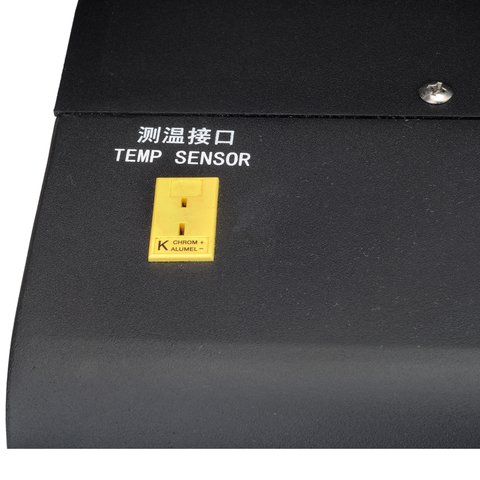

  • An external temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
  • Drawer door with high definition color touch screen operation panel.
  • Real time settings and actual temperature profile display allow to analyze and correct the parameters.
  • Adjustable height of bottom hot air heater.

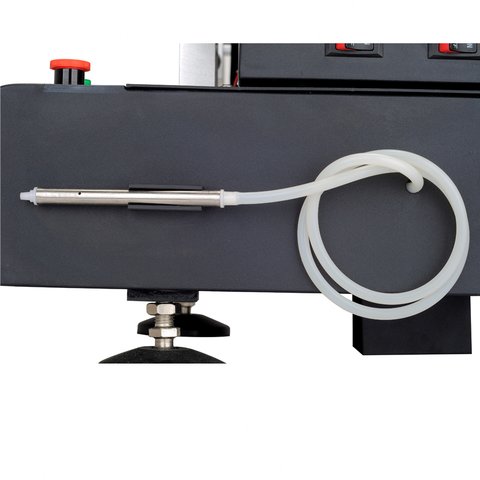

  • Internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
  • Equipped with emergency switch and automatic power to avoid accident in case of an emergency.

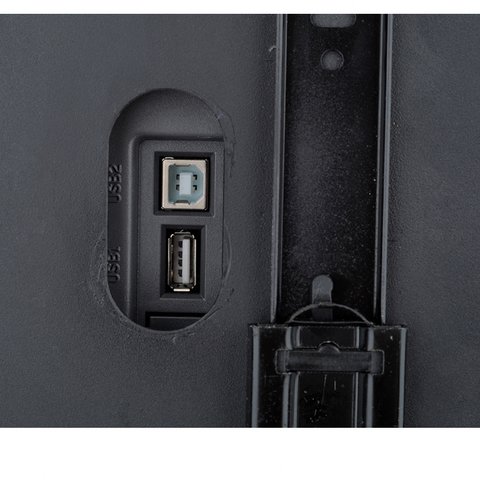

  • Can be connected to a computer or notebook with USB interface for upgrading software.
  • Mainboard fixation in any position.
  • Perfect for soldering and reworking of CBGA, CCGA, CSP, QFN, MLF, PGA μBGA for CBGA, CCGA, CSP, QFN, MLF.

Technical Specifications

Upper heater type Ceramic ELSTEIN RFS/80
Upper heater power 400 W
Upper heater size 80 × 80 mm
Bottom heater type Hot Air
Bottom heater power 600 W
Bottom heater size 55 × 55 mm
Preheater type Ceramic
Preheater power 2400 W
Preheater size 350 × 210 mm
Max. heating temperature 750°C
Display 7" MCGS Touch Screen System
Power Supply 220 V

Articles and Reviews

Infrared Rework Stations: Technological Benefits and ACHI Brand Review

Comparative Specifications

  ACHI IR-6000 ACHI IR-6500 ACHI IR-PRO-SC ACHI IR-12000
Rated Capacity 1300 W 1300 W 2850 W 3650 W
Heating Zones Top, Pheheating Top, Pheheating Top, Pheheating Top, Bottom, Pheheating
Upper Heater Power 400 W 400 W 450 W 400 W
Upper Heater Size 80 × 80 mm 80 × 80 mm 80 × 80 mm 80 × 80 mm
Preheating Power 800 W 800 W 2400 W 3200 W
Preheating Size 180 × 180 mm 180 × 180 mm 240 × 240 mm 350 × 210 mm
Settings Storage 10 groups 10 groups 10 groups Unlimited
Settings Display PC PC PC Built-in 7" HD touch screen

Package Contents

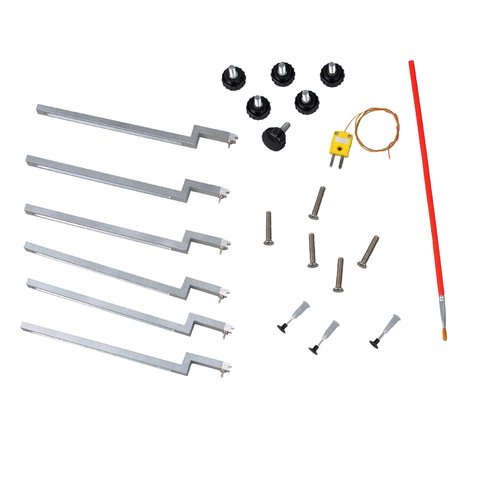

  • ACHI IR-12000 Infrared BGA Rework Station — 1 pc.
  • PCB holder table — 1 pc.
  • Thermocouple with mounting — 1 pc.
  • PC connection data cable — 1 pc.
  • User manual — 1 pc.
  • CD with software and demo video — 1 pc.

BGA rework systems bottom heater size:

  • 35 x 21 cm

BGA rework systems control type:

  • Embed PC

BGA rework systems upper heater type:

  • Ceramic

BGA rework systems bottom heater type:

  • Mixed

BGA rework systems upper heater power:

  • 600 W

BGA rework systems total power:

  • 3650 W
