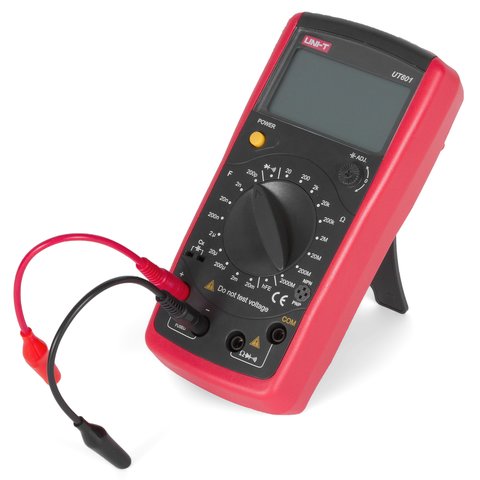

Inductance Capacitance Meter UNI-T UT601
id: 886897
id: 886897 0.6 kg Warranty: 24 months
A digital multimeter for resistance & capacitance measurements, and for continuity, diode and transistor tests.
Add to wishlist
Compare
Compare
Buy wholesale and save
Overview
Warranty
Overview
UNI-T UT601 measures resistance and capacitance, and tests continuity, diodes and transistors.
Features
- Functions:
- resistance
- capacitance
- continuity test (with buzzer)
- diode test
- transistor test
- Manual ranging
- Low battery indication
Technical Specifications
| Display | 3½ (1999) digit LCD, 61 × 32 mm | |
| Resistance | Range | 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ / 2000 MΩ |
| Accuracy | ±(0.8%+1) | |
| Capacitance | Range | 200 pF / 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF / 20 mF |
| Accuracy | ±(1%+5) | |
| Sampling rate | 2-3x/s | |
| Power | 9V battery: NEDA 1604, 6F22 or 006P | |
| Dimensions (H × W × D), mm | 172 × 83 × 38 | |
| Weight, g | 312 | |

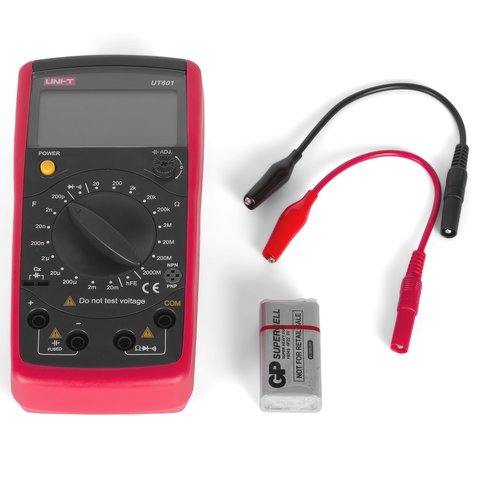

Package Contents
- UNI-T UT601 Inductance Capacitance Meter — 1 pc.
- Test clip — 1 set.
- User manual — 1 pc.
Note! Batteries are not included in the package.
Warranty
ID: 886897
Inductance Capacitance Meter UNI-T UT601
USD 25.64
