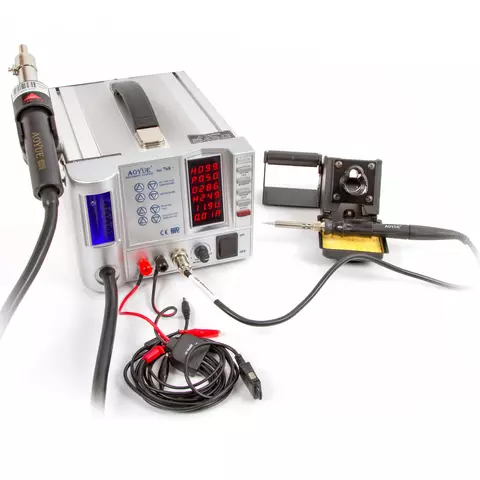

Hot Air Soldering Station AOYUE 768+
id: 854207
Hot Air Soldering Station AOYUE 768+
General information
Warranty
USD 208.00
General information
6.8 kg 220 V Warranty: 12 months
3-in-1 microprocessor-controlled ESD safe repairing system: combines the functions of a Hot Air Gun, a Soldering Iron (65 W) and Electric Source.
USD 208.00
Buy wholesale and save
AOYUE 768+ combines the function of a Hot Air Gun, a Soldering Iron and Electric Source. AOYUE 768+ is a sufficient system to perform various reworking tasks.
Features
- Digital display of hot air gun and soldering iron temperature
- Touch type panel controls
- Stable power supply of 1.5A / 0-15V
- Programmable auto reworking time from 20 to 9999 seconds
- Automatic cooling function
- Compatible with various type of air nozzles
- Compatible with different soldering iron tips
Application
- Complete range of rework applications in medium and large scale service centers
- Mobile and radio systems devices repair
- Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair
- LAN, network nodes, and military communications systems equipment repair
Technical Specifications
| General Specifications | |||
|---|---|---|---|
| Power Input | 220 V / 50 Hz | ||
| Main Station Dimensions | 188 x 126 x 250 mm | ||
| Soldering Iron Specifications | |||
| Power Consumption | 65 W | ||
| Temperature Range | 200 °C - 480 °C | ||
| Heating Element | ceramic heater | ||
| Hot Air Gun Specifications | |||
| Power Consumption | 550 W | ||
| Temperature Range | 100 °C - 480 °C | ||
| Heating Element | metal heating core | ||
| Pump Type | diaphragm pump | ||
| Air capacity | 23 L/min (max) | ||
| Power Supply Specifications | |||
| Total Current | 1.5 A | ||
| DC Output Voltage | 0-15 V | ||

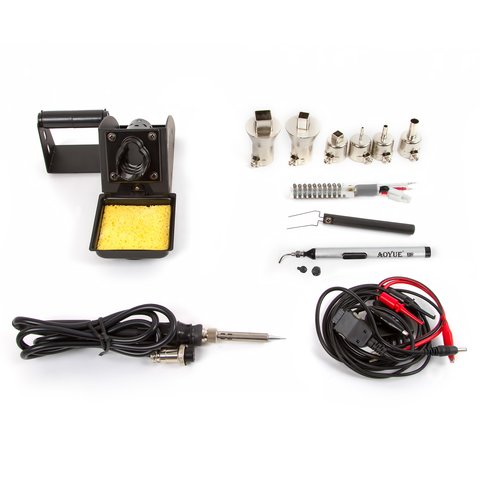

Package Contents
- AOYUE 768+ main module (1 pc.)
- Hot air gun (1 pc.)
- Air nozzles (1124, 1130, 1197, 1313, 1818)
- Hot air gun holder (1 pc.)
- Soldering iron (1 pc.)
- Soldering iron holder (1 pc.)
- Spare soldering iron heating element (1 pc.)
- Vacuum suction pen (1 pc.)
- IC extractor (1 pc.)
- Power cord (1 pc.)
Compatible Replacement Air Nozzles
- Air Nozzles Set AOYUE BGA
- Air Nozzles Set AOYUE PLCC
- Air Nozzle AOYUE 1191
- Air Nozzle AOYUE 1325
- Air Nozzle AOYUE 1186
- Replacement Air Nozzle AOYUE 2828N
- Replacement Air Nozzle AOYUE 4141N
- Replacement Air Nozzle AOYUE 1137
- Replacement Air Nozzle AOYUE 3636N
- Replacement Air Nozzle AOYUE 3939N
- Air Nozzle Set SUNKKO
Compatible Soldering Tips
| Conical Soldering Tips | ||
|---|---|---|
 AOYUE T-0.5C |
 AOYUE T-0.8C |
 AOYUE T-B |
 AOYUE T-I |
 AOYUE T-LB |
 AOYUE T-S4 |
 AOYUE T-S8 |
 AOYUE T-SB |
 AOYUE T-SI |
| Bevel Type Soldering Tips | ||
 AOYUE T-1C |
 AOYUE T-1.5CF |
 AOYUE T-1.5CM |
 AOYUE T-2C |
 AOYUE T-2CF |
 AOYUE T-2CM |
 AOYUE T-3C |
 AOYUE T-3CF |
 AOYUE T-3CM |
 AOYUE T-4C |
 AOYUE T-4CF |
 AOYUE T-4CM |
 AOYUE T-S6 |
 AOYUE T-S7 |
|
| Chisel Type Soldering Tips | ||
 AOYUE T-0.8D |
 AOYUE T-1.2D |
 AOYUE T-1.2LD |
 AOYUE T-1.6D |
 AOYUE T-2LD |
 AOYUE T-2.4D |
 AOYUE T-3.2D |
 AOYUE T-3.2LD |
 AOYUE T-S3 |
 AOYUE T-S9 |
||
| Bent Type Soldering Tips | ||
 AOYUE T-0.2RB |
 AOYUE T-1.8H |
 AOYUE T-H |
| Knife Type Soldering Tips | ||
 AOYUE T-K |
||
| Soldering Tips for SMD | ||
 AOYUE T-R |
 AOYUE T-RT |
|
Hot air soldering station pump type:
- Compressor
Hot air soldering station design type:
- Desktop
Hot air soldering station vacuum pick-up tool:
- Non-available
Hot air soldering station desoldering pump:
- Non-available
Hot air soldering station power supply:
- Available
Hot air soldering station soldering iron power:
- 65 W
Hot air soldering station hot air gun power:
- 550 W
Hot air soldering station desoldering gun:
- Non-available
