Selectable test voltages of 50V, 100V, 250V, 500V and 1000V. Measuring resistance levels in the ranges from 0.01MΩ up to 20.0GΩ.
USD 181.50
Buy wholesale and save

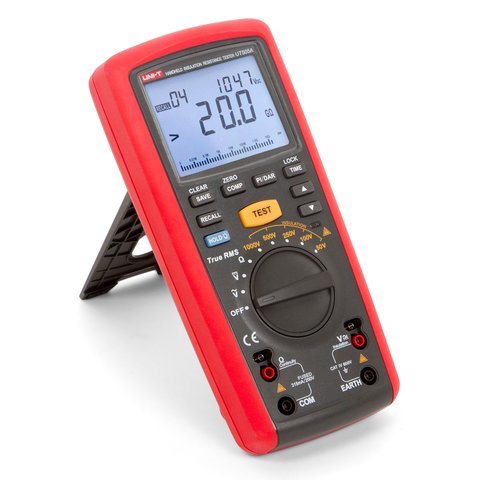

UNI-T UT505A Handheld Insulation Resistance Tester with high accuracy, stable performance and a wide range of functions.
Features
- Handheld, portable design with large-size screen
- Easy to use
- True RMS
- Backlight
- Measure insulation resistance up to 20.0GΩ
- Selectable test voltages: 50V, 100V, 250V, 500V and 1000V
- PASS/FAIL compare function
- DAR and polarisation index function
Video
Technical Specifications
| Function | Range | Best Accuracy | |
|---|---|---|---|
| Insulation Resistance (Ω) | Test Voltage | 50V/100V/250V/500V/1000V | 0%~10% |
| 50 V | 0.1 MΩ ~ 50.0 MΩ | ±(3%+5) | |
| 100 V | 0.1 MΩ ~ 100.0 MΩ | ±(3%+5) | |
| 250 V | 0.01 MΩ ~ 200.0 MΩ | ±(1.5%+5) | |
| 500 V | 0.01 MΩ ~ 500 MΩ | ±(1.5%+5) | |
| 1000 V | 0.1 MΩ ~ 2000 MΩ | ±(1.5%+5) | |
| 2.0 GΩ ~ 9.9 GΩ | ±(10%+3) | ||
| 10.0 GΩ ~ 20.0 GΩ | ±(20%+10) | ||
| Load Current | 50 V (R = 50 KΩ) 1 mA | 0%~10% | |
| 100 V (R = 100 KΩ) 1 mA | 0%~10% | ||
| 250 V (R = 250 KΩ) 1 mA | 0%~10% | ||
| 500 V (R = 500 KΩ) 1 mA | 0%~10% | ||
| 1000 V (R = 1 MΩ) 1 mA | 0%~10% | ||
| Short Circuit Current | <2mA | ||
| Low Resistance (Ω) | 0.01 Ω ~ 20.00 KΩ (about 5.0V/>200mA) | ±(1.5%+3) | |
| DC Voltage (V) | 0.0 V ~ 600.0 V | ±(2%+3) | |
| AC Voltage (V) | 0.0 V ~ 600.0 V (45 Hz ~ 1 KHz) | ±(2%+3) | |
| General Characteristics | |||
| Power | 1.5 V Batteries (LR6) × 6 | ||
| LCD Size | 78 mm x 59 mm | ||
| Product Net Weight | 630 g | ||
| Product Size | 103 mm x 225 mm x 59 mm | ||

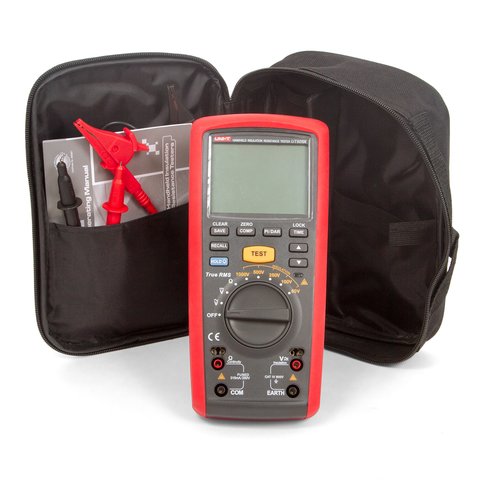

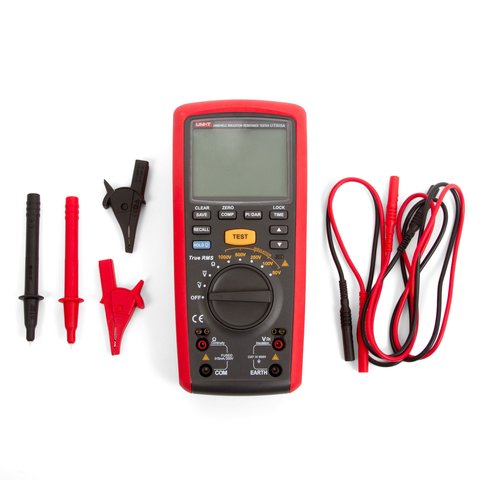

Package Contents
- UNI-T UT505A Insulation Tester — 1 pc.
- Test Lead — 2 pcs.
- Alligator Clip — 2 pcs.
- Test Probe — 2 pcs.
- 1.5V AA Alkaline Battery — 6 pc.
- User Manual — 1 pc.
- Carrying Case — 1 pc.
Insulation tester type:
- Digital
Insulation tester Max. voltage:
- 1000 V
Insulation tester Max. measurable resistance:
- 20 000 MΩ
