Handheld Fusion Splicer Jilong KL-500E
id: 894445
Handheld Fusion Splicer Jilong KL-500E
General information
Warranty
USD 1259.00
General information
8 kg
Availability in stock:
HK
Warranty: 12 months 9 seconds splice time and 30 seconds heat time. Core-core or clad-clad alignment, PAS technology. Designed for splicing SM, MM, NZDS optical fibers.
USD 1259.00
Note! This item is shipped within 10 working days.

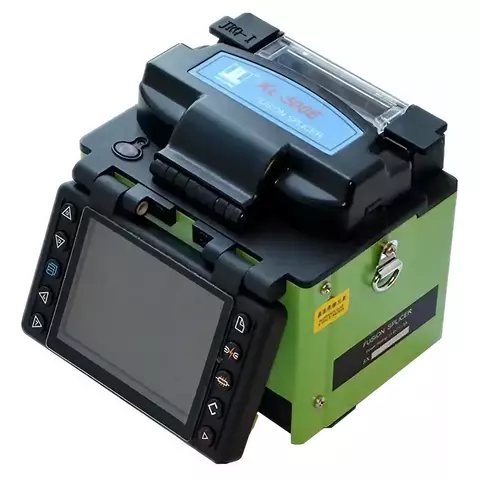

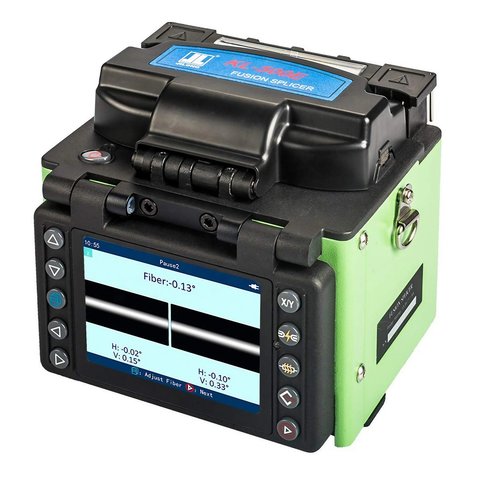

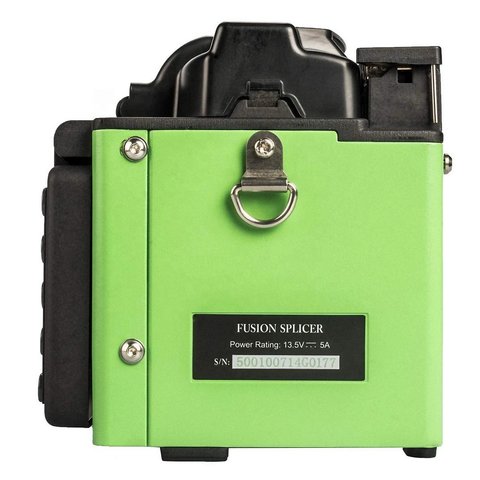

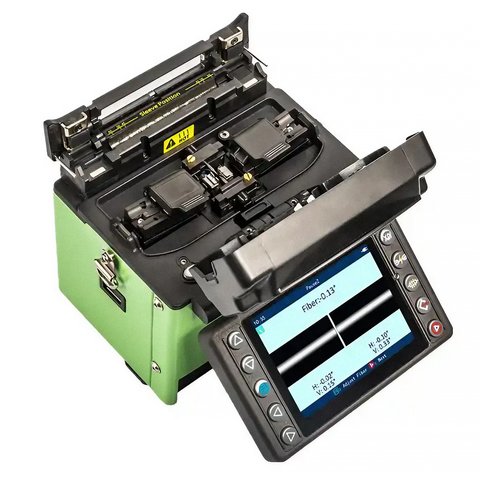

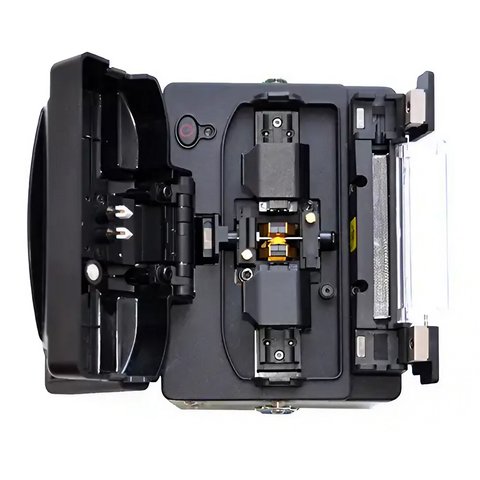

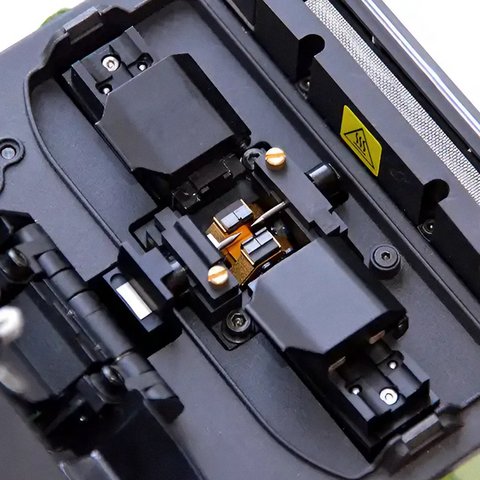

Jilong KL-500E is a handheld and portable fusion splicer. Splicing time: 9 seconds; heating time: 30 seconds. Core-Core or Clad-Clad Alignment. Applicable fibers are SM, MM, DS, NZDS.
Features
- Core-Core or Clad-Clad Alignment.
- Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
- Single view & simultaneous view of X or Y axes.
- Display: fiber cleaved angle, fiber offset angle, inside temperature, ambient temperature, heater temperature, air pressure and battery voltage.
- Image turn over.
- Auto power off.
- Device's weight is only 1.2 kg (without battery).
- 3.5 inch color LCD.
- Clear fiber core displaying.
- Splicing time: 9 seconds; heating time: 30 seconds.
- Intuitive interface and smart menu.
- SOC and 3-in-one fiber clamp available.
- Software upgrade via USB interface.
Technical Specifications
| Applicable fibers | SM, MM, DS, NZDS |
| Fiber diameter | Cladding diameter: 80-150 μm |
| Fiber count | Single |
| Fiber cleaved length | 12~16 mm (coating diameter: 250 µm) |
| Average splice loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Typical splicing time | Typical 9 sec (standard SM fiber) |
| Return loss | >60 dB |
| Splicing mode | Auto, Calibrate, Normal, Special |
| Fiber aligning method | Meticulous, Core, Clad, Manual |
| Splicing program | 53 (templet), 40 (user) |
| Tube heating program | 9 (templet), 24 (user) |
| Tube typical heating time | Typical 30 sec |
| Applicable sleeves | 60 mm, 40 mm |
| Storage of splice result | 4000 results, 20 parameter per result |
| Fiber image magnification | 120X (X or Y view)，60X (X and Y view) |
| Battery capacity | typical 300 cycles (splicing and heating) |
| Display | 3.5 inch color LCD |
| Tension test | 2 N |
| Electrode life | 2500 splicing cycles |
| Interface | USB |
| Power supply | AC 100-240V with AC adapter Inner Li-battery (5200 mAh) DC 13.5 V |
| Operating condition | 0 ~ 5000 m above sea level; –10 ~ 50°C; max wind velocity of 15 m/s |
| Dimensions | 125 mm × 105 mm × 113 mm |
| Weight | 1.3 kg with battery |
Package Contents
- Handheld Fusion Splicer Jilong KL-500E — 1 pc.
- Fiber Cleaver — 1 pc.
- Fiber Stripper — 1 pc.

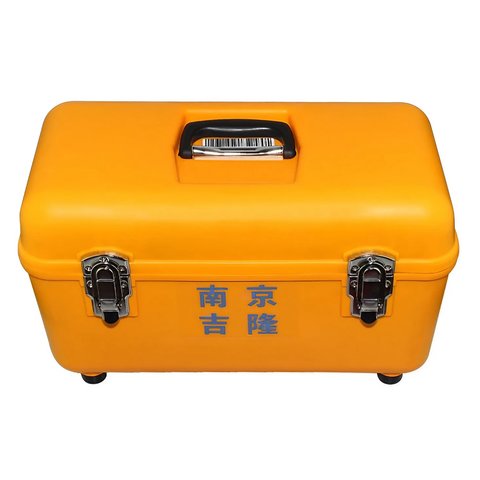

- Carrying Case — 1 pc.
- Spare Electrodes — 2 pcs.
- Cooling Tray — 1 pc.
- Cleaning Tools — 1 set
- Power Module — 1 pc.
- Manual — 1 pc.
- Power Supply Cord — 1 pc.
- USB Cable — 1 pc.
