Fusion Splicer ORIENTEK T40
id: 848308
Fusion Splicer ORIENTEK T40
General information
Warranty
USD 3200.00
General information
13 kg 110, 220 V Warranty: 12 months
Core-to-core alignment fusion splicer for SM, MM, DS, NZDS optical fibers. Splice time: 8 sec., heating time: 25 sec. Splicing kit includes: Fusion Splicer, Fiber Cleaver, Stripper and more in a carrying case with a shoulder strap.
USD 3200.00
OrienTek T40 is a core-to-core alignment digital fusion splicer with 8 seconds splicing time, 25 seconds tube heating time designed for splicing SM, MM, NZDS, EDF optical fibers.
The OrienTek T40 kit includes all the necessary accessories: Fusion Splicer, Fiber Cleaver, Stripper and many more in a carrying case with a shoulder strap.
Features
- The advanced core to core fiber profile alignment system.
- Simultaneous displaying of X/Y axes.
- Magnification up to 304 times.
- 8 sec. splicing time.
- 25 sec. tube heating time.
- High-resolution true color 5.7-inch LCD display.
- Real time calibrating system.
- Four display modes, fiber core visible.
- Storing 6000 groups of splicing results.
- USB interface for software updates and transferring results to external devices.
- Built-in high capacity battery: supports 220 splicing and heating cycles (corresponds to one day of operation).
- Long electrode lifetime: up to 4000 cycles.
- Three splicing modes: auto, semi-auto, manual.
- Closes splicing shield automatically.
- Closes heater lid automatically.
- Interfaces: USB, VGA.
- One year warranty.
Technical Specifications
| Applicable Fibers | SM, MM, NZDS, EDF |
| Average Splice Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (NZDS), 0.04 dB (EDF) |
| Return Loss | ≥ 60 dB |
| Tension Test | 2.0 N (200 gf) Standard |
| Splicing Programs | 50 groups |
| Protection Sleeve Length | 20 mm, 40 mm, 60 mm |
| Battery | 160 splice & heat cycles |
| Electrodes Lifetime | 4000 times |
| Language | English, Japanese, Chinese, German, Spanish, Russian, Korean |
| Environmental Conditions | |
|---|---|
| Operation Temperature | -10 ～ +50℃ |
| Relative Humidity | 0 ～ 95% |
| Altitude | 0 ～ 5000 m |
| Power Supply | |
| AC | 100 ～ 240 V, 50/60 Hz |
| DC | 13.5 V, 4.5 A |
| Battery | 11.1 V Li-ion |
| Mechanical | |
| Dimensions (w × d × h) | 160 × 150 × 140 mm |
| Weight | 2.3 kg (no battery) |

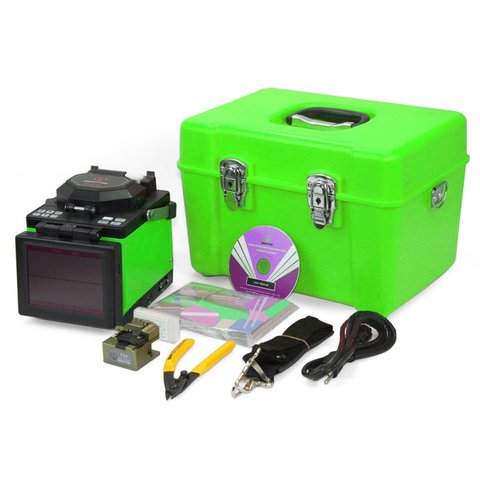

Package Contents
- OrienTek T40 Fusion Splicer — 1 pc.
- OrienTek T30 High Precision Fiber Cleaver — 1 pc.
- Three-hole Fiber Stripper — 1 pc.
- Kimwipes Lint-Wipers (280 wipers/box) — 1 pc.
- Fusion Splice Protection Sleeves — 500 pcs.
- Internal Battery — 1 pc.
- Charger — 1 pc.
- AC Adaptor — 1 pc.
- Spare Electrodes — 1 pair
- Cooling Tray — 1 pc.
- Alcohol Bottle — 1 pc.
- Blower Brush — 1 pc.
- User Guide — 1 pc.
- Instruction CD — 1 pc.
- USB Flash Disk — 1 pc.
- Carrying Case with a Shoulder Strap — 1 pc.
