Fusion Splicer ORIENTEK T35
id: 848306
Fusion Splicer ORIENTEK T35
General information
Video
Warranty
USD 2450.00
General information
Video
13 kg 110, 220 V Warranty: 12 months
Core-to-core alignment fusion splicer for SM, MM, DS, NZDS optical fibers. Splice time: 9 sec., heating time: 35 sec. Splicing kit includes: Fusion Splicer, Fiber Cleaver, Stripper and more in a carrying case with a shoulder strap.
USD 2450.00
OrienTek T35 is a core-to-core alignment digital fusion splicer with 9 seconds splicing time, 35 seconds tube heating time designed for splicing SM, MM, NZDS, EDF optical fibers.
The OrienTek T35 kit includes all the necessary accessories: Fusion Splicer, Fiber Cleaver, Stripper and many more in a carrying case with a shoulder strap.
Features
- The advanced core to core fiber profile alignment system.
- Simultaneous displaying of X/Y axes.
- Magnification up to 304 times.
- 9 sec. splicing time.
- 35 sec. tube heating time.
- High-resolution true color 5.0-inch LCD display.
- Four display modes, fiber core visible.
- Storing 6000 groups of splicing results.
- USB interface for software updates and transferring results to external devices.
- Built-in high capacity battery: supports 220 splicing and heating cycles (corresponds to one day of operation).
- Long electrode lifetime: up to 4000 cycles.
- Three splicing modes: auto, semi-auto, manual.
- Closes splicing shield automatically.
- Closes heater lid automatically
- One year warranty.
Technical Specifications
| Applicable Fibers | SM, MM, NZDS, EDF |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥ 60dB |
| Tension Test | 2.0 N (200 gf) Standard |
| Splicing Programs | 50 groups |
| Protection Sleeve Length | 20 mm, 40 mm, 60 mm |
| Battery | 160 splice & heat cycles |
| Electrodes Lifetime | 4000 times |
| Languages | Chinese, English, Japanese, German, Spanish, Russian, Korean |
| Environmental Conditions | |
|---|---|
| Operation Temperature | -10 ～ +50℃ |
| Relative Humidity | 0 ～ 95% |
| Altitude | 0 ～ 5000 m |
| Power Supply | |
| AC adaptor | 100 ～ 240 V input voltage, 50/60 Hz; 12 V, 5 A output voltage (DC) |
| DC adaptor | 12 V voltage 8 AH |
| Mechanical | |
| Dimensions (w × d × h) | 155 × 165 × 150 mm |
| Weight | 2.2 kg (no battery) |
Video

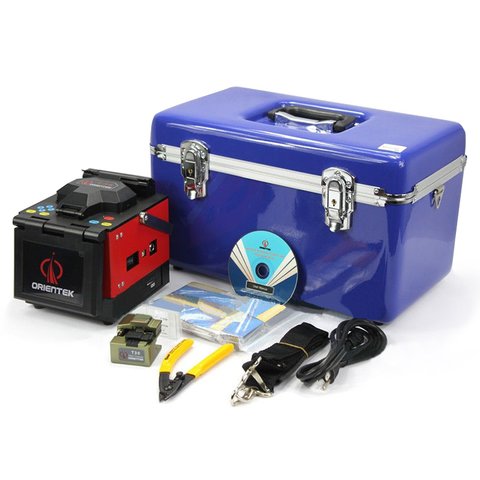

Package Contents
- OrienTek T35 Fusion Splicer — 1 pc.
- OrienTek T30 High Precision Fiber Cleaver — 1 pc.
- Miller CFS-2 Fiber Stripper — 1 pc.
- Kimwipes Lint-Wipers 280 wipers/box — 1 pc.
- Fusion Splice Protection Sleeves — 240 pcs.
- Internal Battery — 1 pc.
- Charger — 1 pc.
- AC Power Cord — 1 pc.
- Spare Electrodes — 1 pair
- Cooling Tray — 1 pc.
- Alcohol Bottle — 1 pc.
- User Guide — 1 pc.
- Instruction CD — 1 pc.
- Carrying Case with a Shoulder Strap — 1 pc.
