Fusion Splicer Jilong KL-520E
id: 894447
Fusion Splicer Jilong KL-520E
General information
Warranty
Discontinued
General information
8 kg Warranty: 12 months
Automatic fusion splicer for optic fiber splicing with core or cladding fiber alignment. Splicing time: 9 s, heating time: 16-25 s.
Discontinued

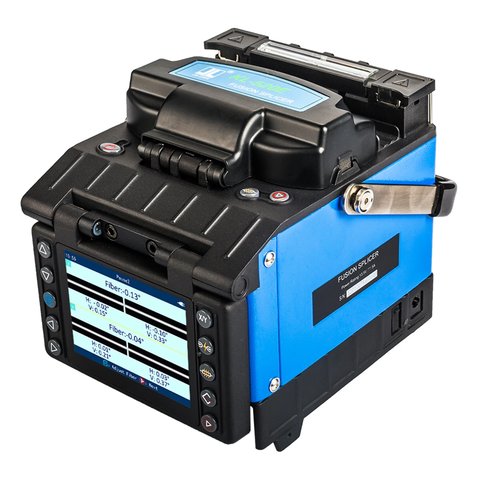

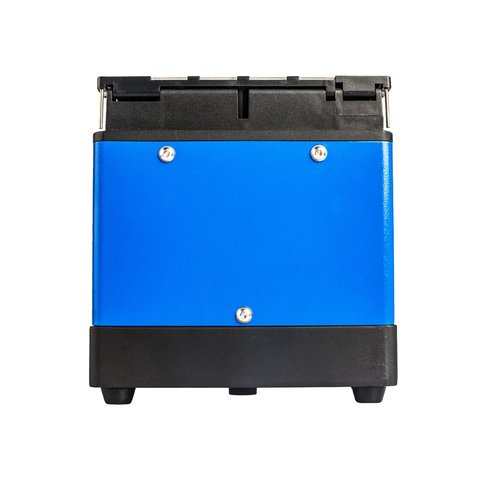

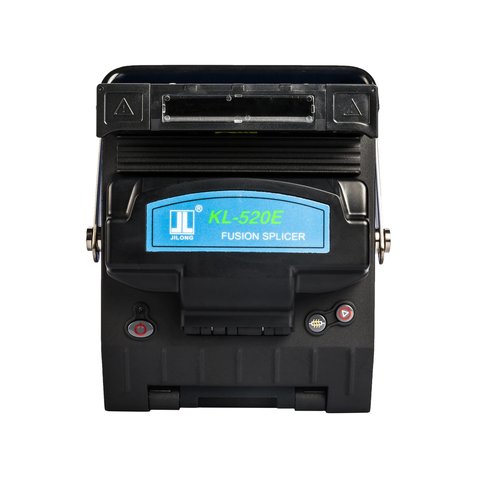

Jilong KL-520E is an automatic fusion splicer with meticulous, manual, core or cladding fiber alignment. The device is capable of splicing fiber in 9 seconds and heating a splice sleeve in 16-25 seconds.

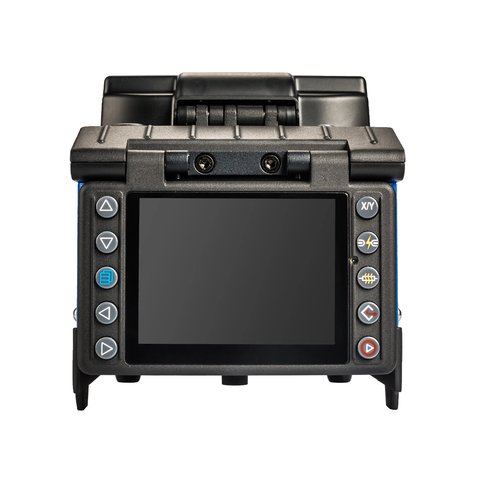

3.5-inch color LCD monitor with clear digital image displaying ensures easy and comfortable operation with Jilong KL-520E. Splicing area viewing is ensured by a single view and simultaneous view option for X or Y axes.
Features
- Core fiber alignment by PAS Technology (PAS: profile alignment system).
- Clear fiber core displaying.
- Single view & simultaneous view of X or Y axes.
- Software upgrade via USB interface.
- 3.5-inch color LCD monitor with clear digital image displaying.
- Auto check & display quality of cleaved end face.
Technical Specifications
| Applicable fibers | SM, MM, DS, NZDS |
| Fiber diameter | Cladding diameter: 80 ~ 150 µm Coating diameter: 100 ~ 1000 μm |
| Fiber count | Single |
| Fiber cleaved length | 8~16 mm (coating diameter: 250 µm) |
| Average splice loss | 0,02 dB (SM), 0,01 dB (MM), 0,04 dB (DS), 0,04 dB (NZDS) |
| Splicing time | typical 9 sec (standard SM fiber) |
| Return loss | >60 dB |
| Splicing mode | Auto, Calibrate, Normal, Special |
| Fiber alignment method | Meticulous, Core, Cladding, Manual |
| Splicing program | 53 (templet), 100 (user) |
| Heating programs | 9 (templet), 40 (user) |
| Tube heating time | 16-25 sec (typical) |
| Applicable sleeves | 60 mm, 40 mm |
| Storage of splice result | 10000 results, 24 parameters per result, 100 sets of images |
| Fiber image magnification | 120X (X or Y view)，60X (X and Y view) |
| Battery capacity | typical 300 cycles (splicing and heating) |
| Display | 3.5 inch color LCD |
| Tension test | 2 N |
| Electrode life | 2500 splicing cycles |
| Interface | USB |
| Power supply | AC 100-240V with AC adapter, DC 13.5 V Inner Li-battery (5200 mAh) |
| Operating condition | 0 ~ 5000 m above sea level; –10 ~ 50°C; max wind velocity of 15 m/s |
| Dimensions | 122 mm × 148 mm × 130 mm |
| Weight | 1.4 kg without battery 1.7 kg with battery |
Package Contents

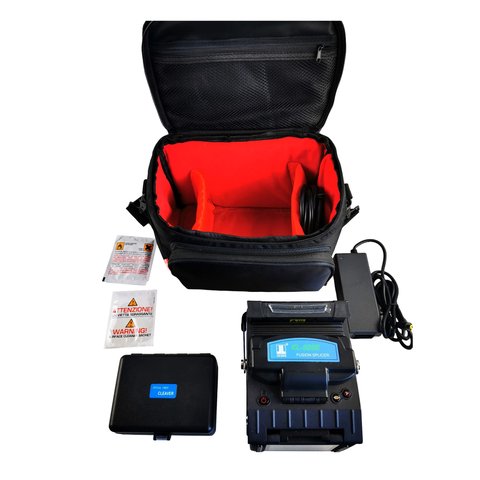

- Fusion Splicer Jilong KL-520E — 1 pc.

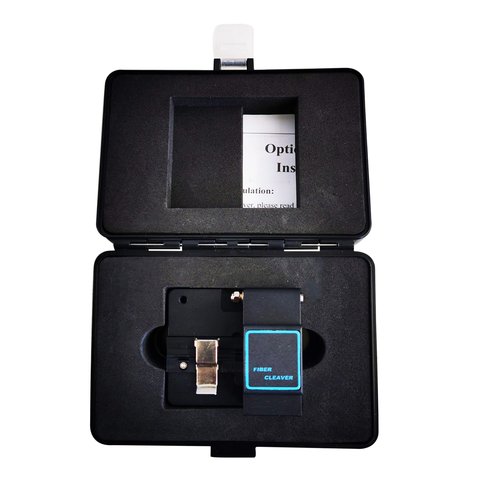

- Fiber Cleaver — 1 pc.
- Fiber Stripper — 1 pc.

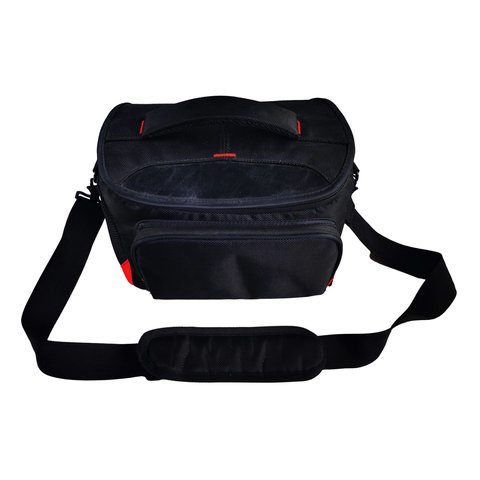

- Carrying Case — 1 pc.
- Spare Electrodes — 2 pcs.
- Cooling Tray — 1 pc.
- Cleaning Tools — 1 set
- Power Supply Cord — 1 pc.
- Manual — 1 pc.
- USB Cable — 1 pc.
