Fusion Splicer Jilong KL-360E
id: 894443
Fusion Splicer Jilong KL-360E
General information
Warranty
USD 2989.00
General information
12 kg
Availability in stock:
HK
Warranty: 12 months Automatic fusion splicer for optic fiber splicing with core or cladding fiber alignment. Splicing time: 9 s, heating time: 15 s.
USD 2989.00
Note! This item is shipped within 10 working days.

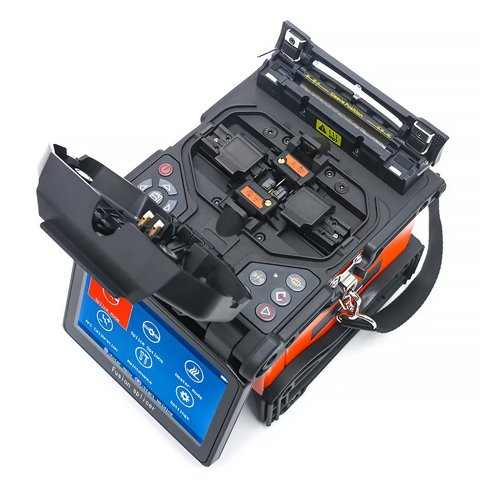

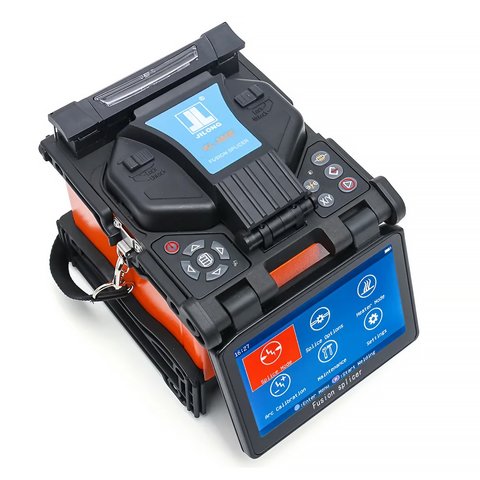

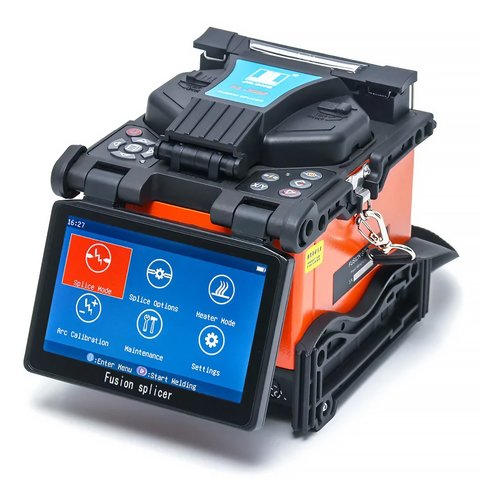

Jilong KL-360E is an automatic fusion splicer with meticulous, manual, core or cladding fiber alignment. The device is capable of splicing fiber in 9 seconds and heating a splice sleeve in 15 seconds. Jilong KL-360E is characterized by real-time & auto control of ARC power function and low splice loss control technology.

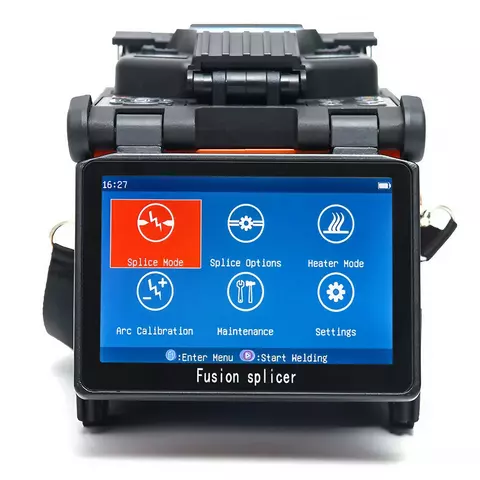

4,3-inch color LCD monitor with clear digital image displaying ensures easy and comfortable operation with Jilong KL-360E. Splicing area viewing is ensured by a single view and simultaneous view option for X or Y axes.
Features
- Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
- Clear fiber core displaying.
- Single view & simultaneous view of X or Y axes.
- Real time & auto control of ARC power.
- Auto environmental adaptation.
- Auto oxidized electrodes adaptation.
- Universal clamp.
- Auto check & display quality of cleaved end face.
- Low splice loss control technology.
- Auto compensation of low air pressure.
- Software upgrade via USB interface.
Technical Specifications
| Splicing | |
|---|---|
| Applicable fibers | SM, MM, DS, NZDS |
| Fiber cleaved length | 8 ~ 16 mm (coating diameter: 250 µm) |
| Fiber diameter | Cladding diameter: 80 ~ 150 µm Coating diameter: 100 ~ 1000 μm: 16 mm |
| Fiber alignment method | Meticulous, Core, Cladding, Manual |
| Average splice loss | 0,02 dB (SM), 0,01 dB (MM), 0,04 dB (DS), 0,04 dB (NZDS) |
| Splicing time | typical 9 sec (standard SM fiber) |
| Splicing programs | 53 (templates), 100 (user adjustable) |
| Return loss | > 60 dB |
| Internal memory | 10 000 results |
| Fiber image magnification | 320X (X or Y view) |
| Splicing mode | Auto, Calibrate, Normal, Special |
| Heating | |
| Heating time | typical 15 seconds (fast heating control, editable heating time, editable heating temperature) |
| Heating programs | 11 (templates), 40 (user adjustable) |
| Applicable sleeves | 60 mm, 40 mm and other lengths |
| General | |
| Tension test | 2N |
| Battery capacity | typical 350 cycles (splicing and heating) |
| Display | 4.3 inch TFT color LCD monitor, image rotation |
| Operating condition | 0 ~ 5000 m above sea level; 0 ~ 95% RH; –10 ~ 50°C, respectively; max. wind velocity of 15 m/s |
| Power supply | AC 100-240 V with AC adapter DC13.5 V; inner Li-battery (5200mAH), charging time <3.5 hours |
| Dimensions (L×W×H) | 161 mm × 136 mm × 141 mm |
| Weight | 1.6 kg (excluding battery) 1.93 kg (including battery) |

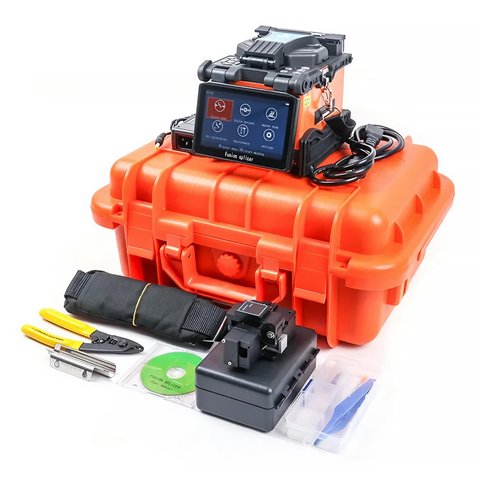

Package Contents
- Fusion Splicer Jilong KL-360E — 1 pc.
- Fiber Cleaver — 1 pc.
- Fiber Stripper — 1 pc.
- Carrying Case — 1 pc.
- Spare Electrodes — 2 pcs.
- Cooling Tray — 1 pc.
- Cleaning Tool — 1 pc.
- Manual — 1 pc.
- Power Supply Cord — 1 pc.
- USB Cable— 1 pc.
