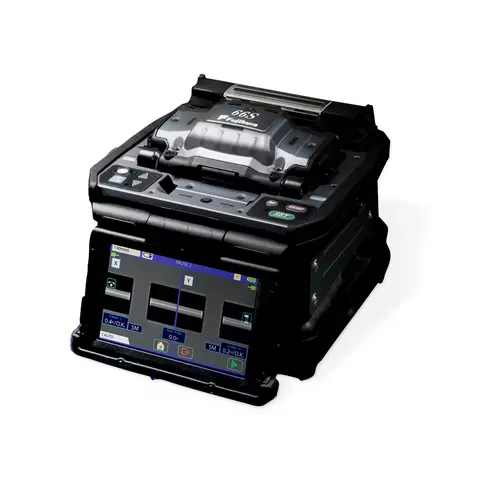

Fusion Splicer Fujikura 66S

Name: Fusion Splicer Fujikura 66S
Brand: Fujikura
SKU: 898494
Price: 5750.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

id: 898494

General information

Warranty

USD 5750.00

General information

Made in Japan

5 (1)

A robust core alignment fusion splicer, providing consistent, low loss, splice performance. Splicing time: 7 sec. Heat time: 25 sec.

USD 5750.00

Buy wholesale and save

USD 5750.00

Impossible to estimate the shipping cost

Fujikura 66S is a core alignment fusion splicer with PAS (Profile Alignment System) that provides consistence low splice loss and accurate splice loss estimation. Moreover, easy sleeve positioning facilitates a quicker splicing cycle. The fusion splicer is equipped with a 5-inch LCD touch screen.
The compact design and lightweight of the Fujikura 66S make it possible to transport it and use it in the field.

Features

Splicing time: 7 seconds.
Heat time: 25 seconds (for 60 mm sleeves).
Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
Battery life increased up to 500 recharge cycles.
Increased electrode lifetime – up to 5000 splicing cycles with one set.
5-inch color TFT touch screen display.
Up to 320 times magnifications.
Compact design and high-quality materials.

Technical Specifications

Fiber alignment method	Active core alignment
Fiber count can be spliced	Single fiber
Applicable Fiber	Fiber type	SMF(G.652/657), MMF(G.651), DSF(G.653), NZDSF(G.655)
Applicable Fiber	Cladding dia.	80 um to 150 um
Applicable coating	Sheath clamp	Coating dia.: Max. 3.000 um
Applicable coating	Sheath clamp	Cleave length: 5 mm to 16 mm
Fiber splice performance	Splice loss	ITU-T G.652: Avg. 0.02 dB
		ITU-T G.651: Avg. 0.01 dB
		ITU-T G.653: Avg. 0.04 dB
		ITU-T G.654: Avg. 0.04 dB
		ITU-T G.655: Avg. 0.04 dB
		ITU-T G.657: Avg. 0.02 dB
	Splice time	Typical 7 sec
Applicable protection sleeve	Sleeve type	Heat shrinkable sleeve
	Sleeve length	Max. 66 mm
	Sleeve dia.	Max. 4.7 mm before shrinking
Sleeve heat performance	Heat time	60 mm mode: typical 25 sec
Fiber tensile test force	Approx. 2.0N
Electrode life	Approx. 5000 splices
Dimensions (W × D × H)	170 × 173 × 150 mm
Weight	2.7 kg (including battery)
Environmental condition	Temperature	Operate: -10°C - +50°C
	Temperature	Storage: -40°C - +80°C
	Humidity	Operate: 0% - 95% RH non-condensing
	Humidity	Storage: 0% - 95% RH non-condensing
	Altitude	Max. 5.000 m
AC adaptor	Input	AC 100 to 240 V, 50/60 Hz, Max. 1.5 A
AC adaptor	Output	Approx. DC 12 V, Max. 7 A
DC adaptor	Input	DC 10 to 15 V, Max. 7 A
DC adaptor	Output	DC 10 to 15 V, Max. 7 A
Battery pack	Type	Rechargeable Lithium Ion
	Output	Approx. DC 14.4 V / 6,380 mAh
	Capacity	Approx. 300 splice and heat cycles
	Temperature	Operate: -10°C - +50°C
		Recharge: 0°C - 40°C
		Storage: -20°C - +30°C
	Recharge	5 to 8 hours from empty
	Battery life	Approx. 500 recharge cycles
Display	LCD	TFT 5 inches with touch screen
Display	Magnification	200 to 320x
Illumination	V-grooves	LED lamp
Interface	PC	USB2.0 Mini B type
	External LED lamp	USB2.0 Mini A type Approx. DC 5 V, 500 mA
	Ribbon stripper	Mini DIN 6pin DC12 V, Max. 1 A
Data storage	Splice mode	100 splice modes
	Heat mode	30 heat modes
	Splice result	20 000 splices
	Splice image	100 images
Screw hole for tripod	1/4-20UNC
