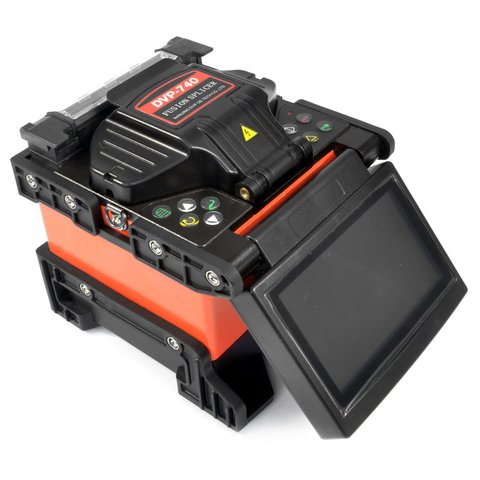

Fusion Splicer DVP-740
id: 861732
Fusion Splicer DVP-740
General information
Video
Warranty
Discontinued
General information
Video
10 kg 110, 220 V Warranty: 12 months
Core-to-core alignment system fusion splicer for SM, MM, DS, NZDS(G655), EDF and other fibers. Splicing time: 8 s, heating time: 35 s.
Discontinued

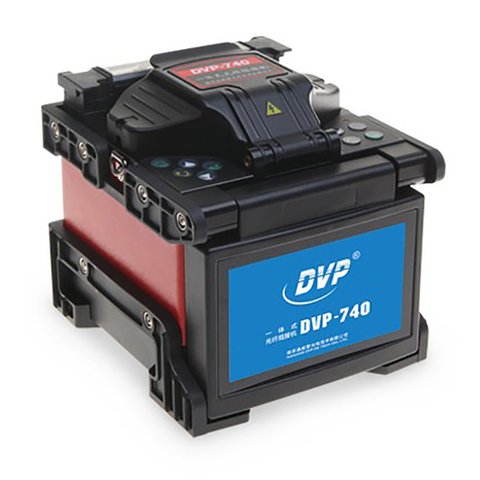

DVP-740 is an automatic fusion splicer for SM, MM, DS, NZ-DS(G655), EDF and other fibers. DVP-740 is capable of ensuring high-quality splicing even in the most unfavorable environment conditions.
Features
- 4.3-inch color display.
- Fully automatic, semi-automatic and manual operation.
- Can be applied for fibers, cables and SOC (splice-on connectors).
- User-friendly menu.
- High-quality operation under wind and rain, dust and water protection.
- Stress-resistance.
- Compact dimensions and light weight.
- Menu languages: English, Spanish, German, Russian, Korean, Portuguese, French.

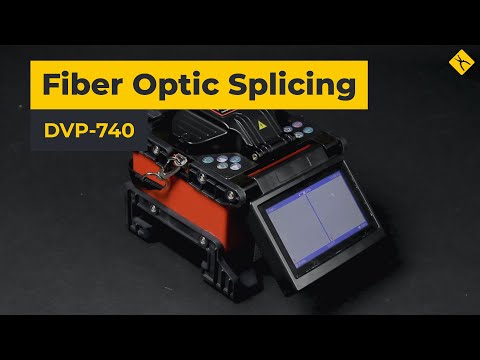

Video
Technical Specifications
| Splicing time | 8 s |
| Heating time | 35 s |
| Alignment method | IPAS core-to-core alignment (Image Pattern Analysis Alignment System) |
| Applicable fibers | SM, MM, DS, NZ-DS (G655), EDF, Bending Loss Insensitive fiber (G657), pigtail, drop cable and connector |
| Fiber cleave length | 8-22 mm |
| Average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return loss | < 60 dB |
| Programs | 5 groups of preset programs 75 groups of manual setting |
General Specifications |
|---|---|
| Interfaces | USB, ext. power |
| Power supply | battery 12 V / 6 A power adapter 85 ~ 260 V |
| Battery splice/heat cycles | 120 cycles |
| Mechanical Tension Test | 2.0 N |
| Display | 4.3-inch color LCD | Dimensions & Weight |
| Dimensions (w × d × h) | 142 × 122 × 138 mm |
| Weight | 1.95 kg (with battery) |

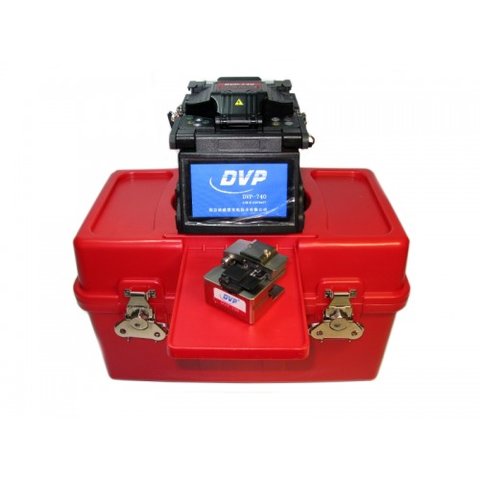

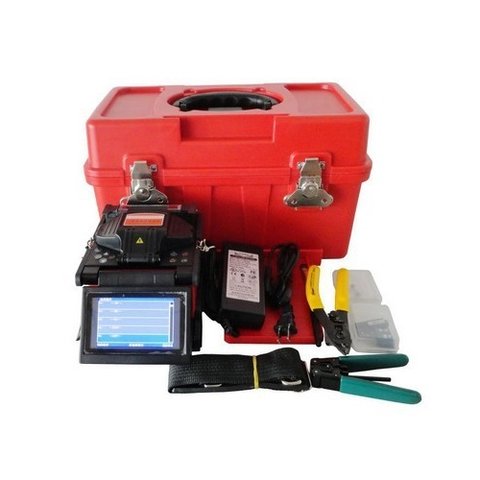

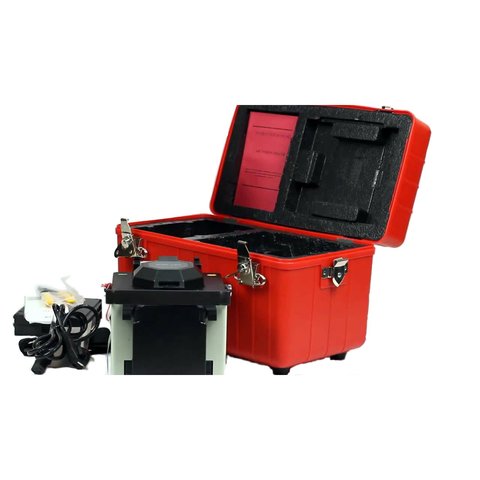

Package Contents
- Fusion splicer unit (1 pc.)
- Fibre cleaver (1 pc.)
- Drop cable stripper (1 pc.)
- Power adapter (1 pc.)
- Spare electrodes (1 set)
- Carrying Case (1 pc.)
- Manual (1 pc.)
