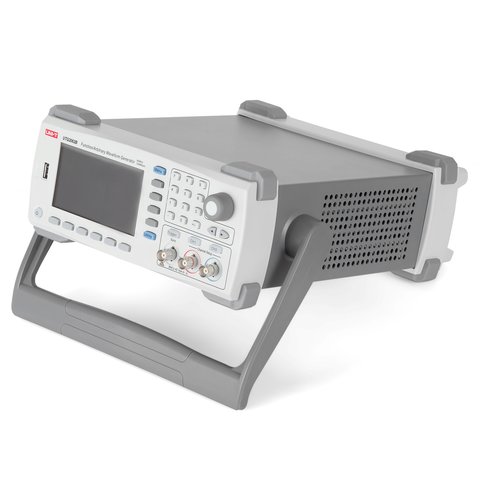

Function/Arbitrary Waveform Generator UNI-T UTG2062B
UNI-T UTG2062B is a high quality bench-top DDS/arbitrary waveform generator, featuring a large, full-colour screen, labelled buttons and dual ports for measuring 2 channels simultaneously. It is capable of generating multiple waveform types, including sine, square, ramp, pulse, noise, DC, arbitrary and harmonic. It uses output frequency of 60 MHz, frequency resolution of 1 μHz and has vertical resolution of 14 bits. The UTG2062B also features multiple modulation types which are AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM.
Built-in USB interface allows the device to be connected up to a PC or other similar device via the included USB cable.
Features
- Produces sine, square, ramp, pulse, noise, DC, arbitrary and harmonic signals.
- 1 μHz frequency resolution.
- Two equivalent-performance channels, 16 Mpts memory depth.
- Vertical resolution of 16 bits.
- Output amplitude range: 1 mVpp-10 Vpp (50 Ω); 2 mVpp-20 vpp (1 MΩ).
- Multiple modulation types: AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM.
- 4.3 inch 64 K colour TFT LCD screen ((480 × 272).
- Complies with EN 61010-1 and CAT III 300V.
Technical Specifications
| Max frequency | 60 MHz |
| Channels | 2 |
| Sampling rate | 320 MS/s |
| Waveforms | Sine, square, ramp, pulse, noise, DC, arbitrary, harmonic |
| Modulations | AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM |
| Working modes | Output on/off, continuous, modulation, sweep, burst |
| Memory depth | 8 pts ~ 16 Mpts |
| Vertical resolution | 16 bits |
| utput amplitude range | 1 mVpp-10 Vpp (50 Ω); 2 mVpp-20 vpp (1 MΩ) |
| Frequency Specifications | |
|---|---|
| Sine | 1 μHz ~ 60 MHz |
| Square | 1 μHz ~ 25 MHz |
| Ramp | 1 μHz ~ 3 MHz |
| Pulse | 1 μHz ~20 MHz |
| Noise | 60 MHz (-3 db) |
| Arbitrary | 1 μHz ~15 MHz |
| Harmonic | 1 μHz ~30 MHz |
| Resolution | 1 μHz |
| Accuracy | ±0.5ppm 25°C |
| Interfaces | USB Host, USB Device, LAN |
| General Specifications | |
| Power | 100 - 240 V (AC), 50 - 60 Hz |
| Display | 4.3-inch TFT LCD, WVGA (480 × 272) |
| Weight | 3.2 kg |
| Dimensions | 265 × 110 × 320 mm |
User Manual
Download UNI-T UTG2062B user manual.
Software
Download UNI-T UTG2062B Software.
Package Contents

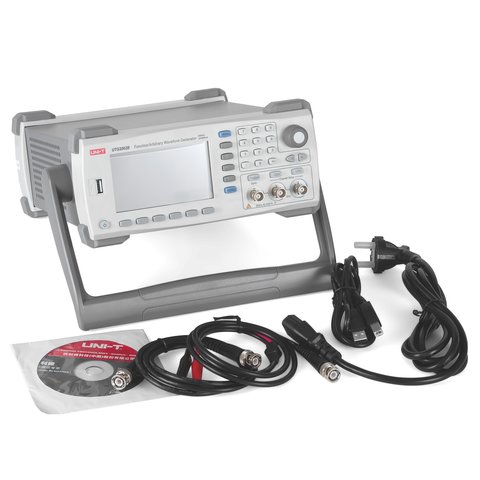

- Function/Arbitrary Waveform Generator UNI-T UTG2062B — 1 pc.
- BNC Cable — 1 pc.
- Alligator Clips — 1 set.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- PC software CD — 1 pc.
Function / waveform generator Max. signal frequency:
- 60 MHz
Function / waveform generator channels:
- Dual channel
