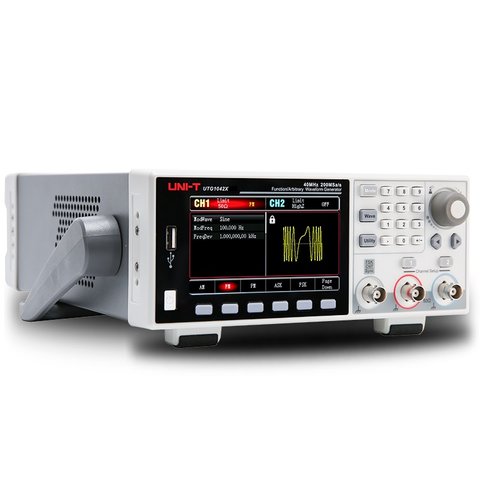

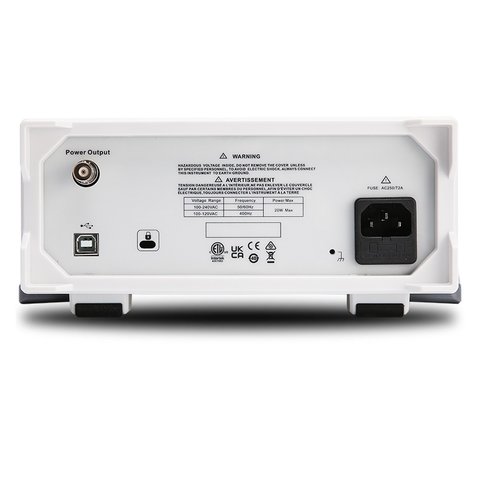

Function/Arbitrary Waveform Generator UNI-T UTG1042X
id: 913850
id: 913850 4 kg
Dual-channel generator with a 200 MSa/s sampling rate, 40 MHz maximum output frequency, 16-bit vertical resolution, and a 4.3-inch TFT LCD.
Add to wishlist
Compare
Compare
Overview
Warranty
Overview
UNI-T UTG1042X is an economical, high-performance, and multi-functional function/arbitrary waveform generator. It can generate accurate, stable, clean, and low-distortion output signals. With convenient operation, superior technical indicators, and a humanized graphic display, it is a multipurpose device that meets the needs of learning, testing, and production.
Features
- Two channels with a maximum frequency output of 40 MHz and a maximum output amplitude of 20 Vpp.
- Precise and stable waveform output with a resolution as low as 1μHz.
- 200 MSa/s sampling rate and 16-bit vertical resolution.
- Square wave with a maximum frequency of 20 MHz.
- Low jitter.
- Multiple analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM.
- Support for sweep frequency and pulse string output.
- Arbitrary waves can be generated using the upper software on the computer.
- 7-bit hard frequency meter.
- Built-in 200 arbitrary waves.
- Standard USB Host and USB Device.
- 4.3-inch high-resolution TFT LCD.
Technical Specifications
| Channel | Dual channel |
| Sampling rate | 200 MSa/s |
| Vertical resolution | 16-bit |
| Waveform characteristic | 6 standard waveforms, 200 built-in arbitrary waveforms |
| Waveform | Sine, Square, Ramp, Pulse, Noise, DC, Arb, AM, FM, PM, ASK, FSK, PSK, PWM, frequency sweep, burst |
| Working modes | Output gating, continuous, modulation, frequency sweep |
| Display | 4,3" TFT LCD, WVGA (480×272) |
| Supply voltage | 100～240 VACrms (Fluctuations：±10%), 50 Hz/60 Hz 100～120 VACrms (Fluctuations：±10%), 400 Hz |
| Power consumption | <20 W |
| Fuse | 2 A, Class T，250 V |
| Dimensions (W×H×D) | 215 mm × 103 mm × 316 mm |
| Net weight | 2.2 kg |
User Manual
Download UNI-T UTG1042X user manual.
Datasheet
Download UNI-T UTG1042X datasheet.
Package Contents
- Function/Arbitrary Waveform Generator UNI-T UTG1042X — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- BNC-BNC Cable — 1 pc.
- BNC-Red&Black Alligator Clip Cable — 1 pc.
