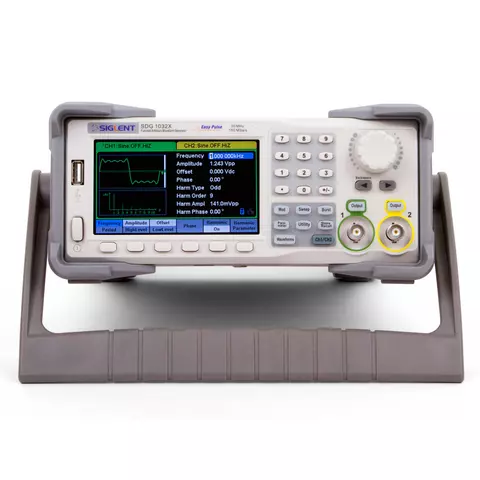

Function/Arbitrary Waveform Generator SIGLENT SDG1032X

SIGLENT SDG1032X is a device of SDG1000X series of dual-channel function/arbitrary waveform generators. SDG1000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Features

• Dual-channel, 30 MHz bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range.
• High-performance sampling system with 150 MSa/s sampling rate and 14-bit vertical resolution.
• Innovative TrueArb technology prevents the occurrence of noise and interference.
• Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
• 30 MHz square wave generator with jitter of less than 300 ps + 0.000005
• Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PWM, PSK.
• Sweep and Burst functions.
• High precision Frequency Counter.
• Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11). Optional interface: GPIB.
• 4.3” touch screen display for convenient control.

Technical Specifications

Video

Package Contents

• Siglent SDG1032X Function/Arbitrary Waveform Generator — 1 pc.
• Power cable — 1 pc.
• USB cable — 1 pc.
• Warranty — 1 pc.
• Software CD — 1 pc.
• Quick start guide — 1 pc.

Function / waveform generator channels:

• Dual channel

Function / waveform generator Max. signal frequency:

• 30 MHz
