Frame Gluing Machine AS AS-650R compatible with Apple Cell Phones

How to use

• Choose a necessary mold.
• The lower part of the mold place on the bottom platform of the device, the upper part of the mold attach to the top platform.
• Turn the device on and set the controller on the necessary temperature (80-140 °C), depending on the type of the adhesive. The controller and the switch of the temperature are on the right side of the front panel.
• Attach the frame to the display module and place the LCD into the lower part of the mold. The glass must be on top.
• Use the handle to put down the top of the platform.Press it to the bottom mold and keep it in this position for 15-20 seconds.
• Carefully lift the upper platform to pull out the module from the mold. The frame gluing process is completed.

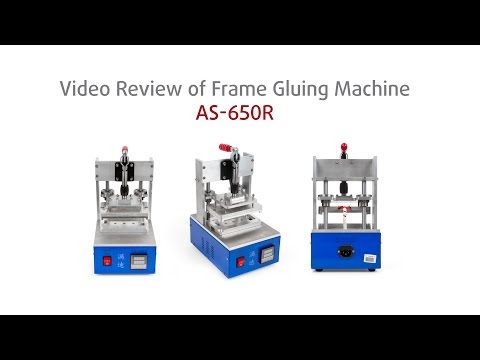

Video

Package Contents

• Dispositivo — 1 ud.
• Cable de alimentación — 1 ud.
• Moldes para pegar marcos en iPhone 4/ iPhone 4S/ iPhone 5/ iPhone 5C, iPhone 5S/ iPhone 6/iPhone 6 Plus

Frame Gluing Machine is compatible with the following models of Cell phones:

• Apple iPhone 5
• Apple iPhone 5S
• Apple iPhone 5C
• Apple iPhone 4
• Apple iPhone 4S
• Apple iPhone 6
• Apple iPhone 6 Plus
• Apple iPhone SE
