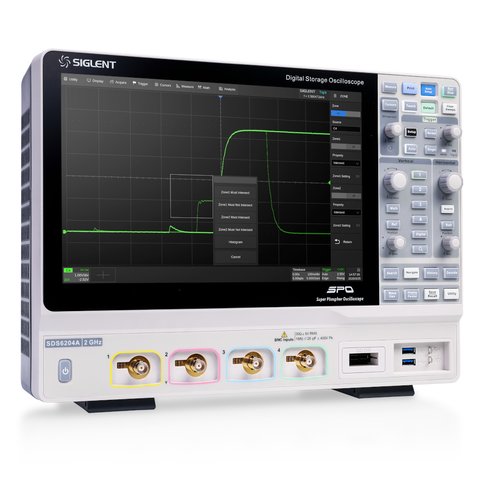

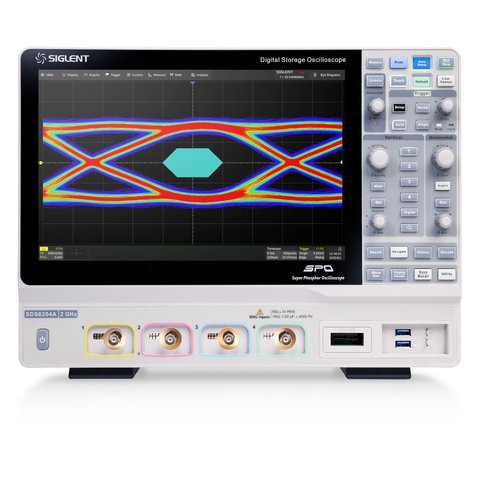

Digital Oscilloscope SIGLENT SDS6054A
SIGLENT SDS6054A is a 4-channel digital oscilloscope with a 500 MHz bandwidth, 5 GS/s sampling rate, and a standard record depth of up to 500 Mpts/ch. This device employs SIGLENT’s SPO technology with a maximum waveform capture rate of up to 170,000 wfm/s (normal mode, up to 750,000 wfm/s in sequence mode), 256 level intensity grading display function plus a color temperature display mode.
It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes, including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Eye/Jitter Analysis allow for extended waveform records to be captured, stored, and analyzed.
SIGLENT SDS6054A has an impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding. The large 12.1" display capacitive touch screen supports multitouch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.
Features
- 4 analog channels, 500 MHz bandwidth with 5 GSa/s sample rate at each channel
- Low background noise, supports 0.5 mV/div to 10 V/div vertical scales.
- SPO technology:
- waveform capture rates up to 170,000 wfm/s (normal mode), and 750,000 wfm/s (sequence mode);
- supports 256 level intensity grading and color temperature display modes;
- 500 Mpts record length in total for all 4 channels;
- digital trigger system.
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering.
- Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MILSTD-1553B, SENT and Manchester.
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80 000), according to trigger conditions set by the user.
- History waveform record (History) function, the maximum recorded waveform length is 80 000 frames.
- Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref.
- 4 Math traces (8 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor.
- Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Eye/Jitter Analysis.
- High Speed hardware-based Average, Hi-Res.
- High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks.
- 16 digital channels (optional).
- 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms.
- Large 12.1" TFT-LCD display with 1280×800 resolution; capacitive touch screen supports multitouch gestures.
- Interfaces include: USB Hosts, USB Device (USBTMC), LAN（VXI-11/Telnet/Socket, micro SD card, Pass/Fail, Trigger Out, HDMI.
- The built-in web server supports remote control over the LAN port using a web browser.
- Supports SCPI remote control commands.
- Supports external mouse and keyboard.
Technical Specifications
| Analog channels | 4 + EXT |
| Bandwidth | 500 MHz |
| Sample rate | 5 GSa/s per each channel |
| Memory depth (max.) | 500 Mpts/ch（single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) |
| Waveform capture rate (max.) | 170 000 wfm/s (normal mode); 750 000 wfm/s (sequence mode) |
| Vertical resolution | 8-bit, up to 16-bit in Hi-Res mode |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial |
| Serial trigger and decode | Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only) |
| Auto measurement | 50+ parameters |
| Math | 4 traces 8 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex , 10x , ln, lg, Interpolation, MaxHold, MinHold. Supports formula editor |
| Data analysis | Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis |

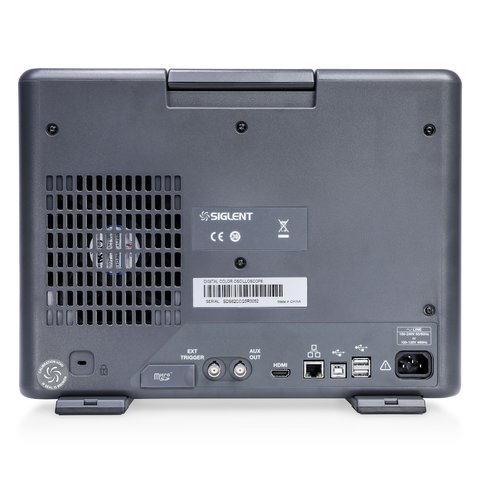

| Interfaces | USB 3.0 Host (2 pcs.), USB 2.0 Host (2 pcs.), USB 2.0 Device, LAN, micro SD card, HDMI, External trigger, Auxiliary output（TRIG OUT, PASS/FAIL） |

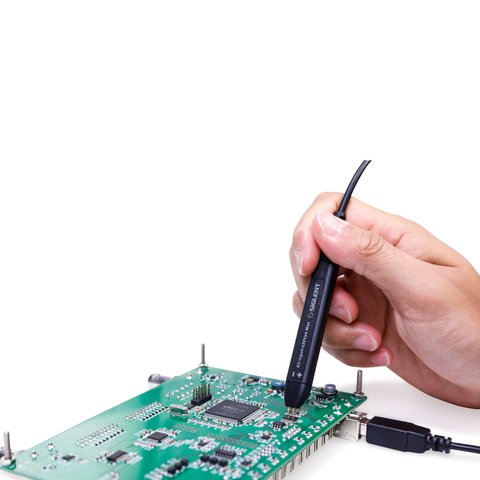

| Probe | SP3050A, 500 MHz, 1 probe supplied for each channel |
| Display | 12.1" TFT-LCD with capacitive touch screen (1280×800) |
| Dimensions | 379 mm × 288 mm ×159 mm |
| Weight | net 5.5 kg, gross 7.1 kg |
User Manual
Download SIGLENT SDS6054A user manual.
Data Sheet
Download SIGLENT SDS6054A data sheet.
Package Contents
- Digital Oscilloscope SIGLENT SDS6054A — 1 pc.
- USB Cable — 1 pc.
- Passive Probe — 4 pcs.
- Wireless Mouse — 1 pc.
- Power Cord — 1 pc.
- Quick Start — 1 pc.
Digital oscilloscope number of channels:
- 4-channel
- With 16 channel logic analyzer
Digital oscilloscope type:
- Desktop
- Mixed-signal
- With built-in generator
- Touch
- Phosphor
Digital oscilloscope sample rate:
- 5 GS/s
Digital oscilloscope bandwidth:
- 500 MHz
Digital oscilloscope storage capacity:
- 500 Mpts
Digital oscilloscope screen size:
- 12.1" TFT display
