Digital Oscilloscope SIGLENT SDS1102DL+

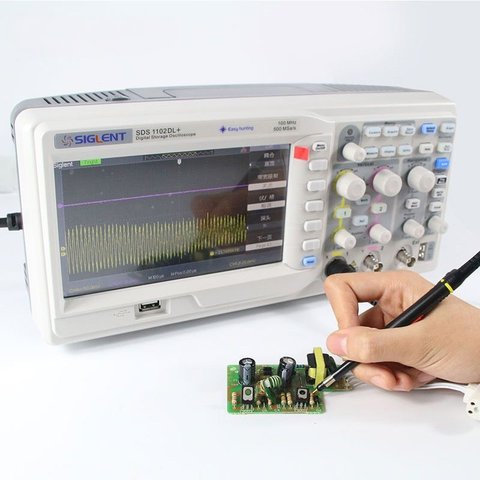

SIGLENT SDS1102DL+ is a desktop dual-channel digital oscilloscope with a 100 MHz bandwidth. 7-inch color LCD of the oscilloscope ensures bright and vivid waveform representation. SIGLENT SDS1102DL+ has a multi-language user interface and online help.

Features

• Bandwidth: 100 MHz.
• 2 channels.
• Real-time sample rate: 500 MSa/s.
• Equivalent sample rate: 50 GSa/s.
• Memory depth: 32 Kpts.
• Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate
• 7" TFT color LCD.
• Built-in digital frequency counter.
• 32 automatic measurement functions; 5 measurements may be displayed on the screen.
• Zoom function.

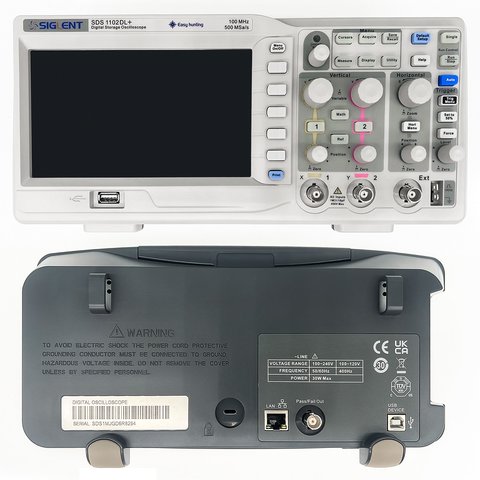

• Interface: USB host, USB device, LAN.
• Pass/Fail Output.
• Multi-language menu (12 languages).
• Online help.
• Digital filter and waveform recorder function.
• Digital recorder (7 M memory, USB flash drive support).
• Compact design for saving desktop space.

Technical Specifications

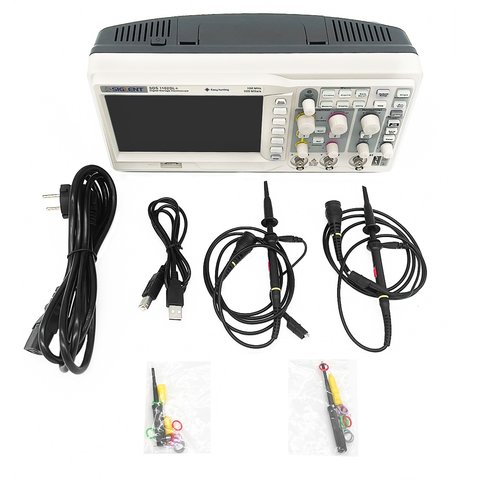

Package Contents

• Digital Oscilloscope SIGLENT SDS1102DL+ — 1 pc.

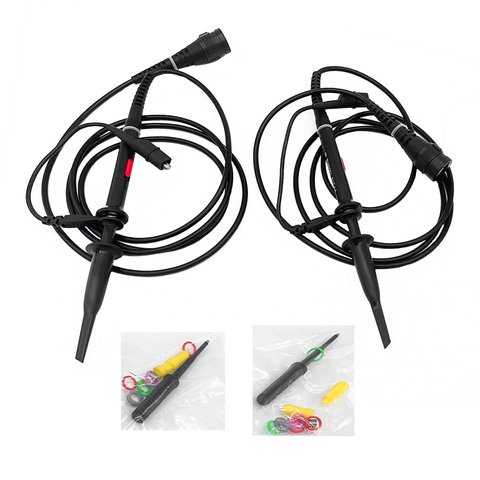

• Passive Probes — 1 set

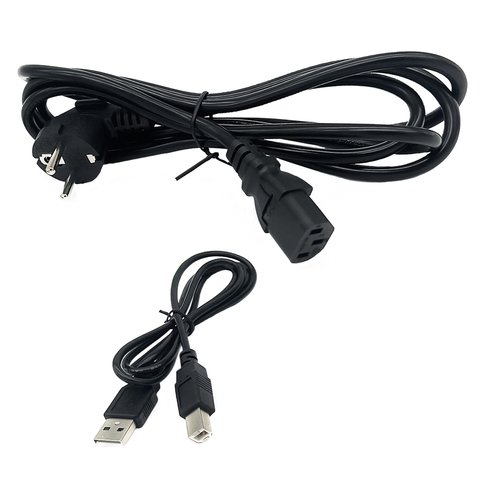

• Power Cord — 1 pc.
• Cable USB — 1 pc.
• User Manual — 1 pc.
• Software CD — 1 pc.
• Quick start guide — 1 pc.

Digital oscilloscope screen size:

• 7.0" TFT display

Digital oscilloscope number of channels:

• Dual-channel

Digital oscilloscope storage capacity:

• 32 kB

Digital oscilloscope bandwidth:

• 100 MHz

Digital oscilloscope type:

• Desktop

Digital oscilloscope sample rate:

• 500 MS/s
