Digital Oscilloscope RIGOL DS1302CA

Name: Digital Oscilloscope RIGOL DS1302CA
Brand: RIGOL
SKU: 810639
Price: 1380.00 USD
Availability: OutOfStock

id: 810639

General information

Warranty

Discontinued

General information

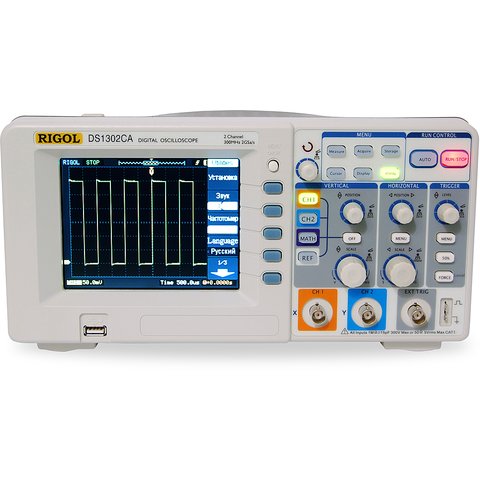

Digital Oscilloscope RIGOL DS1302CA Preview 1

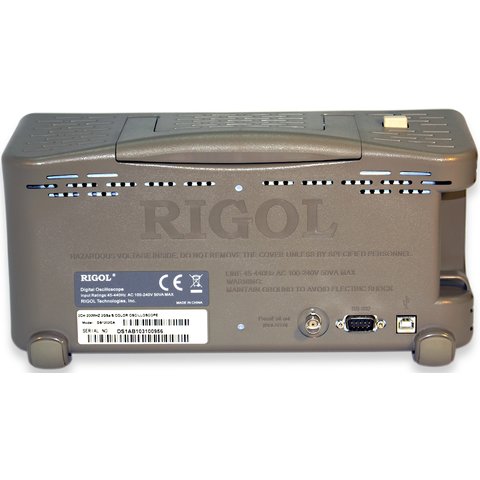

Digital Oscilloscope RIGOL DS1302CA Preview 2

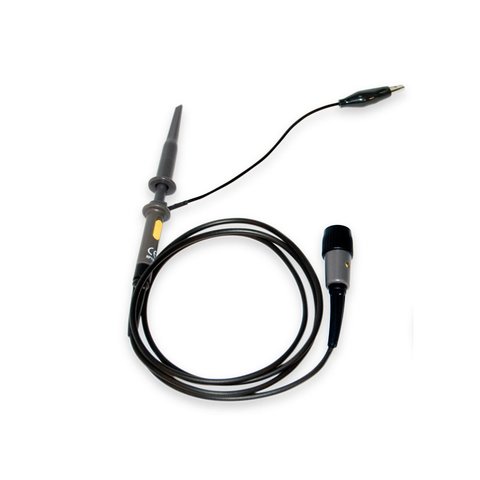

Digital Oscilloscope RIGOL DS1302CA Preview 3

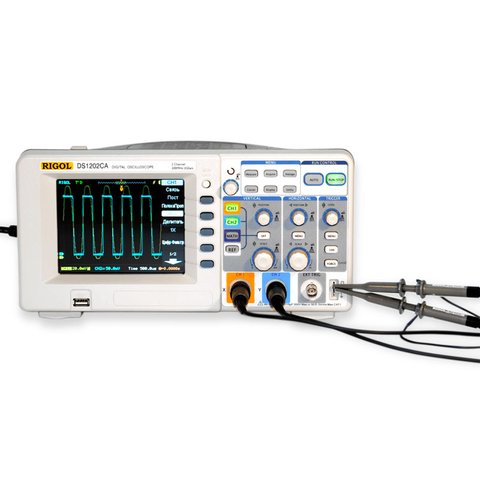

Digital Oscilloscope RIGOL DS1302CA Preview 4

7.5 kg 110, 220 V Warranty: 36 months

Dual channel + external trigger, Bandwidth 300 MHz, Color LCD display, Real-time sample rate - 2 GSa/s, Equivalent sample rate - 50 GSa/s

Discontinued

Impossible to estimate the shipping cost

Features

The 2 GSa/s maximum real-time sample rate, the 50 GSa/s maximum equivalent time sample rate
Up to 300 MHz of bandwidth ensures you capture and observe your entire signal
Up to 2000 wfms/s refresh rate
Ultra Compact Design with small footprint save your bench space
5.7’ 64K TFT color LCD, bright and vivid waveform display
Memory depth: 10 kpts (Single Channel), 5 kpts (Dual Channels)
Versatile trigger modes: Edge, Video, Pulse Width,Slope, Alternate
Adjustable trigger sensitivity: Effectively filter noise from trigger signal and avoid false trigger 8. 20 automatic measurements
Cursor measurements: Manual, Track and Auto Measure modes
10 waveforms, 10 setups, BMP and CSV storage
Math functions: Add, Subtract, Multiply, FFT, Invert
Special digital filter and waveform recorder
Built-in hardware frequency counters
Dual channels plus external trigger.
Standard interface: USB Device, RS-232;USB Host, to support USB disk and USB printer
Standard configuration: Pass/Fail test,the signal out of the pass fail function is isolated to prevent unwanted interference
Multi-language user interface, built-in help system

RIGOL DS1000CA SERIES

The DS1000CA series can be directly connected with the Rigol DG series function/arbitrary waveform generators. When connected with the built-in USB port of DS1000CA, the DG series function/arbitrary waveform can regenerate waveforms by visiting waveform memories of the latter's.

Ultrascope is designed for DS5000 series digital oscilloscopes

SPECIFICATIONS

Model		DS1062CA	DS1102CA	DS1202CA	DS1302CA
Bandwidth		60 MHz	100 MHz	200 MHz	300 MHz
Memory Depth		10 kpts (Single Channel), 5 kpts (Dual Channel)
Refrash Rate		2000 wfms/s
Channels		Dual Channels + External Trigger
Real-time Sample Rate		2 GSa/s(Single Channel), 1 GSa/s (DUal Channel)
Equivalent Sample Rate		50 GSa/s
Rise Time		5.8 ns	3.5 ns	1.7 ns	1.1 ns
Time Base Range		5 ns/div to 50 s/div	2 ns/div to 50 s/div		1 ns/div to 50 s/div
Input Impedance		1 MΩ \|\| 15 pF		1 MΩ \|\| 15 pF,50 Ω
Time Base Precision		±50ppm
X-Y Operation	Bandwidth	60 MHz	100 MHz	200 MHz	300 MHz
	Phase Difference	± 3°
Trigger Modes		Edge, Video, Pulse Width, Slope, Alternative
Trigger Sources		CH1,CH2,Ext,Ext/5,AC Line

VERSATILE TRIGGER MODES OF RIGOL DS1000A SERIES


Adjustable Trigger Sensitivity The ability to filter noise from the signal avoids false triggers	Alternative Trigger Provides a true dual time base display that was common in analog oscilloscopes	Slope Trigger Triggers on the signals rise time or fall time that is user defined	Rise Edge and Fall Edge Trigger Mainly used to view eye-diagrams formally only available in more advanced DSO’s

COMMON PARAMETERS FOR RIGOL DS1000A SEREIS

Vertical Sensitivity	2 mV/div to 10 V/div
Vertical Resolution	8 bits
Input Coupling	DC, AC, Ground
Maximum Input Voltage	300 V (DC + AC peak)
Roll Range	500 ms/div to 50 s/div
Automatic Measurements	Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1>2, Delay 1> 2
Cursor Measurements	Manual, Track and Auto Measure modes
Math	Add, Subtract, Multiply, FFT, Invert
Storage	Internal:10 Waveforms and Setups
Storage	USB:BMP, CSV, Waveforms and Setups
I/O	USB Device,USB Host,RS-232,P/F Out (Isolated)
Display	TFT (64K, Color LCD), 320 x 234
Power	Worldwide Use, 100 – 240 V / 50 VA Max
Weight	2.3 kg
