Digital Oscilloscope OWON SDS7102 VDA
id: 915216
Digital Oscilloscope OWON SDS7102 VDA
General information
Warranty
Price coming soon
General information
3 kg Warranty: 12 months
Dual-channel digital oscilloscope with a bandwidth of 100 MHz, sampling rate of 1 GS/s, 10 MB memory, an 8-inch LCD display, and a VGA connector
Price coming soon
OWON SDS7102 VDA is a compact 2-channel digital oscilloscope with 100 MHz bandwidth, 1 GS/s sample rate, and 10K pts wavelength. It is equipped with a large autoscale LCD for comfortable viewing of waveforms.
Features
- Small weight and dimensions
- Pass/Fail function
- Autoscale function
- Large 8-inch color LCD
- 10K pts wavelength (each channel)
- SCPI supported
- Waveform capture and playback
- Communication interface: USB2.0, USB storage, LAN

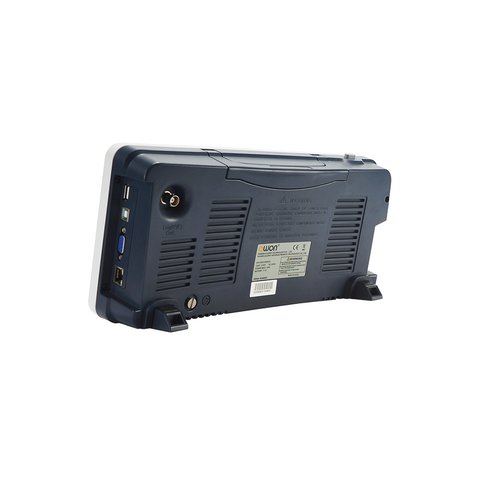

- a VGA connector to transmit analog video signals to an external display
Technical Specifications
| Bandwidth | 100 MHz |
| Real time sampling rate | 1 GS/s |
| Vertical resolution (A/D) | 8 bit (2 channels simultaneously) |
| Wavelength | 10K pts |
| Vertical sensitivity | 2 mV/div ～ 10 V/div |
| Horizontal timebase range | from 1 ns to 100 s |
| Rise time | ≤3.5 ns |
| Input impedance | 1 MΩ ± 2%, in parallel with 10 pF ± 5 pF |
| Max. input voltage | 400 V (PK-PK) (DC + AC PK-PK) |
| Math | ＋, －, ×, ÷, FFT |
| Waveform storage | 15 |
| Interfaces | USB2.0, USB storage, LAN, VGA |
| Display | 8" (21 cm) 800×600 LCD |
| Power consumption | 100-240 V AC RMS, 50/60 Hz, CAT II |
| Energy consumption | up to 18 W |
| Dimensions | 340 × 155 × 70 mm |
| Weight | 1.8 kg |

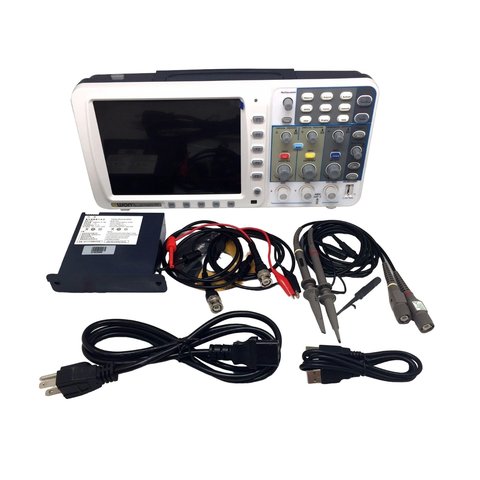

Package Contents
- Digital oscilloscope OWON SDS7102 VDA — 1 pc.
- Probes — 2 pcs.
- Power cord — 1 pc.
- USB cable — 1 pc.
- User manual — 1 pc.
- Warranty card — 1 pc.
Digital oscilloscope number of channels:
- Dual-channel
Digital oscilloscope bandwidth:
- 100 MHz
Digital oscilloscope type:
- Desktop
Digital oscilloscope sample rate:
- 1 GS/s
Digital oscilloscope screen size:
- 8,0" TFT LCD
Digital oscilloscope storage capacity:
- 10 MB
