Digital Oscilloscope OWON SDS1102
id: 875029
Digital Oscilloscope OWON SDS1102
General information
Warranty
USD 240.00
General information
2 kg Warranty: 12 months
2-channel desktop digital oscilloscope with 100 MHz bandwidth, 1 GSa/s sample rate, 10K pts wavelength, 8 bits vertical resolution.
USD 240.00
Buy wholesale and save
Similar products
ID
Product
Regular price
(USD)
(USD)
Your price
(USD)
(USD)
Availability in stock

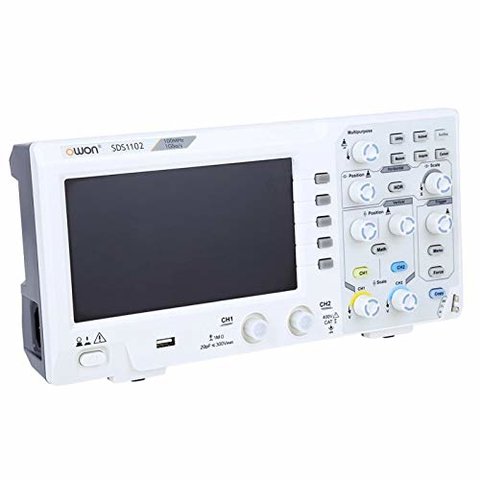

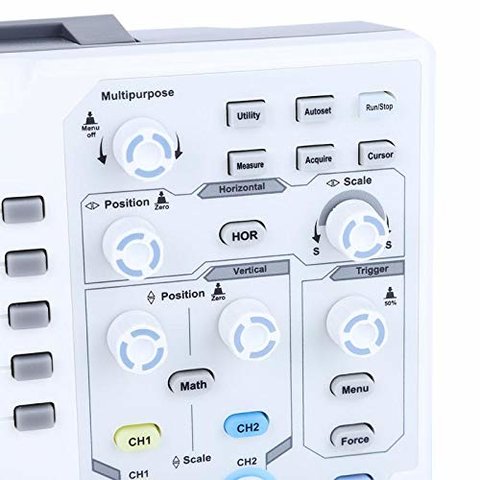

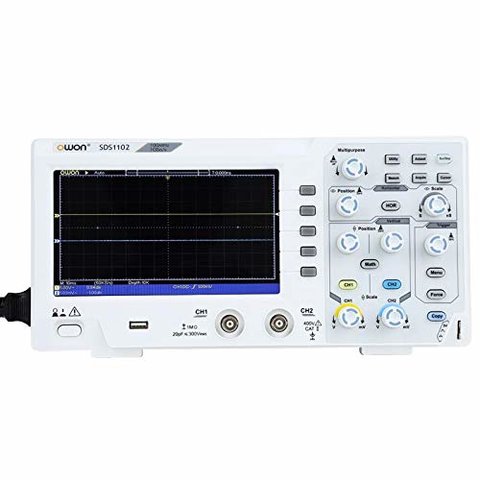

OWON SDS1102 is a desktop digital oscilloscope. The 2-channel device at an affordable price with 100 MHz bandwidth, 1 GSa/s sample rate and 10K pts wavelength. OWON SDS1102 has a simplified synchronization system which supports two trigger types: level and edge. Designed to solve problems that do not require large amounts of memory and difficult trigger types.
Features
- 100 MHz bandwidth.
- 2-Channel.
- Sample rate: 1 GS/s (Real time).
- 10K pts wavelength.
- Display 7" TFT, 800 × 480 pixels.
- Communication Interface: USB.
Technical Specifications
| Bandwidth | 100 MHz |
| Horizontal Scale (s/div) | 2 ns/div - 1000 s/div |
| Channel | 2 |
| Vertical Sensitivity | 5 mV/div - 5 V/div (at input) |
| DC Gain Accuracy | 3% |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |

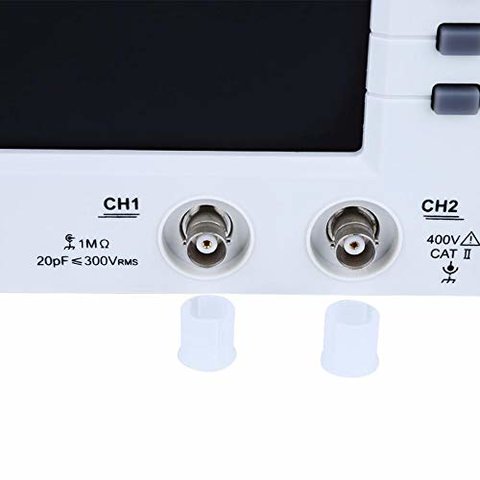

| Input | |
| Input Impedance | 1 MΩ, 10 pF |
| Input Coupling | AC, DC, GND |
| Max Input Voltage | ± 400 V, CATI, CATII |
| Passive probes | x1; x10 |
| Probe Attenuation Factor | x1; x10; x100; x1000 |
| Trigger System | |
| Trigger Mode | Auto, Normal, Single |
| Trigger Type | Edge, Video |
| Edge Trigger Source | CH1, CH2 |
| Video Trigger | |
| Sampling Type | real-time |
| Sample Rate | 1 GSa/s |
| Equivalent Sample Rate | no |
| Wavelength | 10K pts |
| Interpolation | sin(x)/x |
| Measurement and Mathematical Treatment System | |
| Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B, area, cycle area |
| Math Functions | Addition, Subtraction, Multiplication, Division, FFT |
| General Characteristics | |
| Display type | 7" color LCD |
| Display Resolution | 800 × 480 |
| Power | 100-240 V, 45-440 Hz, <15 W |
| Dimensions | 301 × 70 × 152 mm |
| Weight | 1,1 kg |
User Manual
Download OWON SDS1102 User Manual.
Video

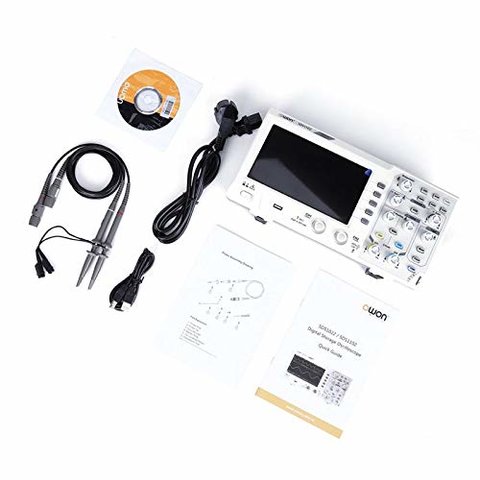

Package Contents
- Digital Oscilloscope OWON SDS1102 — 1 pc.
- Probes — 2 pcs.
- Power cord — 1 pc.
- USB cable — 1 pc.
- User Manual — 1 pc.
- Guarantee card — 1 pc.
- CD de software — 1 ud.
- Software CD — 1 pc.
Digital oscilloscope screen size:
- 7.0" TFT display
Digital oscilloscope number of channels:
- Dual-channel
Digital oscilloscope storage capacity:
- 10 kB
Digital oscilloscope bandwidth:
- 100 MHz
Digital oscilloscope type:
- Desktop
Digital oscilloscope sample rate:
- 1 GS/s
