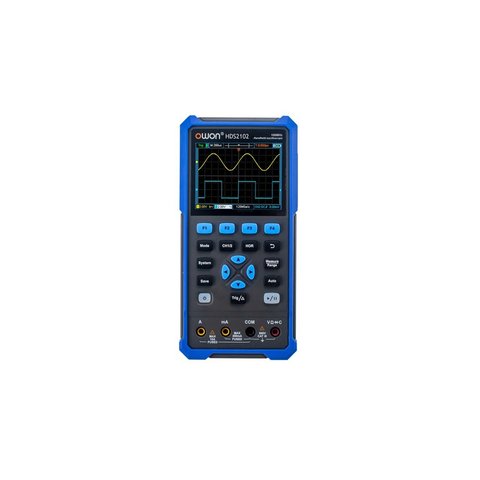

OWON HDS2102 is a portable dual-channel oscilloscope with a built-in multimeter. It features a 100 MHz bandwidth, 500 MSa/s sampling rate, 4K record length, and a 3.5" LCD. The device is equipped with a built-in 20,000-count multimeter, capable of measuring voltage, current, resistance, capacitance, testing diodes, and continuity. Its high-contrast and high-resolution LCD make it suitable for using the oscilloscope outdoors.
Features
- 2-in-1 device: oscilloscope + multimeter
- 100 MHz bandwidth, 500 MSa/s sampling rate
- Multimeter testing modes include voltage, current, resistance, capacitance, diode, and continuity tests
- 3.5-inch high-resolution color high-contrast LCD, suitable for outdoor use
- Rechargeable 18650 battery with ≤3W power consumption, providing up to 6 hours of continuous use
- USB Type-C interface, supporting SCPI commands, and the capability to connect to an external battery
- Self-calibration function
Technical Specifications
| Oscilloscope | ||
|---|---|---|
| Channels | 2 | |
| Bandwidth | 100 MHz | |
| Sample Rate | 500 MSa/s | |
| Acquisition Mode | Normal, Peak detect | |
| Record Length | 4K | |
| Waveform Refresh Rate | 10 000 wfrms/s | |
| Input Coupling | DC, AC, GND | |
| Input Impedance | 1 MΩ±2%, in parallel with 16 pF±10 pF | |
| Probe Attenuation Factors | 1X,10X,100X,1000X,10000X | |
| Max. input Voltage | 400 V (DC+AC, PK-PK, 1 MΩ input impedance) (10:1 probe attenuation) | |
| Bandwidth Limit (typical) | 20 MHz | |
| Horizontal Scale | 2 ns/div-1000 s/div, step by 1-2-5 | |
| Vertical Sensitivity | 10 mV/div - 10 V/div | |
| Vertical Resolution | 8 bits | |
| Trigger Type | Edge | |
| Trigger Modes | Auto, Normal, Single | |
| Automatic Measurement | Frequency, Period, Amplitude, Max, Min, Mean, PK-PK | |
| Cursor Measurement | ΔV, ΔT, ΔT&ΔV between cursors | |
| Multimeter | ||
| Max. Resolution | 20,000 counts | |
| Testing Mode | Voltage, Current, Resistance, Capacitance, Diode, and Continuity | |
| Input Impedance | 10 MΩ | |
| Max Input Voltage | AC 750V, DC 1000V | |
| Max Input Current | DC: 10 A; AC: 10 A | |
| Diode | 0-2 V | |
| General Specifications | ||
| Display | 3.5" LCD, 320 × 240 pixels | |
| Communication Interface | USB Type-C | |
| Dimensions | 198 mm × 96 mm × 38 mm | |
| Weight | 600 g | |
