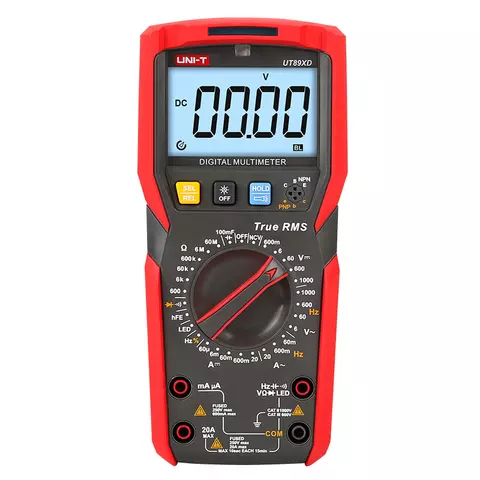

Digital Multimeter UNI-T UT89XD
Frequently bought together
UNI-T UT89XD is a reliable handheld multimeter with true RMS measurement. It can measure max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, temperature, diode, hFE, continuity and NCV, quickly and accurately distinguish between neutral and live wires. It can also perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this meter can be used in dark environment.
Features
- Measure AC/DC voltage up to 1000 V, AC/DC current up to 20 A.
- True RMS.
- Dual range NCV test which quickly identifies neutral and live wires through light intensity.
- LED measurement, diode test, transistor hFE.
- Continuity test.
- Audible/visual alarm
- Capacitor charging indicator.
- Function selection (SELECT).
- Ergonomic design.
- Double injection molding.
- 1 m drop proof.
- Flashlight; auto backlight.
- Data hold.
- Auto power off.
- Low battery indication.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V | ±(0.5%+2) |
| AC voltage | 6 V / 60 V / 600 V / 1000 V | ±(0.8%+5) |
| DC current | 60 μA / 6 mA / 60 mA / 600 mA / 20 A | ±(0.8%+8) |
| AC current | 60 mA / 600 mA / 20 A | ±(1%+12) |
| Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ | ±(0.8%+3) |
| Capacitance | 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF / 100 mF | ±(2.5%+20) |
| Frequency | 9.999 Hz / 9.999 MHz | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(2%+5) |
| AC voltage frequency response | 45~1000 Hz | |
| AC current frequency response | 45~1000 Hz | |
| General Characteristics | ||
| Sampling rate | 3 times/s | |
| Power Supply | 1.5V battery (R03) × 4 | |
| Display | LCD, 61 × 36 mm, 6000 count | |
| Dimensions | 189 × 89 × 53 mm | |
| Weight | 345 g | |
User Manual
Download UNI-T UT89XD User Manual.
Package Contents
- Digital Multimeter UNI-T UT89XD — 1 pc.
- Test Leads — 1 set
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Multimeter type:
- Digital
Multimeter range selection:
- Manual range
Multimeter digit capacity:
- 5999
Multimeter DC voltage:
- Up to 1000 V
Multimeter AC voltage:
- Up to 1000 V
Multimeter resistance:
- Up to 60 MOhm
Multimeter capacitance:
- Up to 100 000 μF
Multimeter frequency:
- Up to 10 MHz
Multimeter DC:
- Up to 20 A
Multimeter AC:
- Up to 20 A
Multimeter inductance:
- No
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter duty cycle:
- Yes
Multimeter true RMS:
- Yes
Multimeter backlight:
- Yes
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- Yes
Multimeter continuity test:
- Yes
Multimeter NCV:
- Yes
Multimeter battery testing:
- No
