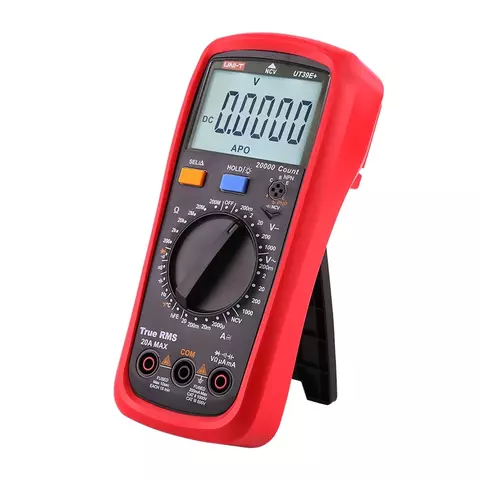

Digital Multimeter UNI-T UT39E+
General information
UNI-T UT39E+is a portable True RMS digital multimeter designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, conductance, continuity, and may be used for diode and transistor testing. It also performs NCV (non-contact AC voltage) testing.
The tool is perfect for HVACR maintenance with its temperature measurement feature.
Features
- Functions:
- AC/DC current;
- AC/DC voltage;
- resistance;
- capacitance;
- frequency;
- temperature;
- conductance
- NCV (non-contact AC voltage testing);
- continuity test (with buzzer);
- diode test;
- transistor hFE.
- True RMS measurements.
- Auto ranging.
- High voltage protection.
- Overvoltage and overcurrent alarm.
- Relative mode.
- Data hold.
- Large backlit LCD.
- Auto power off.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | ±(0.05%+3) |
| AC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | ±(0.5%+10) |
| DC Current | 2000 μA / 20 mA / 200 mA / 2 A / 20 A | ±(0.05%+5) |
| AC Current | 2000 μA / 20 mA / 200 mA / 20 A | ±(0.8%+10) |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 2 MΩ / 20 MΩ / 200 MΩ | ±(0.3%+2) |
| Capacitance | 2000 μF | ±(4%+20) |
| Frequency | 0 Hz ~ 2 MHz | ±(0.1%+3) |
| Temperature | -40ºC ~ 1000ºC | ±(1%+5) |
| -40ºF ~ 1832ºF | ±(1.5%+5) | |
| Conductance | 0.1 ~ 100 nS | ±(1%+3) |
| General Specifications | ||
| Frequency Response | 40 Hz ~ 400 Hz | |
| Display | LCD, 56.5 mm × 36 mm, 20000 count | |
| Power | 1.5V battery (R03) × 2 pcs. | |
| Drop Test | 2 m | |
| Dimensions | 175 mm × 83 mm × 53 mm | |
| Weight | 330 g | |
| Safety Category | CAT II 1000V, CAT III 600V | |
Package Contents
- Digital Multimeter UNI-T UT39E+ — 1 pc.
- Test Leads — 1 set
- Temperature Probe — 1 pc.
- User Manual — 1 pc.
Multimeter type:
- Digital
Multimeter range selection:
- Manual range
Multimeter digit capacity:
- 20 000
Multimeter DC voltage:
- Up to 1000 V
Multimeter AC voltage:
- Up to 1000 V
Multimeter resistance:
- Up to 200 MOhm
Multimeter DC:
- Up to 20 A
Multimeter AC:
- Up to 20 A
Multimeter inductance:
- No
Multimeter temperature:
- Yes
Multimeter power:
- No
Multimeter duty cycle:
- Yes
Multimeter true RMS:
- Yes
Multimeter backlight:
- Yes
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- Yes
Multimeter continuity test:
- Yes
Multimeter frequency:
- Up to 2 MHz
Multimeter capacitance:
- Up to 2000 μF
Multimeter NCV:
- Yes
Multimeter battery testing:
- No
