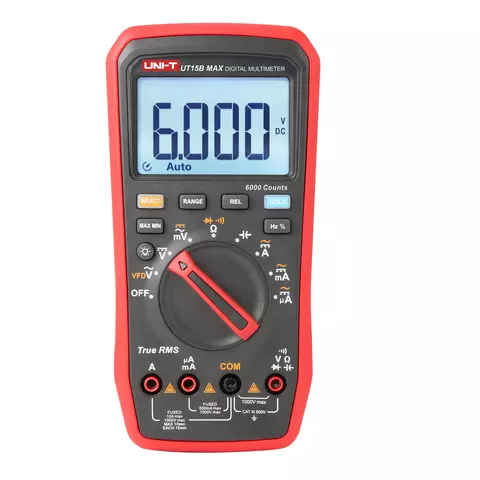

Digital Multimeter UNI-T UT15B Max
General information
The UNI-T UT15B MAX is a reliable digital True RMS multimeter with a 6000-count display, EMI anti-interference protection, quick response, and a handy design. A built-in VFD feature filters out interference from the carrier frequency overlapped by the sine wave or voltage signal distortions and may measure the output voltage of variable frequency drive. In DC/AC mode, the multimeter can also handle frequency and duty cycle measurements.
The UNI-T UT15B MAX comes with a set of gold-plated test leads, while the 1000V full-range input overvoltage protection makes it an excellent choice for engineers and electrical technicians.
Features
- Measurement functions:
- DC/AC voltage;
- DC/AC current;
- resistance;
- capacitance;
- frequency;
- duty cycle;
- diode testing;
- continuity testing.
- True RMS measurements
- Fast measurement times
- The VFD feature providing for accurate, interference-free voltage measurements by applying a low-pass filter to AC voltages under test
- 1000V full-range input protection
- Robust EMC anti-interference protection
- Sturdy built and compact design
Technical Specifications
| Measurement functions | Range | Resolution | ||
|---|---|---|---|---|
| UT15B MAX | UT17B MAX | UT18B MAX | ||
| DC voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V | ±(0.4%+3) | ||
| AC voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V | ±(0.5%+5) | ||
| DC/AC current | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A | ±(1.2%+3) | ||
| VFD voltage | 600.0 V | ±(8%) | ||
| Resistance | 600.0 Ω / 6.000 kΩ / 60.00 kΩ / 600.0 kΩ / 6.000 MΩ / 60.00 MΩ | ±(0.5%+2) | ||
| Capacitance | 6.000 nF / 60.00 nF ~ 600.0 μF / 6000 μF | ±(2%+5) | ||
| Frequency | 10 Hz ~ 10 MHz | |||
| Duty cycle | 1 ~ 99.9% | |||
| Comparative Specifications | ||||
| UT15B MAX | UT17B MAX | UT18B MAX | ||
| Continuity testing | ✓ | ✓ | ✓ | |
| Diode testing | ✓ | ✓ | ✓ | |
| Relative mode | ✓ | ✓ | ✓ | |
| MIN/MAX measurements | ✓ | ✓ | – | |
| Auto/Manual range | ✓ | ✓ | ✓ | |
| Data hold | ✓ | ✓ | ✓ | |
| Adjustable backlight | ✓ | ✓ | ✓ | |
| Low battery indication | ✓ | ✓ | ✓ | |
| Auto power off | ✓ | ✓ | ✓ | |
| Audible/Visual alarm | ✓ | ✓ | ✓ | |
| LED testing | – | – | ✓ | |
| Mis-plug alarm | ✓ | ✓ | ✓ | |
| Any-key wake up | ✓ | ✓ | ✓ | |
| General Specifications | ||||
| Display | LCD, 6000 count | |||
| Power supply | 1.5V AA battery × 2 pcs. | |||
| Dimensions | 182 × 91 × 45 mm | |||
| Weight | 455 g | |||
| Overvoltage category | CATIII 600 V | |||
| Certifications | CE, UKCA, cETLus, REACH, RoHS | |||
User Manual
Download UNI-T UT15/17/18B MAX User Manual
Package Contents
- UNI-T UT15B MAX digital multimeter — 1 pc.
- Test leads — 2 pairs
- User manual — 1 pc.
Multimeter type:
- Digital
Multimeter range selection:
- Auto range
Multimeter DC voltage:
- Up to 1000 V
Multimeter AC voltage:
- Up to 1000 V
Multimeter resistance:
- Up to 60 MOhm
Multimeter capacitance:
- Up to 6000 μF
Multimeter frequency:
- Up to 10 MHz
Multimeter DC:
- Up to 10 A
Multimeter inductance:
- No
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter duty cycle:
- Yes
Multimeter true RMS:
- Yes
Multimeter backlight:
- Yes
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- No
Multimeter continuity test:
- Yes
Multimeter NCV:
- No
Multimeter battery testing:
- No
Multimeter digit capacity:
- 6000
