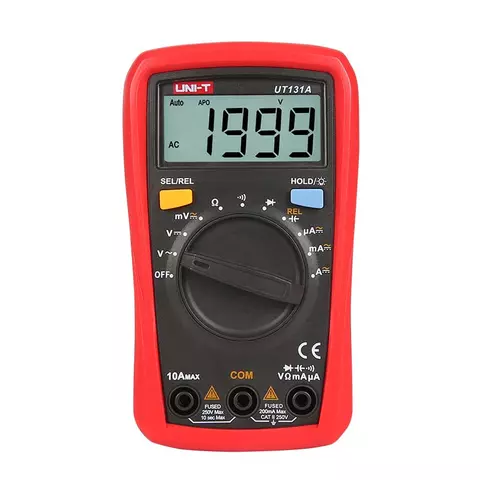

Digital Multimeter UNI-T UT131A

UNI-T UT131A is a pocket digital multimeter, that is used to measure DC/AC voltage and current, resistance, capacitance, as well as a diode and continuity testing. UNI-T UT131A features automatic range selection.

Features

• Compact and lightweight multimeter, perfect for carrying in the toolbox or pocket.
• Testing & measurement functions:
  • DC/AC voltage;
  • DC/AC current;
  • resistance;
  • capacitance;
  • diode testing;
  • continuity testing.
• 2 m drop proof.
• Data hold function.
• Relative measurement mode (REL).
• Bright backlight display.
• Low battery indication.

Technical Specifications

Video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

  Download UNI-T UT131A User Manual.

Package Contents

• Digital multimeter UNI-T UT131A — 1 pc.
• Test leads — 2 pcs.
• Protective case — 1 pc.
• User manual — 1 pc.

Multimeter type:

• Digital

Multimeter range selection:

• Auto range

Multimeter digit capacity:

• 1999

Multimeter DC voltage:

• Up to 250 V

Multimeter AC voltage:

• Up to 250 V

Multimeter resistance:

• Up to 200 MOhm

Multimeter DC:

• Up to 10 A

Multimeter AC:

• Up to 10 A

Multimeter frequency:

• Does not measure the frequency

Multimeter inductance:

• No

Multimeter temperature:

• No

Multimeter power:

• No

Multimeter duty cycle:

• No

Multimeter true RMS:

• No

Multimeter backlight:

• Yes

Multimeter PC connection:

• No connection to PC

Multimeter diode test:

• Yes

Multimeter analog bar graph:

• No

Multimeter transistor check:

• No

Multimeter continuity test:

• Yes

Multimeter capacitance:

• Up to 2000 μF

Multimeter NCV:

• No

Multimeter battery testing:

• No
