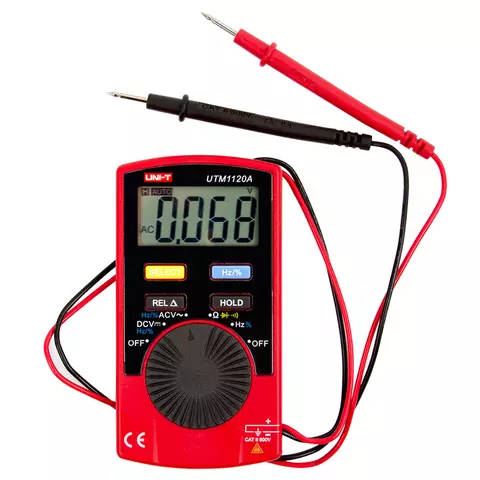

Digital Multimeter UNI-T UT120A

UNI-T UT120A Digital Multimeter is a high-quality multifunction pocket digital multimeter. This convenient portable device is powered from a 3 V battery. UNI-T UT120A is characterized by multiple measurements (AC/DC voltage, resistance, frequency) and tests (diode, continuity) and auto power-off function, data hold function.

Features

• Compact and lightweight palm-size device.
• Auto power-off function (after 30 min).
• Data hold function.
• Auto ranging.
• Relative measurements mode (REL).
• Multiple measurements & tests:
  • AC Voltage.
  • DC Voltage.
  • Resistance.
  • Frequency.
  • Diode testing.
  • Continuity test.
• Continuity buzzer.
• 3 V battery power (included).
• Low battery indication (≤ 2.4 V).
• Cable length: 50 cm.

Video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Package Contents

• UNI-T UT120A Digital Multimeter Unit — 1 pc.
• Test leads — 2 pc.
• Plastic protective case— 1 pc.
• User manual — 1 pc.

Note! Batteries are not included in the package.

Multimeter type:

• Digital

Multimeter range selection:

• Auto range

Multimeter digit capacity:

• 3999

Multimeter DC voltage:

• Up to 600 V

Multimeter AC voltage:

• Up to 600 V

Multimeter resistance:

• Up to 40 MOhm

Multimeter frequency:

• Up to 100 kHz

Multimeter AC:

• Does not measure the AC

Multimeter capacitance:

• Does not measure the capacitance

Multimeter DC:

• Does not measure the DC

Multimeter inductance:

• No

Multimeter temperature:

• No

Multimeter power:

• No

Multimeter duty cycle:

• Yes

Multimeter true RMS:

• No

Multimeter backlight:

• No

Multimeter PC connection:

• No connection to PC

Multimeter diode test:

• Yes

Multimeter analog bar graph:

• No

Multimeter transistor check:

• No

Multimeter continuity test:

• Yes

Multimeter NCV:

• No

Multimeter battery testing:

• No
