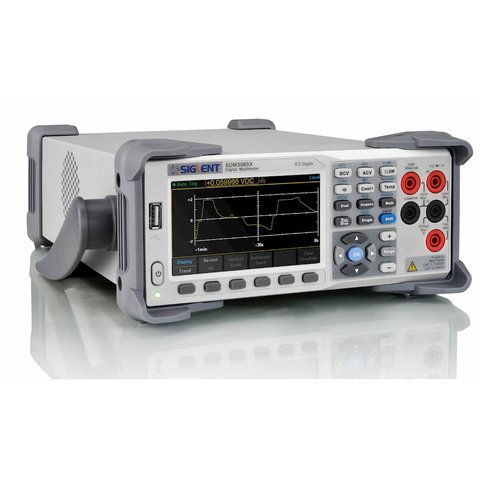

Digital Multimeter SIGLENT SDM3065X-SC with Multiplexer

SIGLENT SDM3065X-SC Multimeter – high quality digital tabletop multimeter with a sampling rate of max. 150 Sa/s. The display has a resolution of 6½ digits (max. count 2,200,000). This meter shows the best performance while being used for the needs of high-precision, multifunction and automatic measurements. It is characterized with easy to use interface and provides plenty of functions for all measurement tasks. The use of the menu navigation is very intuitional. Using a computer you can perform long-running monitoring tasks.

SIGLENT SDM3065X-SC is equipped with a built-in multiplexer that provides multi-point measurement capabilities to the SDM3065X digital multimeter. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP (RTD and Thermocouple). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.

Measurement Functions

• DC Voltage: 200 mV ~ 1000 V
• DC Current: 200 μA ~ 10 A
• AC Voltage: True-RMS, 200 mV ~ 750 V
• AC Current: True-RMS, 200 μA ~ 10 A
• 2/4-Wire Resistance: 200Ω ~ 100 MΩ
• Capacitance: 2 nF ~ 100 mF
• Continuity Test: Range is fixed at 2 kΩ
• Diode Test: Adjustable range is 0 ～ 4V.
• Frequency Measurement: 3 Hz ~ 1 MHz
• Period Measurement: 1 μs ~ 333.33 ms
• Temperature: supports TC and RTD sensor

Features

• 4.3” TFT-LCD, 480*272
• Real 6½ digits readings resolution (2,200,000 counts)
• 1 Gb NAND flash size, mass storage of configuration files and data files
• True-RMS AC Voltage and AC Current measuring
• Supports double display, Chinese and English menu
• File management (support for U-disc and local storage)
• Built-in cold terminal compensation for thermocouple
• With easy, convenient and flexible any sensor measurement control software: EasyDMM

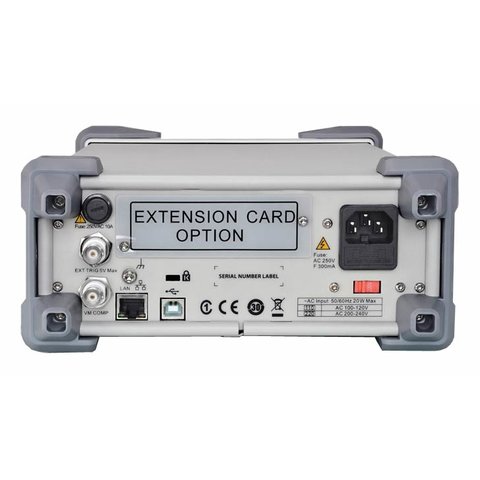

• Standard interface: USB Device, USB Host, LAN (Optional Accessories: GPIB and Scanner Card)
• Built-in help system makes information acquisition easier
• Supports remote control via commands and compatible with commands of main stream multimeters

Applications

• Research laboratories
• Development laboratories
• Detection and maintenance
• Calibration laboratories
• Automatic production tests

Technical Specifications

Data Sheet

  Download SIGLENT SDM3065X Data Sheet.

Package Contents

• SIGLENT SDM3065X-SC Digital Multimeter — 1 pc.
• USB Cable — 1 pc.
• Output Test Cord —2 pcs.
• Product Certificate — 1 pc.
• Calibration Certificate — 1 pc.
• Power Cord (220V EU) — 1 pc.

Multimeter type:

• Desktop

Multimeter range selection:

• Auto range

Multimeter DC voltage:

• Up to 1000 V

Multimeter AC voltage:

• Up to 750 V

Multimeter capacitance:

• Up to 100 000 μF

Multimeter frequency:

• Up to 1 MHz

Multimeter DC:

• Up to 10 A

Multimeter AC:

• Up to 10 A

Multimeter inductance:

• No

Multimeter temperature:

• Yes

Multimeter power:

• No

Multimeter duty cycle:

• Yes

Multimeter true RMS:

• Yes

Multimeter backlight:

• Yes

Multimeter PC connection:

• USB

Multimeter diode test:

• Yes

Multimeter analog bar graph:

• Yes

Multimeter transistor check:

• No

Multimeter continuity test:

• Yes

Multimeter resistance:

• Up to 100 MOhm

Multimeter digit capacity:

• 2 200 000

Multimeter NCV:

• No

Multimeter battery testing:

• No
