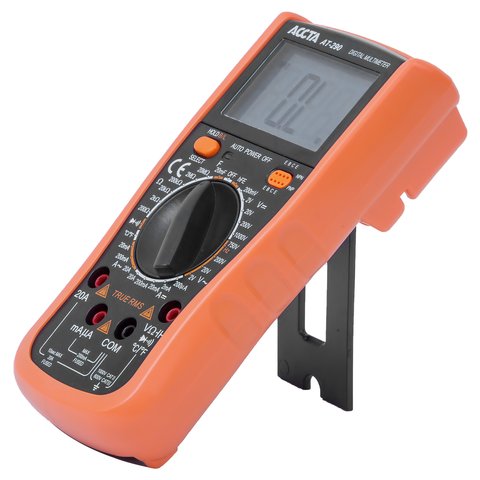

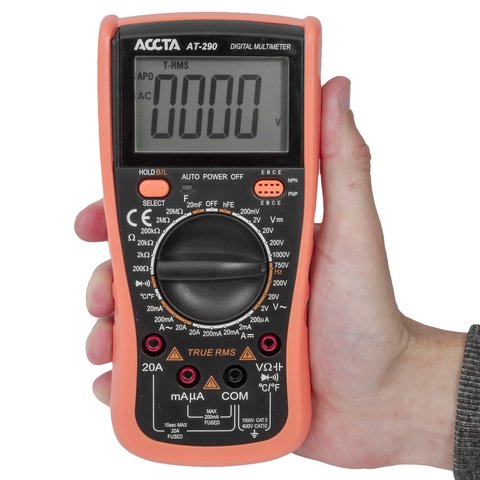

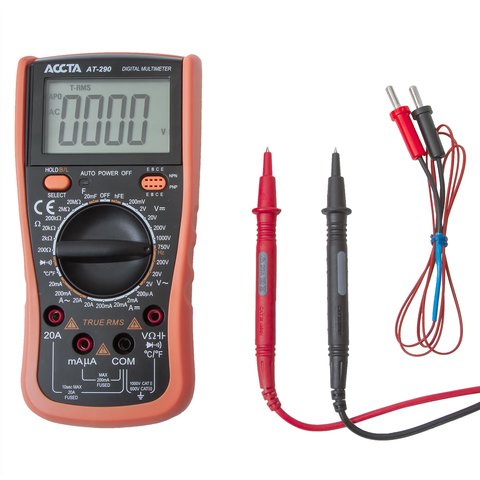

Digital Multimeter Accta AT-290
Frequently bought together
Accta AT-290 is a digital True RMS multimeter that is characterized by multiple measurements (voltage, current, resistance, capacitance, temperature) and tests (diode, transistor, continuity). The device is equipped with LCD with backlight and is powered from a 9 V battery.
Features
- Multiple measurements:
- DC/AC voltage;
- DC/AC current;
- capacitance;
- resistance;
- temperature;
- transistor testing;
- diode testing;
- continuity test.

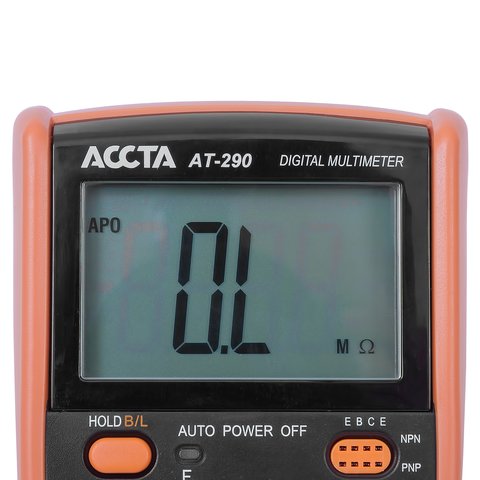

- LCD with backlight.
- Continuity buzzer.
- 200 mA fuse protection.
- Shockproof protection.
- True RMS.
- Auto power off.
- Manual ranging.
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0.5%+3) |
| 1000 V | ±(0.8%+10) | |
| AC Voltage | 2 V / 20 V / 200 V | ±(0.8%+5) |
| 750 V | ±(1.2%+10) | |
| DC Current | 200 µA / 2 mA / 20 mA / 200 mA / 20 A | ±(0.8%+10) |
| AC Current | 20 mA / 200 mA / 20 A | ±(2.0%+5) |
| Resistance | 200 Ω | ±(0.8%+5) |
| 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ | ±(0.8%+3) | |
| 20 MΩ | ±(1.0%+25) | |
| Capacitance | 2 nF | ±(5.0%+40) |
| 20 nF / 200 nF /2 µF / 20 µF / 200 µF | ±(2.5%+20) | |
| 2000 µF / 20 mF | ±(5.0%+10) | |
| Temperature | -20~1000 °C | <400°C±(1.0%+5) ≥400°C±(1.5%+15) |
| General Specifications | ||
| Power | 9 V battery (6F22) | |
| Input impedance | 10 MΩ | |
| Sampling rate | 3 times/s | |
| AC Frequency response | 40-1000 Hz | |
| Display | LCD, 61 × 36 mm | |
| Dimensions | 175 × 93 × 55 mm | |
| Weight | 400 g (with battery) | |

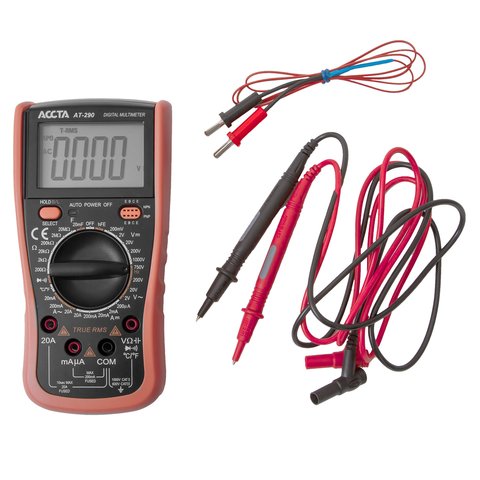

Package Contents
- Digital Multimeter Accta AT-290 — 1 pc.
- Test Leads — 1 set.
- Temperature Probe — 1 pc.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Multimeter type:
- Digital
Multimeter range selection:
- Manual range
Multimeter digit capacity:
- 2000
Multimeter DC voltage:
- Up to 1000 V
Multimeter AC voltage:
- Up to 750 V
Multimeter resistance:
- Up to 20 MOhm
Multimeter capacitance:
- Up to 20 000 µF
Multimeter DC:
- Up to 20 A
Multimeter AC:
- Up to 20 A
Multimeter frequency:
- Does not measure the frequency
Multimeter inductance:
- No
Multimeter temperature:
- Yes
Multimeter power:
- No
Multimeter duty cycle:
- No
Multimeter true RMS:
- Yes
Multimeter backlight:
- Yes
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- Yes
Multimeter continuity test:
- Yes
Multimeter NCV:
- No
Multimeter battery testing:
- No
