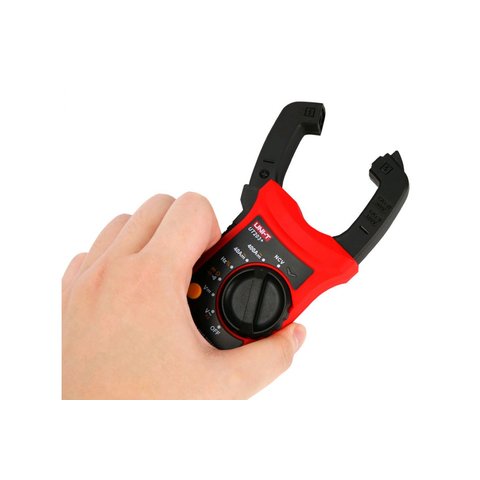

Digital Clamp Meter UNI-T UT203+
id: 897073
id: 897073 0.8 kg Warranty: 24 months
True RMS clamp meter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty ratio, continuity, and also may be used for diodes testing.
Add to wishlist
Compare
Compare
Buy wholesale and save
Frequently bought together
UNI-T UT203+ is a True RMS clamp meter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty ratio, continuity, and also may be used for diodes testing.
Features
- Functions:
- AC/DC current;
- AC/DC voltage;
- resistance;
- capacitance;
- frequency;
- duty ratio;
- continuity test;
- diode test.
- True RMS measurement.
- Audio visual NCV detection.
- Large LCD with backlight.
- Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
- The power consumption without backlight is about 1.8 mA. The circuit has an automatic power saving function. The consumption in sleep state is <11 μA, which extends the battery life to 400 hours.
- Low battery indication.
- Automatic power of after 15 of no-operation (function can be turned off).
- Data hold function.
- Max/Min mode.
- REL measurements.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
AC Current | 40 A / 400 A | ±(2%+5) |
DC Current | 40 A / 400 A | ±(2%+5) |
DC Voltage | 400 mV | ±(0.7%+3) |
4 V / 40 V / 400 V / 600 V | ±(0.5%+2) | |
AC Voltage | 4 V | ±(1%+5) |
40 V / 400 V / 600 V | ±(0.8%+5) | |
Resistance | 400 Ω | ±(1%+2) |
4 kΩ / 40 kΩ / 400 kΩ | ±(0.8%+2) | |
4 MΩ / 40 MΩ | ±(2.5%+5) | |
Capacitance | 40 nF / 400 nF / 4 μF / 40 μF / 400 μF | ±(4%+5) |
4 mF / 40 mF | ±10% | |
Frequency | 10 Hz ~ 10 MHz | ±(0.1%+4) |
Duty Ratio | 0.1% ~ 99% | ±(3%+5) |
General Specifications | ||
Display | 4099 count LCD | |
Max. jaw opening | 28 mm in diameter | |
Drop test | 1 m | |
Power | 1.5V battery AAA × 2 pcs. | |
Dimensions | 215 × 63.5 × 36 mm | |
Weight | 235 g (with batteries) |
User Manual
Download UNI-T UT203+ user manual.
Package Contents
- Digital Clamp Meter UNI-T UT203+ — 1 pc.
- Test Leads — 1 pair
- Case — 1 pc.
- User Manual — 1 pc.
Clamp meter digit capacity:
- 3999
Clamp meter type:
- For AC/DC
Clamp meter jaw diameter:
- Diameter 28 mm
Clamp meter DC voltage:
- Up to 600 V
Clamp meter AC voltage:
- Up to 600 V
Clamp meter resistance:
- Up to 40 MOhm
Clamp meter capacitance:
- Up to 40 000 μF
Clamp meter temperature:
- No
Clamp meter power:
- No
Clamp meter duty cycle:
- No
Clamp meter true RMS:
- Yes
Clamp meter PC connection:
- No connection to PC
Clamp meter analog bar graph:
- Yes
Clamp meter continuity test:
- Yes
Clamp meter DC:
- Up to 400 A
Clamp meter Three-phase voltage measurement:
- No
Clamp meter Three-phase current measurement:
- No
Clamp meter AC:
- Up to 400 A
Clamp meter frequency:
- Up to 60 kHz
Clamp meter NCV:
- Yes
