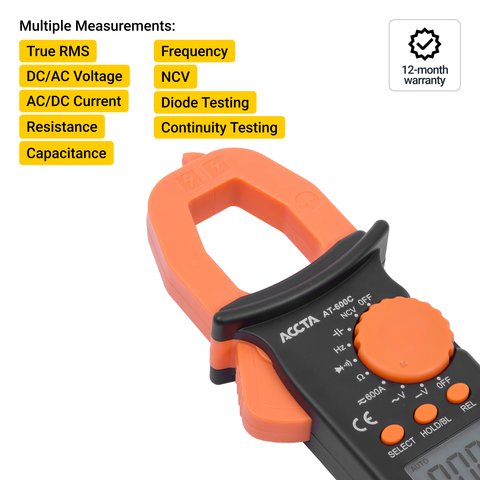

Digital Clamp Meter Accta AT-600C
Accta AT-600C is a digital True RMS clamp meter used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, NCV, and perform diode and continuity testing. The device is equipped with a large 3999 digit backlit LCD.
Features

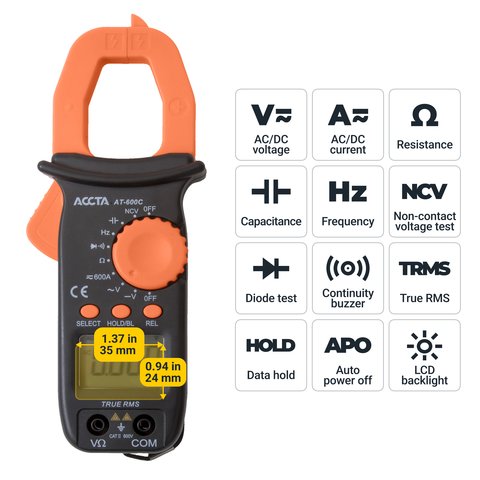

- Measurement functions:
- True RMS;
- DC/AC voltage;
- resistance;
- AC/DC current;
- capacitance;
- frequency;
- non-contact voltage test (NCV);
- diode testing;
- continuity testing.

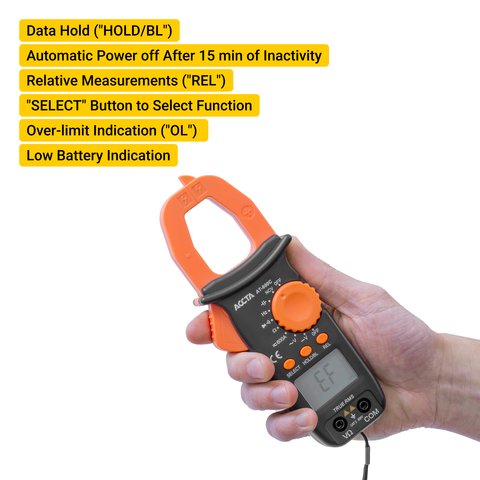

- Data hold ("HOLD/BL").
- Automatic power off after 15 minutes of inactivity.
- Relative measurements mode ("REL").
- Large LCD with backlight.
- "SELECT" button used to select the desired function.
- Low battery indication.
- Over limit indication ("OL").
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 400 mV / 4 V / 40 V / 400 V | ±(0,5% + 4) |
600 V | ±(1,0% + 6) | |
AC Voltage | 4 V / 40 V / 400 V | ±(0,8% + 10) |
600 V | ±(1,0% + 10) | |
Resistance | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ | ±(1,0% + 5) |
40 MΩ | ±(1,2% + 10) | |
AC Current | 40 A / 600 A | ±(2,5% + 8) |
DC Current | 40 A / 400 A / 600 A | ±(4,0% + 10) |
Frequency | 0 ~ 10 MHz | ±(0,3% + 3) |
Capacitance | 4 nF / 40 nF / 400 nF / 4 μF / 40 μF / 1000 μF | ±(5,0% + 8) |
General Specifications | ||
Display | 3999 digit, LCD | |

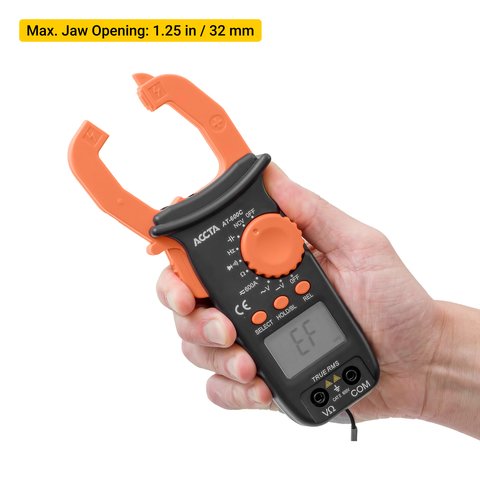

Diameter | 32 mm | |
Sampling rate | 3 times/s | |
Working temperature | 0..40°C at a humidity no more than 80% | |

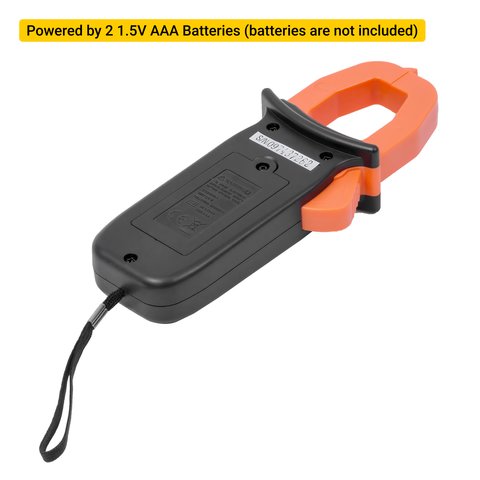

Power | AAA battery 1.5 V × 2 pcs. | |

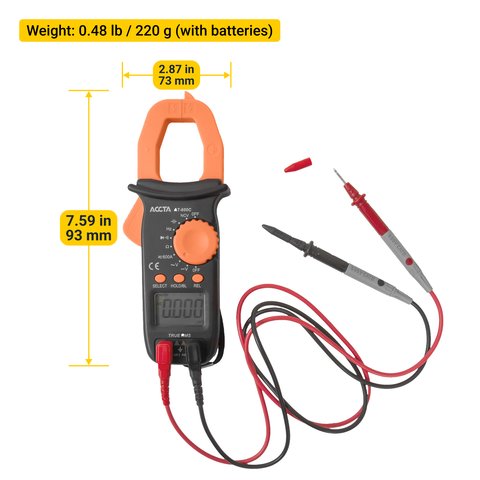

Dimensions | 193 × 73 × 37 mm | |
Weight | 220 g (with batteries) |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Digital Clamp Meter Accta AT-600C — 1 pc.

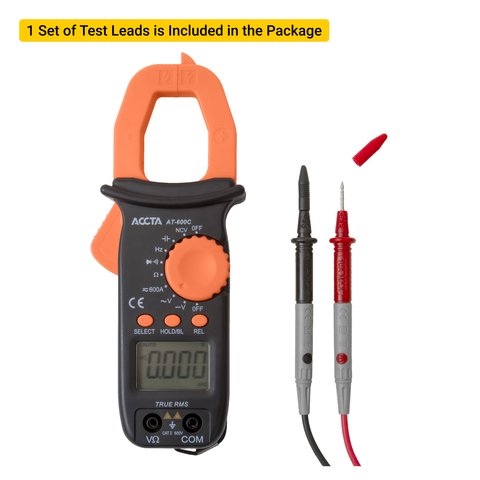

- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Clamp meter digit capacity:
- 3999
Clamp meter type:
- For AC/DC
Clamp meter DC voltage:
- Up to 600 V
Clamp meter AC voltage:
- Up to 600 V
Clamp meter resistance:
- Up to 40 MOhm
Clamp meter frequency:
- Up to 10 MHz
Clamp meter temperature:
- No
Clamp meter power:
- No
Clamp meter duty cycle:
- No
Clamp meter true RMS:
- Yes
Clamp meter backlight:
- Yes
Clamp meter PC connection:
- No connection to PC
Clamp meter diode test:
- Yes
Clamp meter analog bar graph:
- No
Clamp meter continuity test:
- Yes
Clamp meter DC:
- Up to 600 A
Clamp meter AC:
- Up to 600 A
Clamp meter Three-phase voltage measurement:
- No
Clamp meter Three-phase current measurement:
- No
Clamp meter jaw diameter:
- Diameter 32 mm
Clamp meter capacitance:
- Up to 1000 μF
Clamp meter NCV:
- Yes
