Digital Clamp Meter Accta AT-600A
Accta AT-600A is a digital True RMS clamp meter that can be used to measure AC/DC voltage, AC current, resistance, capacitance, and to perform diode and continuity testing. The device is equipped with a large 1999 count backlit LCD.
Features

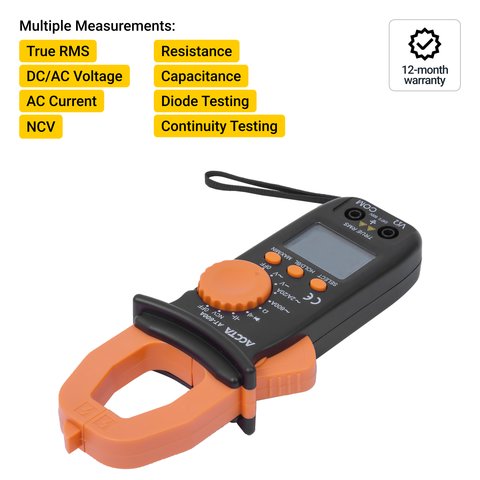

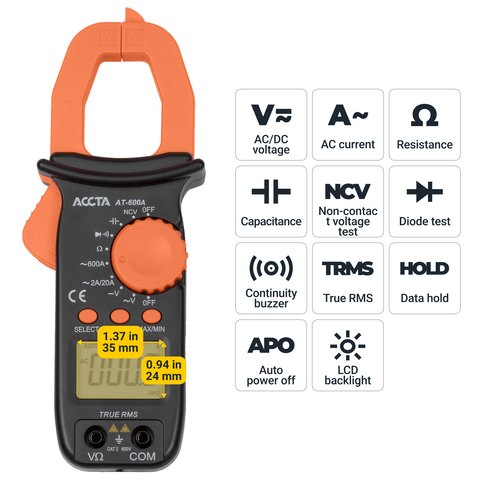

- Measurement functions:
- True RMS;
- DC/AC voltage;
- resistance;
- AC current;
- capacitance;
- non-contact voltage testing (NCV);
- diode testing;
- continuity testing.

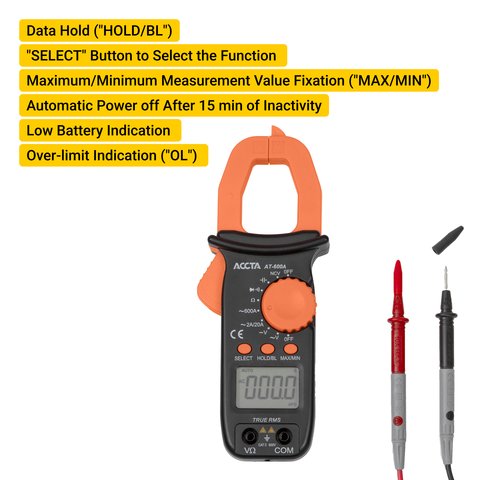

- Data hold ("HOLD/BL").
- Automatic power off after 15 minutes of inactivity
- LCD with backlight.
- "SELECT" button used to select the desired function.
- Maximum / minimum measurement value fixation ("MAX/MIN").
- Low battery indication.
- Over limit indication ("OL").
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0,8% + 10) |
600 V | ±(1,0% + 10) | |
AC Voltage | 2 V / 20 V / 200 V | ±(0,8% + 10) |
600 V | ±(1,0% + 10) | |
Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ | ±(1,0% + 5) |
20 MΩ | ±(1,2% + 10) | |
AC Current | 2 A / 20 A / 200 A / 600 A | ±(2,5% + 8) |
Capacitance | 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 1000 μF | ±(5,0% + 8) |
General Specifications | ||
Display | 1999 digit LCD | |

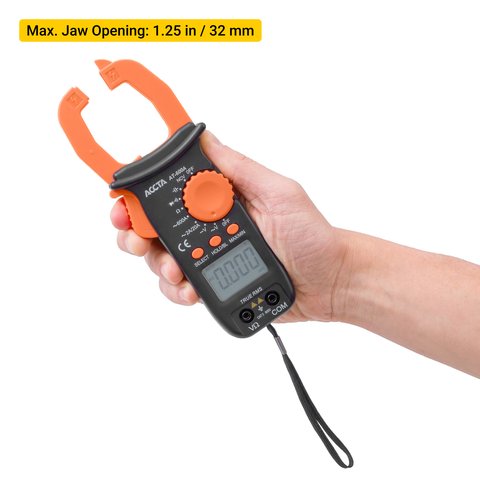

Diameter | 32 mm | |
Sampling rate | 3 times/s | |
Working temperature | 0..40°C at a humidity no more than 80% | |
Power | AAA battery 1.5 V × 2 pcs. | |

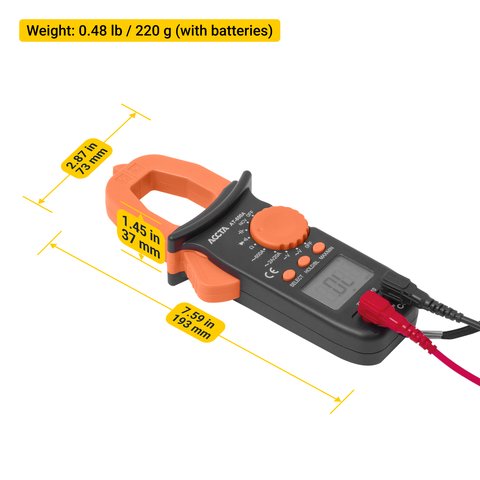

Dimensions | 193 × 73 × 37 mm | |
Weight | 220 g (with batteries) |
Video
You'll find even more video reviews in the Video tab. Go and check it out!

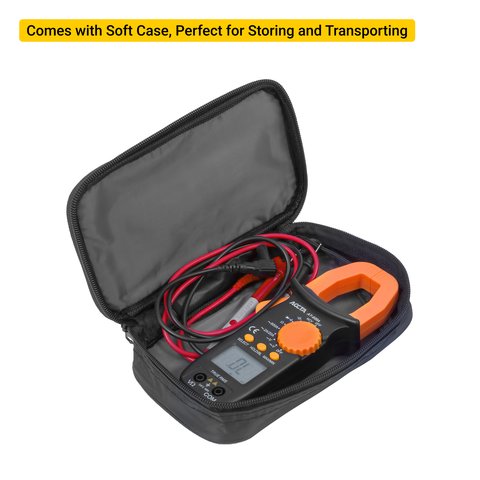

Package Contents
- Digital Clamp Meter Accta AT-600A — 1 pc.

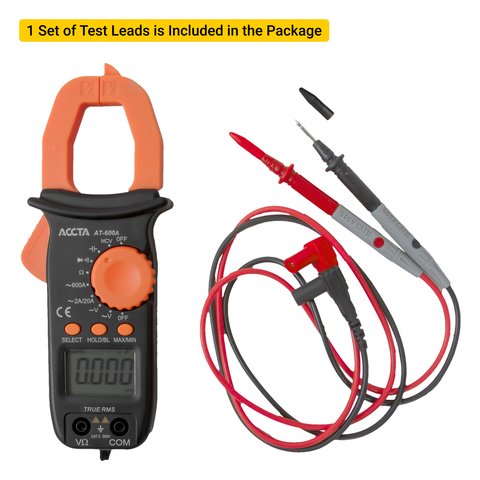

- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Clamp meter digit capacity:
- 1999
Clamp meter type:
- For AC
Clamp meter DC voltage:
- Up to 600 V
Clamp meter AC voltage:
- Up to 600 V
Clamp meter resistance:
- Up to 20 MOhm
Clamp meter DC:
- Does not measure the DC
Clamp meter frequency:
- Does not measure the frequency
Clamp meter temperature:
- No
Clamp meter power:
- No
Clamp meter duty cycle:
- No
Clamp meter true RMS:
- Yes
Clamp meter backlight:
- Yes
Clamp meter PC connection:
- No connection to PC
Clamp meter diode test:
- Yes
Clamp meter analog bar graph:
- No
Clamp meter continuity test:
- Yes
Clamp meter AC:
- Up to 600 A
Clamp meter Three-phase voltage measurement:
- No
Clamp meter Three-phase current measurement:
- No
Clamp meter jaw diameter:
- Diameter 32 mm
Clamp meter capacitance:
- Up to 1000 μF
Clamp meter NCV:
- Yes
