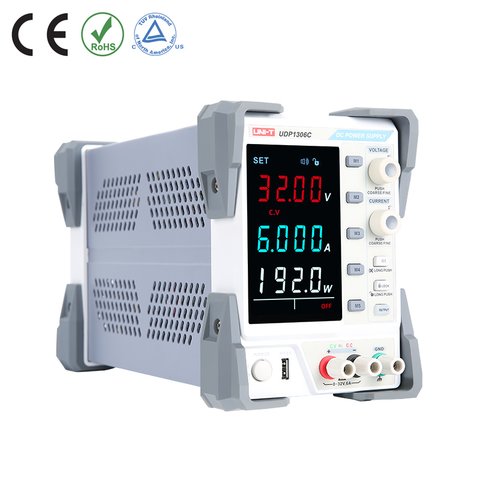

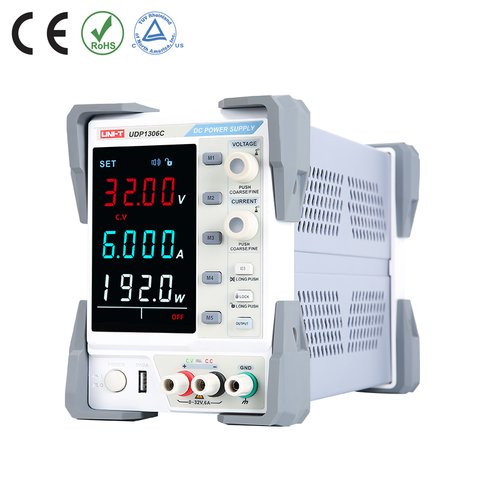

DC Power Supply UNI-T UDP1306C
id: 894017
DC Power Supply UNI-T UDP1306C
General information
Warranty
USD 165.00
General information
9.78 kg Warranty: 24 months
Single-channel industrial DC power supply with two groups of independent outputs: the adjustable output of 32V/6A and the fixed output of 5V/2A.
USD 165.00
Buy wholesale and save
UNI-T UDP1306C is a single-channel industrial DC power supply with two groups of independent outputs: the adjustable output of 32V/6A, which has the constant voltage (CV) and constant current (CC) modes, and the fixed output of 5V/2A with protection features of short circuit and overvoltage.
Features
- 4-digit high precision display.
- OVP OCP OTP protection.
- Output setting viewable.
- Remote control (output ON/OFF).
- Shutdown memory/keypad lock.
- Intelligent cooling fan.
- USB charging interface.
- RS232 program-controlled communication.
- 5 sets of data storage.
Technical Specifications
| Output voltage (CH1/CH2) | 0~32 V | |
| Output current (CH1/CH2) | 0~6 A | |
| Output power | 192 W | |
| Resolution | Voltage | 10 mV |
| Current | 1 mA | |
| Load regulation | Voltage | <0.01%+5 mV |
| Current | <0.1%+10 mA | |
| Power regulation | Voltage | <0.01%+3 mV |
| Current | <0.1%+3 mA | |
| Setting accuracy (25°C±5°C) | Voltage | <0.5%+20 mV |
| Current | <0.5%+10 mA | |
| Ripple and noise (20 Hz ~ 20 Hz) | Voltage | ≤2 mVrms |
| Current | ≤3 mArms | |
| Temperature coefficient | Current/Voltage: ≤300ppm/°C | |
| Voltage rising/falling time delay | ≤100 ms (10% rated load) | |

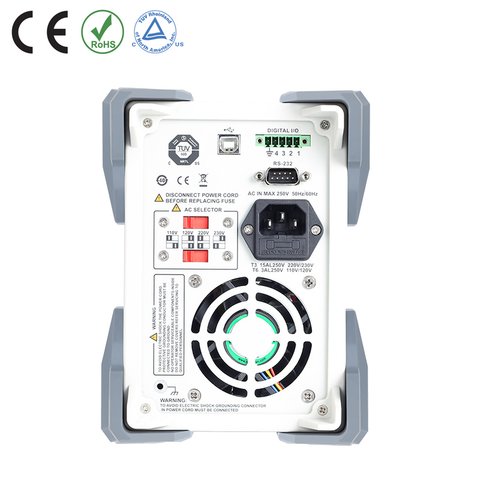

| Interfaces | USB Host (5V/2A), USB Device, RS-232 | |
| General Characteristics | ||
|---|---|---|
| Power | AC 100 V/120 V/220 V/230 V±10%, 50 Hz/60 Hz | |
| Weight | 7.5 kg | |
| Dimensions | 136 mm × 194 mm × 327 mm | |
User Manual
Download UNI-T UDP1306C User Manual.
Package Contents
- DC Power Supply UNI-T UDP1306C — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- Output Cable — 1 pc.
Laboratory power supply type:
- Transformer
Laboratory power supply number of channels:
- Single-channel
Laboratory power supply indicator type:
- LED indicators
Laboratory power supply Max. voltage:
- Up to 32 V
Laboratory power supply Max. current:
- Up to 6 A
Laboratory power supply maximum power:
- 192 W
