Current Oscilloscope Probe RIGOL RP1001C
General information
Warranty
USD 825.00
General information
Enables a general purpose oscilloscope to display AC and DC current signals up to 100 A peak (70 A RMS), as well as make AC and DC measurements with a multimeter.
USD 825.00
Buy wholesale and save
RIGOL RP1001C Current Oscilloscope Probe enables a general purpose oscilloscope to display AC and DC current signals up to 100 A Peak (70 A RMS). The RP1001C current probe can also make AC and DC measurements with a multimeter by using the BNC-to-banana plug adapter.
Features
- Bandwidth: DC to 300 kHz
- Maximum DC Current: ±100 A
- Maximum AC Current: 200 A p-p, 70A rms
- Compatible with all RIGOL oscilloscopes
- Battery charge indication (up to 6.5 V)
Technical Specifications
| Type | AC/DC |
| Battery Type | 9 V |
| Current Range | 10mV/A - 100mV/A |
| Maximum Bandwidth | 300 kHz |
| Working Temperature | from 0° to +50° C |
| Dimensions | 280 × 70 × 32 mm |
| Weight | 260 g |
User Manual
Download RIGOL RP1001C user manual.

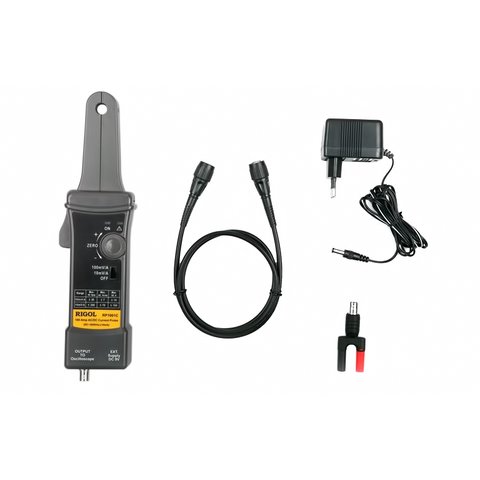

Package Contents
- RIGOL RP1001C Current Probe — 1 pc.
- Dual-BNC Coaxial Cable — 1 pc.
- A BNC-to-Banana Plug Adapter — 1 pc.
- Power Adapter — 1 pc.
