Cable Locator UNI-T UT25CL
id: 917444
Cable Locator UNI-T UT25CL
General information
Video
Warranty
Price coming soon
General information
Video
0.7 kg Warranty: 24 months
Designed for tracing underground low-voltage cables, diagnosing breaks and short circuits, as well as checking for the presence of voltage (up to 400 V)
Price coming soon

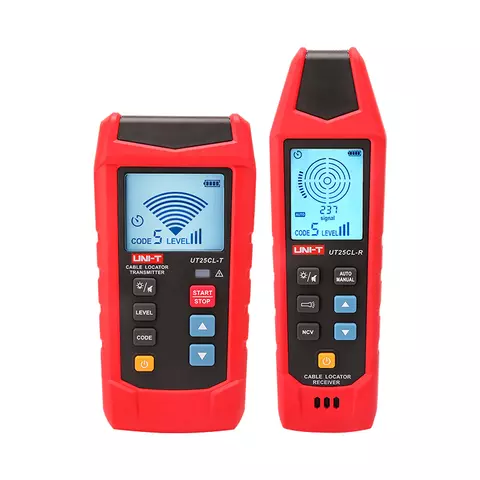

UNI-T UT25CL cable locatoris a powerful device consisting of a transmitter and receiver. With state-of-the-art sensors, it effortlessly tracks cables and wires, saving you time and preventing accidental damage during installations or repairs.
This tool detects conductors, identifies interruptions or short circuits, traces underground cables, and locates fuses and associated devices. It also detects short circuits and open circuits in underfloor heating, traces metal water pipes and heating pipelines, and supports up to 8 transmitters.
It is perfect for residential or commercial projects.
Features
- Finding conductors inside walls, detecting conductor interruptions or short circuits
- Tracing underground cable paths
- Locating fuses and devices associated with the fuses
- Identifying short circuits and open circuits in underfloor heating
- Tracing metal water pipes and metal heating pipelines
- Adjustable sensitivity (receiver: 3 levels, transmitter: 9 levels)
- Flashlight and backlight functions
- Automatic shutdown function
- One receiver can support up to 8 transmitters
- Energized wire detection: up to 480 V (AC/DC)
- LED and buzzer indications
- CE, RoHS certified
Technical Specifications

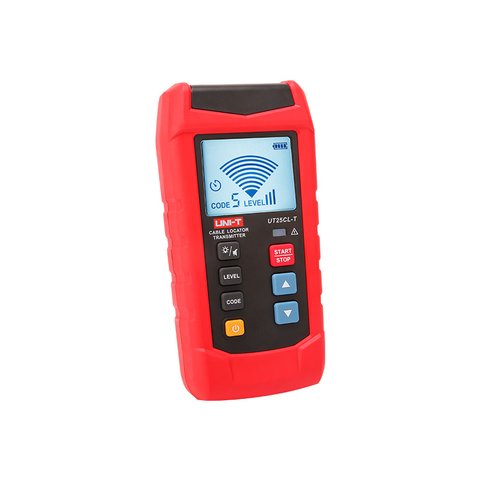

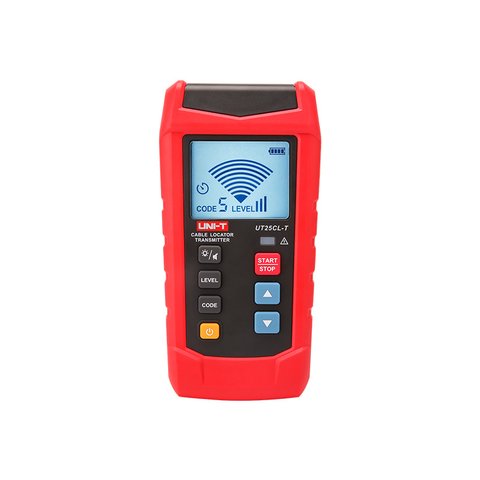

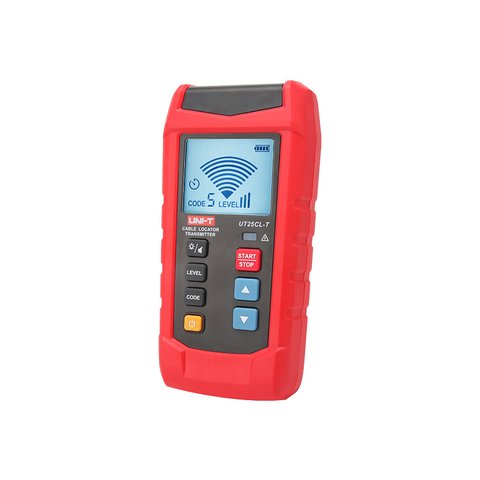

| Transmitter | |
|---|---|
| Output Signal | 33 kHz |
| Energized Wire Voltage Ragne | AC/DC 8~480 V; AC: 50/60 Hz/ 2.5% ±3 deg. |
| Screen | segment code LCD (TN; translucent) |
| Backlight | available |
| Code Value | 0, 1, 2, 3, 4, 5, 6, 7 |
| Signal Strength | three level: 1, 2, 3 |
| Unipolar Test | available (energized wire test, max voltage 480 V) |
| Bipolar Test | available (energized wire test, max voltage 480 V) |
| ELV LED Indicator | 1. If the input voltage exceeds 25 V, the ELV LED turns on; 2. As the voltage rises, the brightness of the ELV LED increases; 3. In any other case, the ELV LED will be dim or not illuminated |
| Dimensions | 189 mm × 96 mm × 48 mm |
| Weight | about 389 g (without batteries), about 528 g (with batteries) |

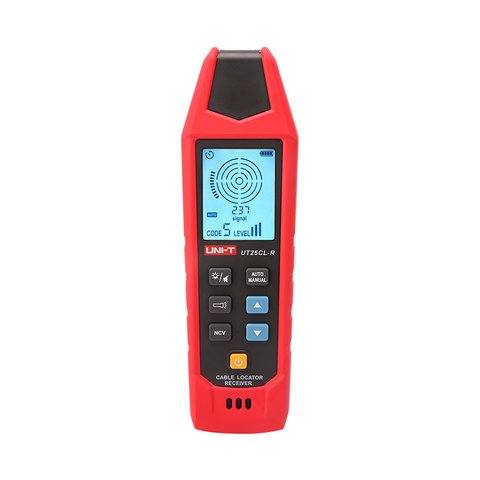

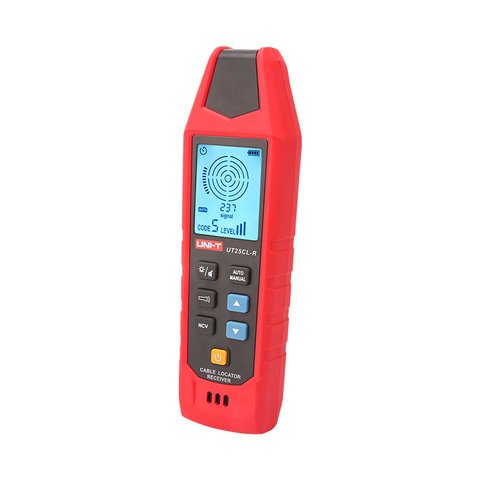

| Receiver | |
| Receiving Frequency | 33 kHz |
| Tracing Depth | around 0~2.5 m (unipolar mode; single-circuit: 2.5 m) around 0~0.5 m (bipolar mode) |
| NCV Voltage Range | 80 V ~ 1000 V, 50 Hz/60 Hz |
| Voltage Detection Depth | around 0~0.4 m |
| Code Value | 0, 1, 2, 3, 4, 5, 6, 7 |
| Signal Strength | three level: 1, 2, 3 |
| Multi-Transmitors Compatible | available, up to 8 pcs. |
| Screen | segment code LCD (TN; Translucent) |
| Dimensions | 226 mm × 68 mm × 38 mm |
| Weight | about 287 g (without batteries), about 354 g (with batteries) |
| General Specifications | |
| Other Functions | flash light, backlight, manual sensitivity adjustment |
| Over Voltage Category | CAT III 480V |
| Pollution Rating | 2 |
| IP Rating | IP54 |
| Certificates | CE, RoHS |
Video
User Manual
Download UNI-T UT25CL User Manual.

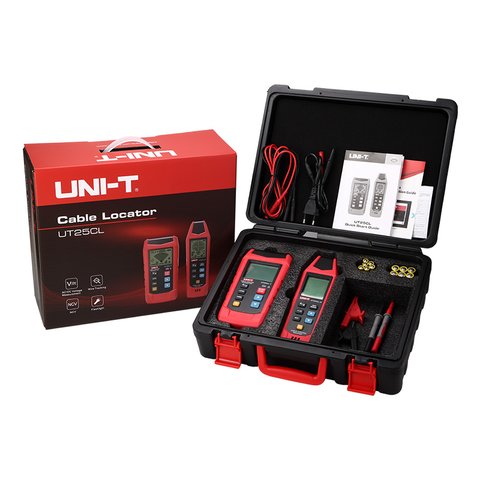

Package Contents
- Transmitter — 1 pc.
- Receiver — 1 pc.
- Dual In-line Test Leads (red + black) — 1 pair
- Alligator Clips (red + black) — 1 set
- Lantern-tip Test Probe (red + black) — 1 pair
- AC Polarized Plug Wire — 1 pc.
- Quick Quide Start — 1 pc.
- 1.5V AA Alkaline Battery — 6 pcs.
- 1.5V AAA Alkaline Battery — 6 pcs.
