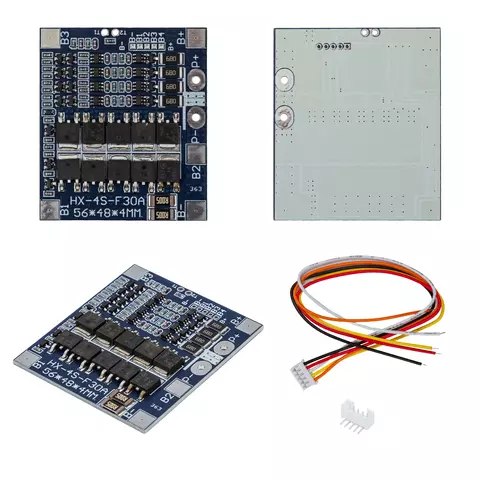

BMS Controller 4S, (30 A, 14.8 V, for LiFePo4 batteries) #HX-4S-F30A

Name: BMS Controller 4S, (30 A, 14.8 V, for LiFePo4 batteries) #HX-4S-F30A
SKU: 919423
Availability: OutOfStock

id: 919423

General information

Warranty

Price coming soon

General information

BMS Controller 4S, (30 A, 14.8 V, for LiFePo4 batteries) #HX-4S-F30A

0.02 kg Warranty: 3 months

Controller for four cells of a LiFePo4 battery with a balancing function.

Сила струму:

3 A 5 A 8 A 10 A 15 A 25 A

30 A

40 A 60 A 80 A 100 A 120 A 150 A 200 A 300 A

Voltage:

3.7 V 7.4 V 12.6 V

14.8 V

16 V 16.8 V 21 V

Type:

Li-ion Li-Polymer

LiFePO4

LTO

Price coming soon

Impossible to estimate the shipping cost

BMS controller 4S-F30A is a device for charging and discharging the battery with a built-in balancing cable, which allows you to evenly distribute the voltage for each cell. It has a built-in connector for the battery and power source. It is protected from overvoltage, low voltage, short circuit, overheating and overload.

Features

Balance function for even distribution of battery charge and discharge
Protection from overvoltage, low voltage, short circuit, overheating and overload
Compact dimension

Technical specifications

Operating voltage	14.8 - 16.8 V
Charge Cutoff Voltage	4.25 ± 0.05 V
Discharge Cutoff Voltage	2.25 ± 0.05 V
Maximum charging current	30 A
Dimension	56 × 45 × 3.6 mm
Batteries	4S (14.8 - 16.8 V)
