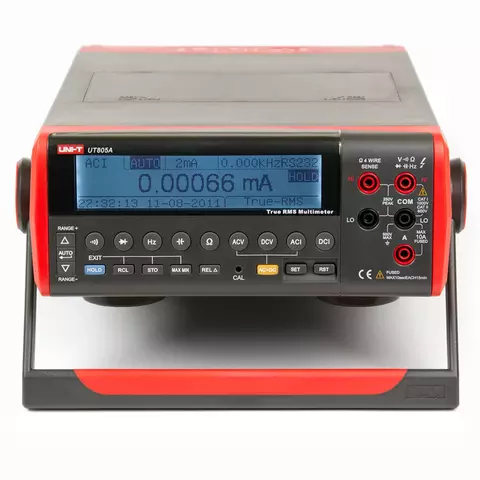

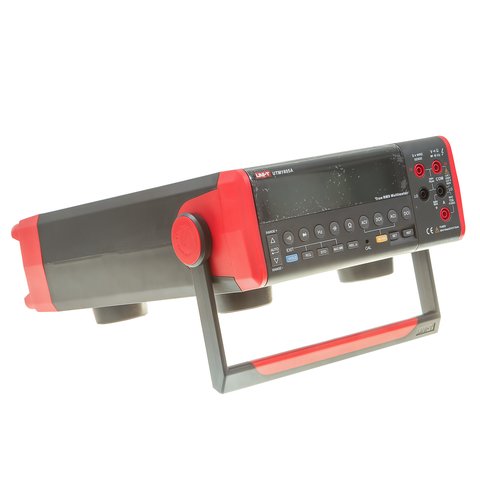

Bench Type Digital Multimeter UNI-T UT805A
General information
This UNI-T UT805A bench type digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and can be used for continuity and diode tests.
Features
- Measurement functions:
- AC/DC voltage
- AC/DC current
- capacitance
- resistance
- frequency
- diode test
- continuity test
- Auto ranging
- Data hold
- Low battery indication
Video Review
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | 199999 digit LCD, backlight, 128 × 28 mm | |
| DC voltage | Range | 200 mV / 2 V / 20 V / 200 V / 1000 V |
| Accuracy | ±(0.015%+3) | |
| AC voltage | Range | 2 V / 20 V / 200 V / 750 V |
| Accuracy | ±(0.2%+100) | |
| DC current | Range | 2 mA / 200 mA / 10 A |
| Accuracy | ±(0.03%+10) | |
| AC current | Range | 2 mA / 200 mA / 10 A |
| Accuracy | ±(0.3%+100) | |
| Resistance | Range | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
| Accuracy | ±(0.02%+6) | |
| Capacitance | Range | 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF |
| Accuracy | ±(2%+5) | |
| Frequency | Range | 10 Hz ~ 60 MHz |
| Accuracy | ±(0.1%+3) | |
| Power | AC 220 V / 50 Hz | |
| Dimensions | 300 × 245 × 105 mm | |
| Weight | 2.4 kg | |
User Manual
Download UNI-T UT805A User Manual.
Sofware
Download UNI-T UT805A Sofware.

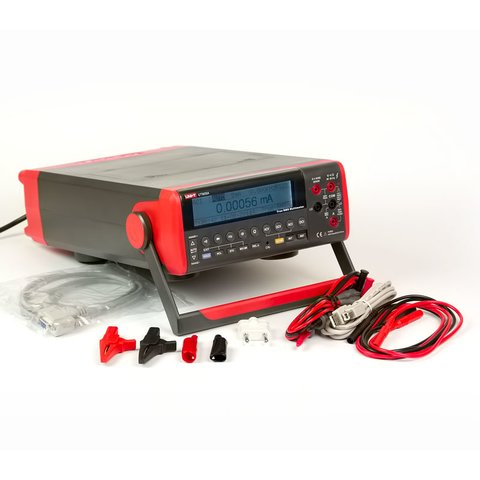

Package Contains
- Multimeter UNI-T UT805A (1 pc.)
- Test lead (1 pc.)
- Test line (1 pc.)
- Multi-purpose socket (1 pc.)
- RS232C interface cable (1 pc.)
- USB interface cable (1 pc.)

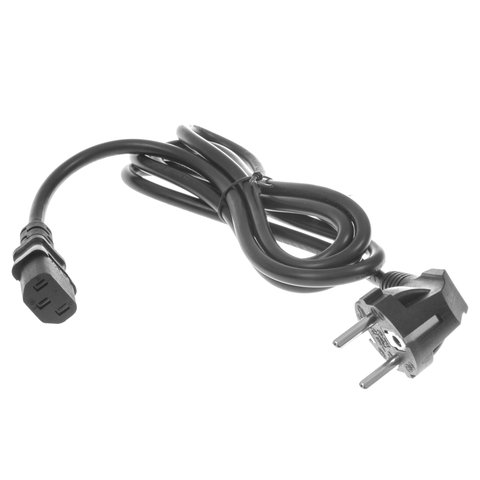

- AC 220 V power cord (1 pc.)
- User manual (1 pc.)
Multimeter type:
- Digital
- Desktop
Multimeter range selection:
- Auto range
Multimeter digit capacity:
- 199 999
Multimeter DC voltage:
- Up to 1000 V
Multimeter AC voltage:
- Up to 750 V
Multimeter resistance:
- Up to 20 MOhm
Multimeter capacitance:
- Up to 6000 μF
Multimeter frequency:
- Up to 60 MHz
Multimeter DC:
- Up to 10 A
Multimeter AC:
- Up to 10 A
Multimeter inductance:
- No
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter duty cycle:
- No
Multimeter true RMS:
- Yes
Multimeter backlight:
- Yes
Multimeter PC connection:
- USB
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- No
Multimeter continuity test:
- Yes
Multimeter NCV:
- No
Multimeter battery testing:
- No
