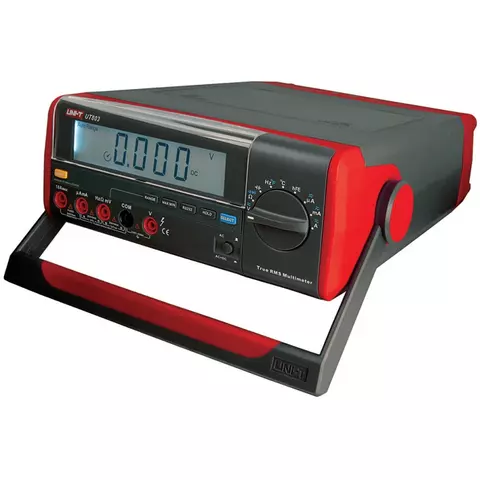

Bench Type Digital Multimeter UNI-T UT803
Frequently bought together
UNI-T UT803 is a bench type digital multimeter which is designed for measuring AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature and can be used for continuity and diode tests.
Features
- Measurement functions:
- AC/DC voltage
- AC/DC current
- capacitance
- resistance
- frequency
- continuity test
- diode test
- Auto ranging
- Data hold
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Techical Specifications
| Display | 5999 digit LCD, backlight, 128 x 28 mm | |
| DC voltage | Range | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| Accuracy | ±(0.3%+2) | |
| AC voltage | Range | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| Accuracy | ±(0.6%+5) | |
| DC current | Range | 600 µA / 6000 µA / 60 mA / 600 mA / 10 A |
| Accuracy | ±(0.5%+3) | |
| AC current | Range | 600 µA / 6000 µA / 60 mA / 600 mA / 10 A |
| Accuracy | ±(1%+5) | |
| Resistance | Range | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ |
| Accuracy | ±(0.5%+2) | |
| Capacitance | Range | 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF |
| Accuracy | ±(2%+5) | |
| Frequency | Range | 6 kHz / 60 kHz / 600 kHz / 6 MHz / 60 MHz |
| Accuracy | ±(0.1%+3) | |
| Temperature | Range | -40 °C ~ 1000 °C |
| Accuracy | ±(1%+3) | |
| Interface | USB, RS232C | |
| Power | AC 220 V / 50 Hz or 1.5 V battery(R14) x 6 | |
| Dimensions | 310 x 240 x 105 mm | |
| Weight | 2.4 kg | |
User Manual
Download UNI-T UT803 bench type digital multimeter user manualSoftware
Download UNI-T UT803 bench type digital multimeter softwarePackage Contents
- UNI-T UT803 multimeter module (1 pc.)
- Test lead (1 pair)
- Temperature probe (1 pc.)
- Multi-purpose socket (1 pc.)
- Power cable (1 pc.)
- USB interface cable (1 pc.)
- User manual
Note! Batteries are not included in the package.
Multimeter type:
- Digital
- Desktop
Multimeter range selection:
- Auto range
Multimeter digit capacity:
- 5999
Multimeter DC voltage:
- Up to 1000 V
Multimeter AC voltage:
- Up to 1000 V
Multimeter resistance:
- Up to 60 MOhm
Multimeter capacitance:
- Up to 6000 μF
Multimeter frequency:
- Up to 60 MHz
Multimeter DC:
- Up to 10 A
Multimeter AC:
- Up to 10 A
Multimeter inductance:
- No
Multimeter temperature:
- Yes
Multimeter power:
- No
Multimeter duty cycle:
- No
Multimeter true RMS:
- No
Multimeter backlight:
- Yes
Multimeter PC connection:
- USB
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- Yes
Multimeter continuity test:
- Yes
Multimeter NCV:
- No
Multimeter battery testing:
- No
