Battery Tester HIOKI BT3554-51

Name: Battery Tester HIOKI BT3554-51
Brand: HIOKI
SKU: 920589
Availability: OutOfStock

id: 920589

General information

Video

Warranty

Price coming soon

General information

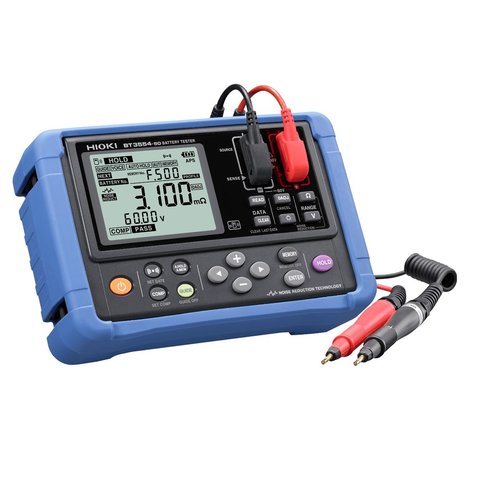

Battery Tester HIOKI BT3554-51 Preview 1

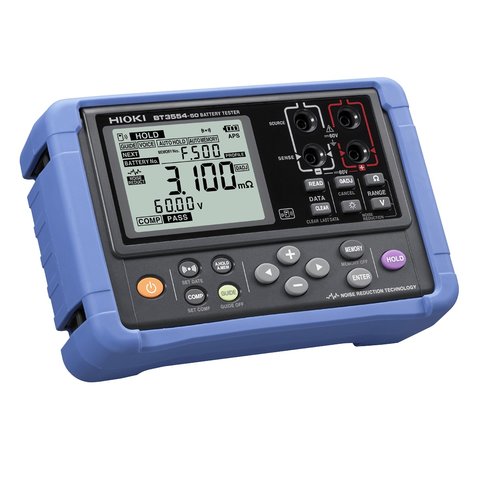

Battery Tester HIOKI BT3554-51 Preview 2

Battery Tester HIOKI BT3554-51 Preview 3

Video

Compact battery tester for measuring internal resistance, voltage, and terminal temperature of lead-acid and rechargeable batteries. The 9465-10 Pin Type Lead included

Price coming soon

Impossible to estimate the shipping cost

HIOKI BT3554-51 is a compact battery tester for measuring internal resistance, voltage, and terminal temperature of lead-acid and rechargeable batteries. It ensures accurate results using AC technology and allows up to 6000 data sets with profile information to be stored. Data can be transferred via USB or wirelessly with the optional Z3210 adapter.

The tester features a comparator function for evaluating battery health, automatic hold and memory for efficient data handling, and noise reduction for stable readings in noisy environments. It enables live system measurements without UPS shutdowns. Included with the 9465-10 Pin Type Lead, it supports optional accessories for enhanced functionality, making it an essential tool for battery diagnostics.

Features

Battery measurement can be performed while the battery is connected to its host device, without taking it offline
Noise reduction technology improves noise resistance
Accurately assess lead-acid battery deterioration using proprietary technology
Enjoy measurement guidance and easy data management functionality with the latest software
Get results in as fast as 2 seconds
Generating comparative judgments based on a lead-acid battery’s internal resistance and voltage
Saving data easily just by placing the leads in contact with a battery’s terminals
New leads for more convenient measurement in distribution panels and other confined locations
New protector delivers better ergonomic hold and durability in the field
Wall and shoulder straps let you work with both hands
The optional Wireless Adapter Z3210 is required in order to use the measurement and recording guidance function as well as other functions that communicate with smartphones or tablets

Technical Specifications

General Specifications
Measurement parameters	Battery internal resistance measurement Battery terminal voltage measurement (DC voltage only) Temperature measurement
Measurement time	100 ms
Response time	Approx. 1.6 s
Location of use	Indoors, Level 2 pollution, maximum elevation of 2000 m (6562 ft.)
Operating temperature and humidity range	Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 80% RH or less (non-condensing)
Storage temperature and humidity range	Temperature: -10°C to 50°C (14°F to 122°F) Humidity: 80% RH or less (non-condensing)
Power supply	Size AA alkaline battery (LR6) × 8 Rated supply voltage: 1.5 V DC × 8 (Nickel metal hydride batteries may be used. However, the battery life display is not supported in this configuration)
Continuous operating time	About 8.3 hr. (without Z3210 installed) About 8.2 hr. (with Z3210 installed and wireless communications active)
Standard compliance	Safety: EN 61010-2-030 EMC: EN 61326-1
Dimensions	199W × 132H × 60.6D mm (7.83"W × 5.20"H × 2.39"D) (with Protector Z5041 installed)
Weight	960 g (33.9 oz.) (including batteries and Protector Z5041)
Communications interface	USB Wireless communications (when Z3210 installed)
Product warranty	3 years
Fuse	250 V, F 630 mAH (Littelfuse model 216.630) (1 fuse is built into the device)
Accuracy Specifications
Accuracy guaranteed conditions	Accuracy guarantee duration: 1 year Accuracy guarantee temperature and humidity range: 23°C ±5°C (73°F ±9F°), 80% RH or less Warm-up time: none
Resistance measurement accuracy	Measurement current accuracy: ±10% Measurement current frequency: 1 kHz ±30 Hz With noise frequency avoidance function enabled, 1 kHz ±80 Hz
	Range	Maximum display	Resolution	Measurement accuracy	Measurement current
	3 mΩ	3.100 mΩ	1 μΩ	±1.0% rdg ±8 dgt*	160 mA
	30 mΩ	31.00 mΩ	10 μΩ	±0.8% rdg ±6 dgt	160 mA
	300 mΩ	310.0 mΩ	100 μΩ		16 mA
	3 Ω	3.100 Ω	1 mΩ		1.6 mA
	When using test leads other than recommended accessories or optional models, or when using extended test leads, accuracy is only guaranteed after performing zero adjustment When a test lead other than those made by Hioki is used, the accuracy and proper operation cannot be guaranteed
	*Add the following values to the measurement accuracy as influence values if zero adjustment has not been performed in the 3 mΩ range (reference values): ±5 dgt
	*Use the included zero-adjustment board or the Z5038 0 Adj. Board to perform zero adjustment
Voltage measurement accuracy	Range		Maximum display	Resolution	Measurement accuracy
	6 V		±6.000 V	1 mV	±0.08% rdg ±6 dgt
	60 V		±60.00 V	10 mV	±0.08% rdg ±6 dgt
Comparator Function
Comparator	Compares measured values with set threshold values to make judgments and reports them to the user. Judgment notification method: Results are displayed as shown below (segment) and beeping tones sound
		Resistance value (low)		Resistance value (medium)	Resistance value (high)
	Voltage value (high)	PASS		WARNING	FAIL
	Voltage value (low)	WARNING		WARNING	FAIL
	If the judgment result is WARNING or FAIL, the audio tone is accompanied by a red backlight. User-selectable voltage judgment method ·ABS (absolute value judgment) ·POL (polarity judgment ) Savable settings: 200 tables
