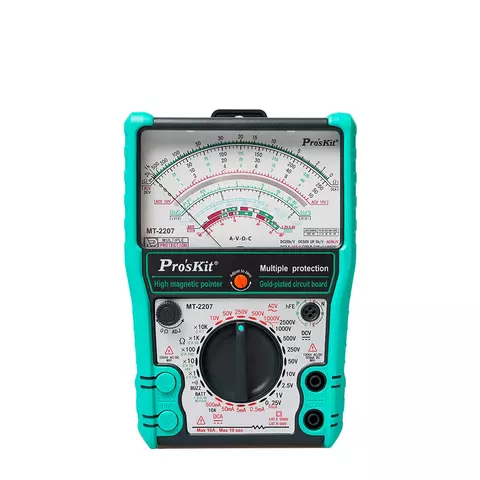

Analog Multimeter Pro'sKit MT-2207
General information
Pro'sKit MT-2207 is an accurate and safe analog multimeter with a mirrored aluminum dial, a sturdy protective holster, and a hook-up design. The MT-2207 provides accurate and reliable measurements of DC/AC voltage, DC current, resistance, capacitance, and continuity. The device can also be used for testing diodes, LEDs, batteries, and transistors.
The multimeter uses a double-sided glass epoxy resin PCB and is fully protected against overload and misuse with two fuses, a voltage limiter, and diodes. In addition, it is equipped with intelligent resistance testing protection, including an additional fuse and varistor. Ideal for use in laboratories, schools, workshops, and at home.
Features
- Quick response.
- Multifunctional.
- Accurately measures DC/AC voltage, DC current, resistance, capacitance and decibels.
- Durable protective case and stand for desktop use.
- Test leads 1000V/10A.
- CATII 1000V/ CATII 500V.
Technical Specifications
| DC Voltage | 0.25V / 1V / 2.5V / 10V / 50V / 250V / 500V, ±3% FSD 1000V (2500 V), ±4% FSD |
| AC Voltage | 10V / 50V / 250V / 500V, ±4% FSD 1000V (2500V), ±5% FSD |
| DC Current | 50µA / 0.5mA / 50mA / 500mA, ±3% FSD 10 A, ±4% FSD |
| Resistance | X1: 0.2 ~ 2kΩ / X10: 2 ~ 20kΩ / X100: 20 ~ 200kΩ / X1K: 200 ~ 2MΩ / X10K: 2kΩ ~ 20MΩ, ±4% ARC of scale length |
| Capacitance | Cx1: 50µF/Cx10: 500µF/Cx100: 5000µF/Cx1K and Cx10K |
| Continuity with Beeper | <50Ω |
| HFE Test | available |
| Diodes and LEDs Test | available |
| Battery Check | 1.2V-3.6V |
| Infrared Signal Detection | no |
| Decibel | -22dB~+62dB |
| Fuse | 0.5 A/250 V, 10 A/250 V, Φ5 × 20 mm |
| Power Source | AAA 1.5V (2 pcs.) |
| Dimensions | 179 mm × 118 mm × 50 mm |
| Weight | 400 g |
Video
User Manual
Download Pro'sKit MT-2207 user manual.
Package Contents
- Analog Multimeter Pro'sKit MT-2207 — 1 pc.
- Test Leads — 1 pc.
- User Manual — 1 pc.
Multimeter DC voltage:
- Up to 1000 V
Multimeter AC voltage:
- Up to 1000 V
Multimeter resistance:
- Up to 20 MOhm
Multimeter DC:
- Up to 10 A
Multimeter AC:
- Does not measure the AC
Multimeter frequency:
- Does not measure the frequency
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter backlight:
- No
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- No
Multimeter analog bar graph:
- No
Multimeter transistor check:
- Yes
Multimeter continuity test:
- Yes
Multimeter digit capacity:
- Analog
Multimeter NCV:
- No
Multimeter battery testing:
- No
