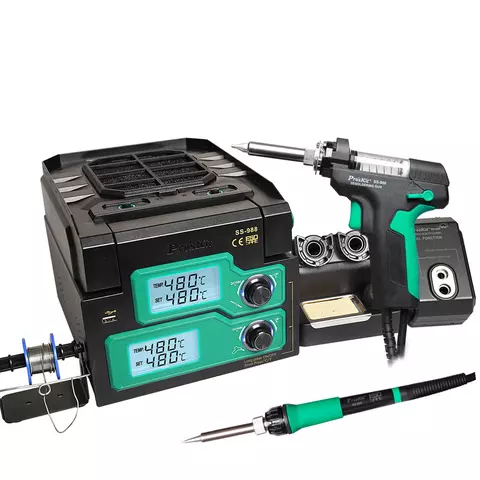

6 in 1 Multifunction Soldering iron/Desoldering Station Pro'sKit SS-988B
id: 906464
6 in 1 Multifunction Soldering iron/Desoldering Station Pro'sKit SS-988B
General information
Warranty
Price coming soon
General information
5.4 kg Warranty: 6 months
Multifunctional tabletop repair station that combines the functions of a soldering iron, a desoldering gun, a smoke absorber, and a soldering tip cleaner.
Price coming soon
Pro'sKit SS-988B is a multifunctional repair station that combines the functions of a soldering iron, a desoldering gun, a smoke absorber, and a soldering tip cleaner. This station has a microprocessor control system, and a smart temperature control function, which ensures fast heating up, and temperature recovery.
Features
- Microprocessor control system.
- Digital temperature control.
- Fast heat up and temperature recovery.
- Desoldering gun with a powerful built-in vacuum pump.
- 60W soldering iron with a ceramic heater and temperature range 160°C ~ 480°C. Heats up to 300°C in 22 seconds. Compatible with 5SI-216N series of soldering tips.
- Sleep mode: place the soldering iron/desoldering gun on the stand for 10 minutes, and the station will auto sleep and decrease the temperature down to 200°C. Pick up the soldering iron/desoldering gun, and it will auto wake up.
- The adjustable smoke absorber comes with two removable carbon filters and a set of filter sponges.
- The tip cleaner with an infrared sensor and an auto cleaning function removes solder and oxide residue.
- The display backlight changes from orange to white when the set temperature is reached.
- The USB port provides 5V/1A output power that can be used to power smartphones and other equipment.
- ESD protection.
- Soldering accessories included: three cleaning pins, a soldering wire reel, and three desoldering gun nozzles.
- Soldering iron stand with cleaning ball and sponge.
Technical Specifications
| Voltage | AC 220-240 V, 50 Hz |
| Power consumption | 250 W |
| USB output | DC 5 V/1 A |
| Soldering iron/Desoldering gun | |
|---|---|
| Power | 250 W (max.) |
| Display | LCD（dual color backlight） |
| Sleep mode | idle for 10 min, with temperature at 200℃ |
| °C/°F display | yes |
| Soldering iron | |
| Power | 60 W (max.130 W, DC 18 V) |
| Temperature | 160°C ~ 480°C (320°F-896°F) |
| Tip | 5SI-216N-B (included) |
| Heater | ceramic heater (9SS-988-HT) |
| Desoldering gun | |
| Power | Heater: max. 130 W (DC 18 V) Pump: 50 W |
| Temperature | 160°C ~ 480°C (320°F-896°F) |
| Suction | >600 mm Hg |
| Heater | 4-wire ceramic heater |
| Smoke absorber | |
| Power | 5 W |
| Air volume | 1.0 m3/min |
| Tip cleaner | |
| Power | 2 W (DC18 V) |
| Solder removal | diameter 7 mm |
| Oxide removal | diameter 10 mm |
| Dimensions | 133 mm × 83 mm × 69 mm |
| LED light | |
| Power | 5 W |
| Lumen | About 100 Lm |
| Color temperature | 6000 Kelvin |
| Accessories | |
| Activated carbon filter | 2 pcs. (1 pc. mounted) |
| Filter sponge | 2 pcs. 13 mm diameter and 4 pcs. 16 mm diameter (1 pc. each mounted) |
| Cleaning pins | 3 pcs.: diameter 0.7 mm/0.9 mm/1.2 mm |
| Desoldering gun nozzles | 3 pcs.: diameter 1.0 mm/1.2 mm/1.5 mm |
| Soldering wire reel | diameter 1 mm (10 g) |
| Soldering iron stand | 2-in-1 (with cleaning ball and sponge) |
| General Specifications | |
| Package dimensions | 385 mm × 280 mm × 205 mm |
| Package weight | around 4.5 kg |
Video
Package Contents
- 6 in 1 Multifunction Soldering iron/Desoldering Station Pro'sKit SS-988B — 1 pc.
- Activated Carbon Filter — 2 pcs.
- Filter Sponge — 6 pcs.
- Cleaning Pin — 3 pcs.
- Desoldering Gun Nozzle — 3 pcs.
- Soldering Wire Reel — 1 pc.
- 2-in-1 Soldering Iron Stand (with cleaning ball and sponge) — 1 pc.
Desoldering stations design type:
- Desktop
Desoldering stations gun power:
- 130 W
Desoldering stations soldering iron power:
- 60 W
