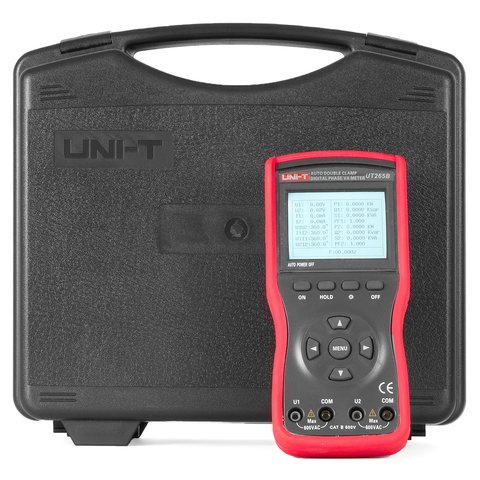

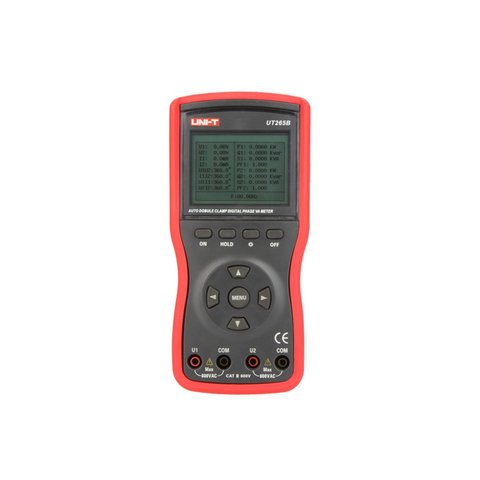

2-phase Digital Clamp Meter UNI-T UT265B
Frequently bought together
UNI-T UT265B is a powerful 2-phase digital clamp meter that is used to measure AC current, AC voltage, frequency, power (active, reactive, apparent), phase angle, and power factor.
Features
- Measurement functions:
- AC current,
- AC voltage,
- frequency,
- power (active, reactive, apparent),
- phase angle,
- power factor.
- Data hold.
- Large backlit LCD.
- Auto range.
- Out-of-range indication..
- Two sets of current clamps are included (black and yellow).
- Auto power off after 15 minutes.
- Low battery indication.
- Around 1500 measurement results can be stored.

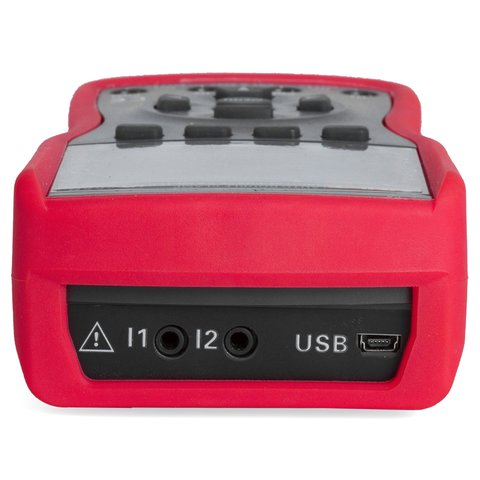

- RS-232 interface.
- Low power consumption (40 mA).
- Anti-vibration, anti-skidding, high-insulation case.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 0.0 mA - 20 A | ±(1.5% + 3) |
| AC Voltage | 0.00 V - 600 V | ±(1.5% + 3) |
| Frequency | 45 Hz - 65 Hz | ±(2.0% + 3) |
| Active Power | 0.0 W - 12 kW | ±(3.0% + 3) |
| Reactive Power | 0.0 VAR - 12 kVAR | ±(3.0% + 3) |
| Apparent Power | 0.0 VA - 12 kVA | ±(3.0% + 3) |
| Power Factor | -1 ~ +1 | ±(0.03) |
| Phase Angle | 0°~360° | ±(1.0°) |
| General Specifications | ||
| Measurement Speed | 2 times/s | |
| Clamp Size | 7,5 mm × 13 mm (optional) / 35 mm × 40 mm (optional) | |
| Input impedance for DCV | ≥ 2 MΩ | |
| Display | LCD, 240 × 160 dots | |

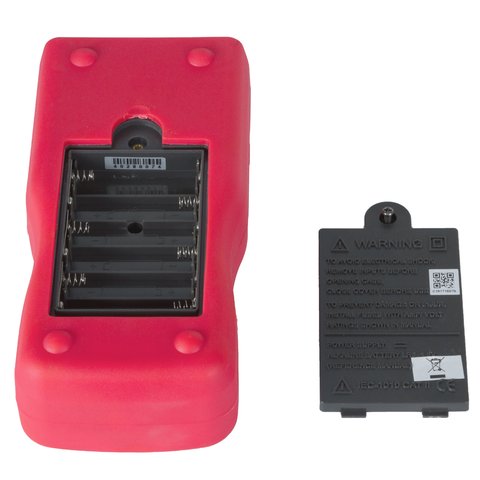

| Power | 6 batteries LR6 (1.5 V) | |
| Dimensions | 196 × 92 × 54 mm | |
| Weight | 550 g | |
User Manual
Download UNI-T UT265B User Manual.
Sofware
Download UNI-T UT265B Sofware.

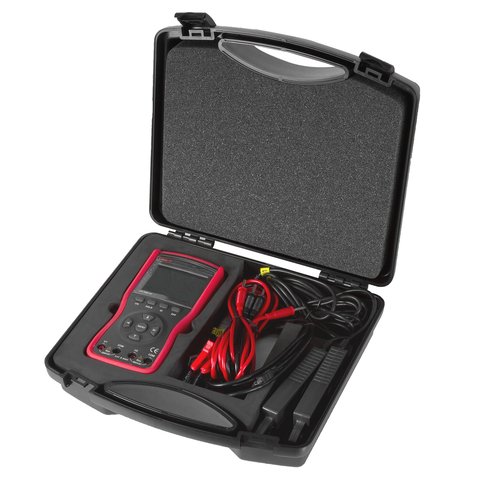

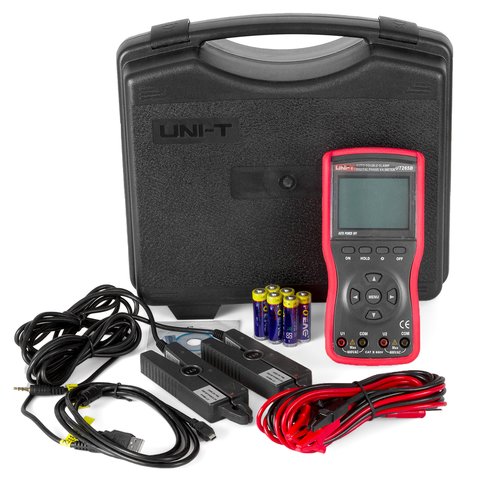

Package Contents
- 2-phase Digital Clamp Meter UNI-T UT265B — 1 pc.
- Current Clamps — 2 pcs.
- Test Leads — 4 pcs.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Clamp meter type:
- For AC
Clamp meter jaw diameter:
- Diameter 7.5 mm
Clamp meter AC voltage:
- Up to 600 V
Clamp meter AC:
- Up to 20 A
Clamp meter capacitance:
- Does not measure the capacitance
Clamp meter DC:
- Does not measure the DC
Clamp meter power:
- Yes
Clamp meter duty cycle:
- No
Clamp meter true RMS:
- No
Clamp meter backlight:
- Yes
Clamp meter PC connection:
- USB
Clamp meter diode test:
- No
Clamp meter analog bar graph:
- No
Clamp meter DC voltage:
- Does not measure the DC voltage
Clamp meter continuity test:
- No
Clamp meter Three-phase voltage measurement:
- No
Clamp meter Three-phase current measurement:
- No
Clamp meter resistance:
- Doesn't measure resistance
Clamp meter frequency:
- Up to 60 Hz
Clamp meter digit capacity:
- Graphic display
Clamp meter NCV:
- No
